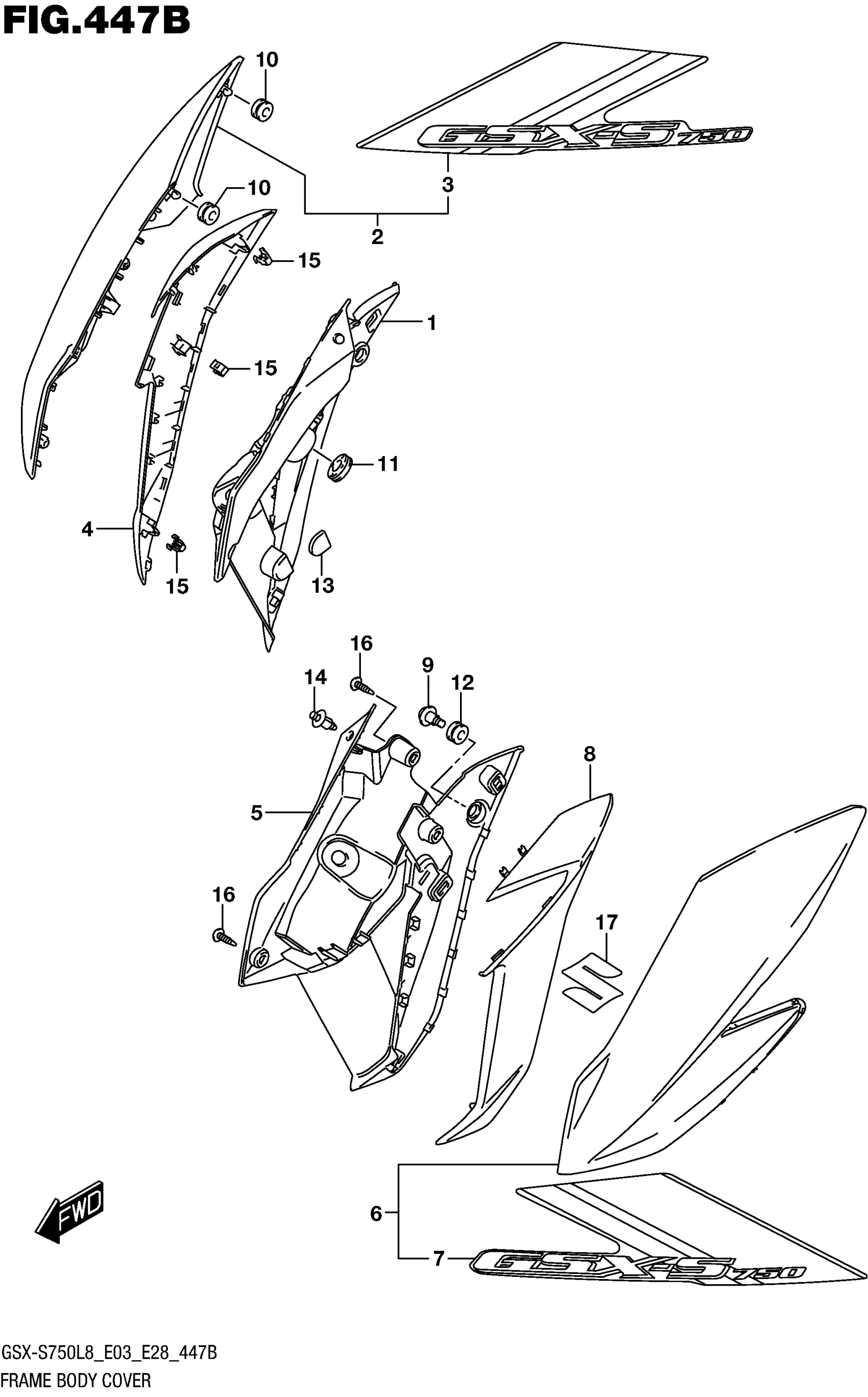

Suzuki GSX-S750AL8 (2018) FRAME BODY COVER (FOR YKV) Diagram

#

Description
Price

1

COVER,FRAME BODY INNER RH

47531-13K00

$63.72

2

COVER, FRAME BODY UPPER RH

47530-13K10-YKV

$119.60

2

(BLACK)

47530-13K10-YKV

$119.60

3

.TAPE, FRAME BODY COVER RH

68135-13K10-BGG

$41.70

4

COVER, FRAME BODY LOWER RH

47533-13K00-YKV

$57.45

4

(BLACK)

47533-13K00-YKV

$57.45

5

COVER,FRAME BODY INNER LH

47541-13K00

$63.72

6

COVER, FRAME BODY UPPER LH

47540-13K10-YKV

$124.17

6

(BLACK)

47540-13K10-YKV

$124.17

7

.TAPE, FRAME BODY COVER LH

68145-13K10-BGG

$29.58

8

COVER, FRAME BODY LOWER LH

47543-13K00-YKV

$41.84

8

(BLACK)

47543-13K00-YKV

$41.84

9

BOLT (6X20)

09139-06190

$3.77

10

CUSHION

09320-06504

$4.47

11

CUSHION

09320-08028

$2.80

12

CUSHION

09320-09016

$1.97

13

CUSHION

09329-18001

$1.89

14

SCREW (BLACK)

09409-06314-5PK

$2.80

15

CLIP

09409-08326

$2.45

16

SCREW

03541-0512A

$1.37

17

EMBLEM,S

68111-47HA0

$37.02
