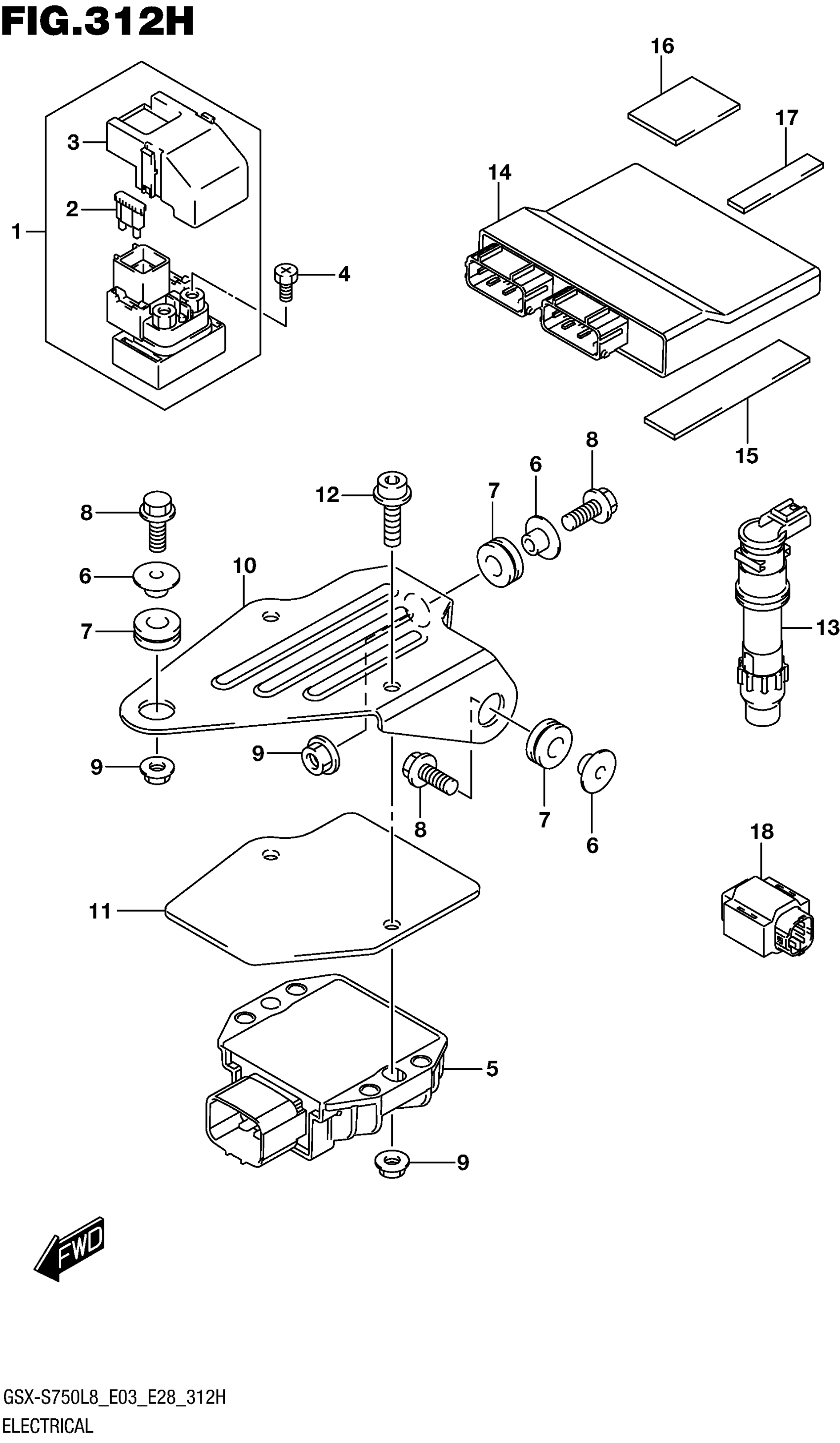

Suzuki GSX-S750AL8 (2018) ELECTRICAL (GSX-S750AZL8 E33) Diagram

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

31800-06G02

$67.32

.FUSE (30A)

09481-30101

$2.26

.COVER

31861-47E00

$16.15

SCREW (6X8)

09128-06013

$1.49

RECTIFIER ASSY

32800-19K01

$260.83

SPACER (6.2X8.4X6.1)

09180-06374

Unavailable

CUSHION (8.4X18X6)

09320-08066

$8.24

SCREW

02162-0620B

$2.28

NUT

08316-1006B

$2.50

BRACKET, RECTIFIER

32830-13K00

Unavailable

PLATE, RECTIFIER

32831-13K00

Unavailable

BOLT

07120-0625B

$3.60

COIL ASSY, IGNITION

33410-47H00

$150.98

CONTROL UNIT, FI

32920-13K50

$1,386.73

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

CUSHION, FI CONTROL UNIT

33652-36100

$2.36

PROTECTOR (80X80X2) | CUT AS REQUIRED This part replaces 33652-38A10.

33652-07D00

$5.64

SENSOR ASSY,FUEL CUT

33960-27G00

$109.88
