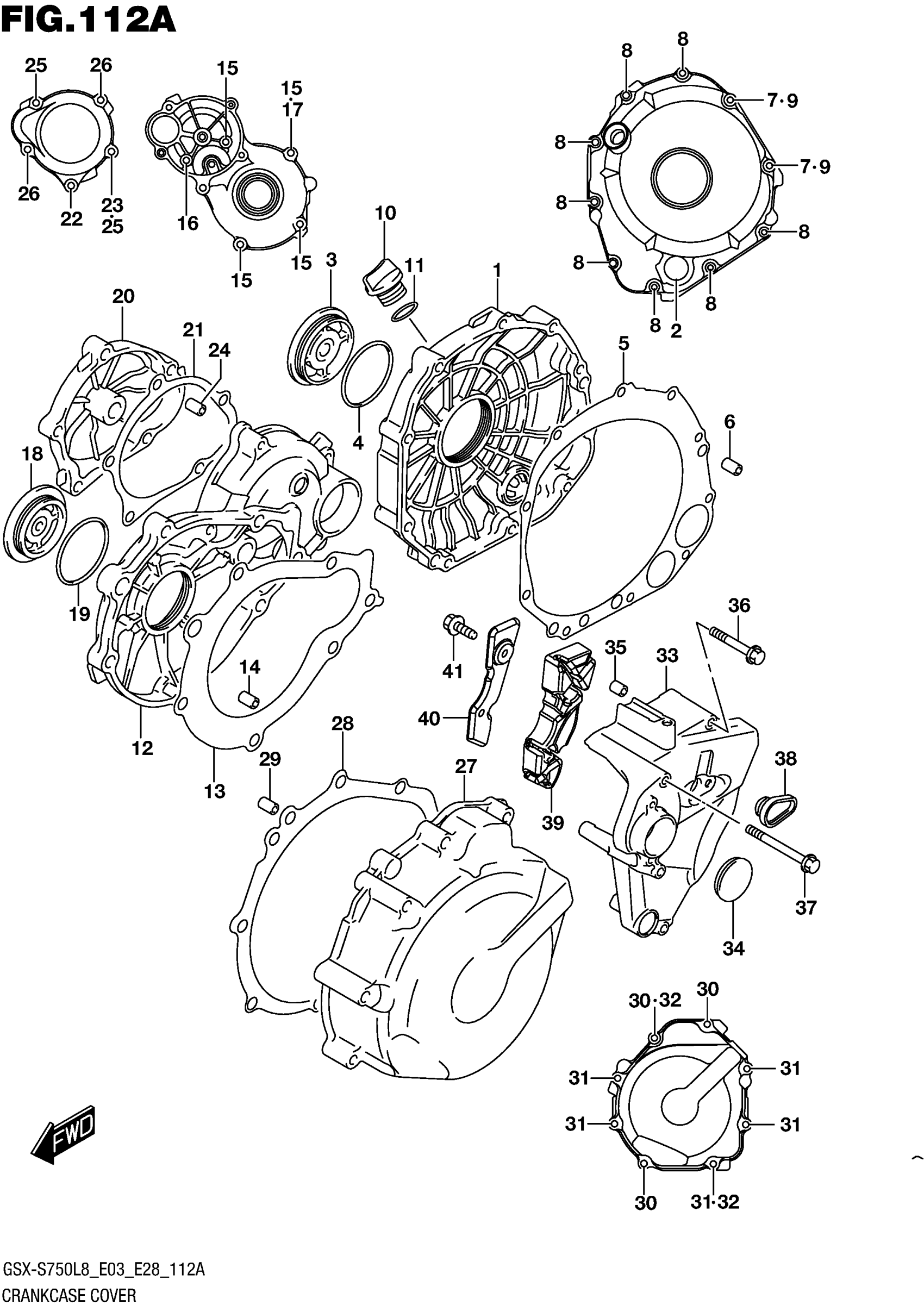

Suzuki GSX-S750AL8 (2018) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-44G10

$287.32

2

.LENS, OIL LEVEL CHECK

11971-33210

$16.66

3

CAP,CLUTCH RELEASE ADJUST

11342-41G10

$22.92

4

O RING

31156-17E00

$4.21

5

GASKET, CLUTCH COVER

11482-40F10

$14.36

6

PIN

04211-09189

$1.64

7

GASKET (5.8X13X1.2)

09168-06023

$2.01

8

BOLT (6X30)

09103-06213

$2.53

9

BOLT (6X40)

09103-06215

$2.80

10

PLUG,ENGINE OIL FILLER

11971-25D00

$4.67

11

O RING (D:3.1,ID:16.8)

09280-17003

$1.64

12

COVER,STARTER CLUTCH

11381-35F10

$287.45

13

GASKET, STARTER CLUTCH COVER

11491-33E02

$7.99

14

PIN

04211-09149

$1.64

15

BOLT (6X25)

09103-06212

$2.53

16

BOLT (6X35)

09103-06214

$2.57

17

GASKET (5.8X13X1.2)

09168-06023

$2.01

18

PLUG

09259-36021

$12.45

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

20

CAP,STRAINER IDLE GEAR

11382-33E10

$71.42

21

GASKET, STARTER IDLE GEAR CAP

11492-33E00

$6.61

22

BOLT (6X55)

09103-06216

$2.80

23

GASKET (5.8X13X1.2)

09168-06023

$2.01

24

PIN

04211-09149

$1.64

25

BOLT (6X25)

09103-06212

$2.53

26

BOLT (6X35)

09103-06214

$2.57

27

COVER,MAGNETO

11351-18G20

$132.18

28

GASKET, MAGNETO COVER

11483-18G00

$10.13

29

PIN

04211-09149

$1.64

30

BOLT (6X30)

09103-06213

$2.53

31

BOLT (6X45)

09103-06224

$2.68

32

GASKET (5.8X13X1.2)

09168-06023

$2.01

33

COVER, ENGINE SPROCKET

11361-08J10

$137.57

34

CAP (OD:36)

09250-30003

$3.52

35

PIN

04211-09129

$1.64

36

BOLT (6X65)

09103-06239

$2.65

37

BOLT (6X95)

09103-06227

$4.53

38

CAP, ENG SPROCKET COVER HOLE

11362-04K00

$8.08

39

DAMPER, ENGINE SPROCKET COVER

11362-13K00

$20.85

40

PLATE, ENGINE SPROCKET COVER

11363-13K00

$11.15

41

BOLT (6X10)

09103-06188

$3.17
