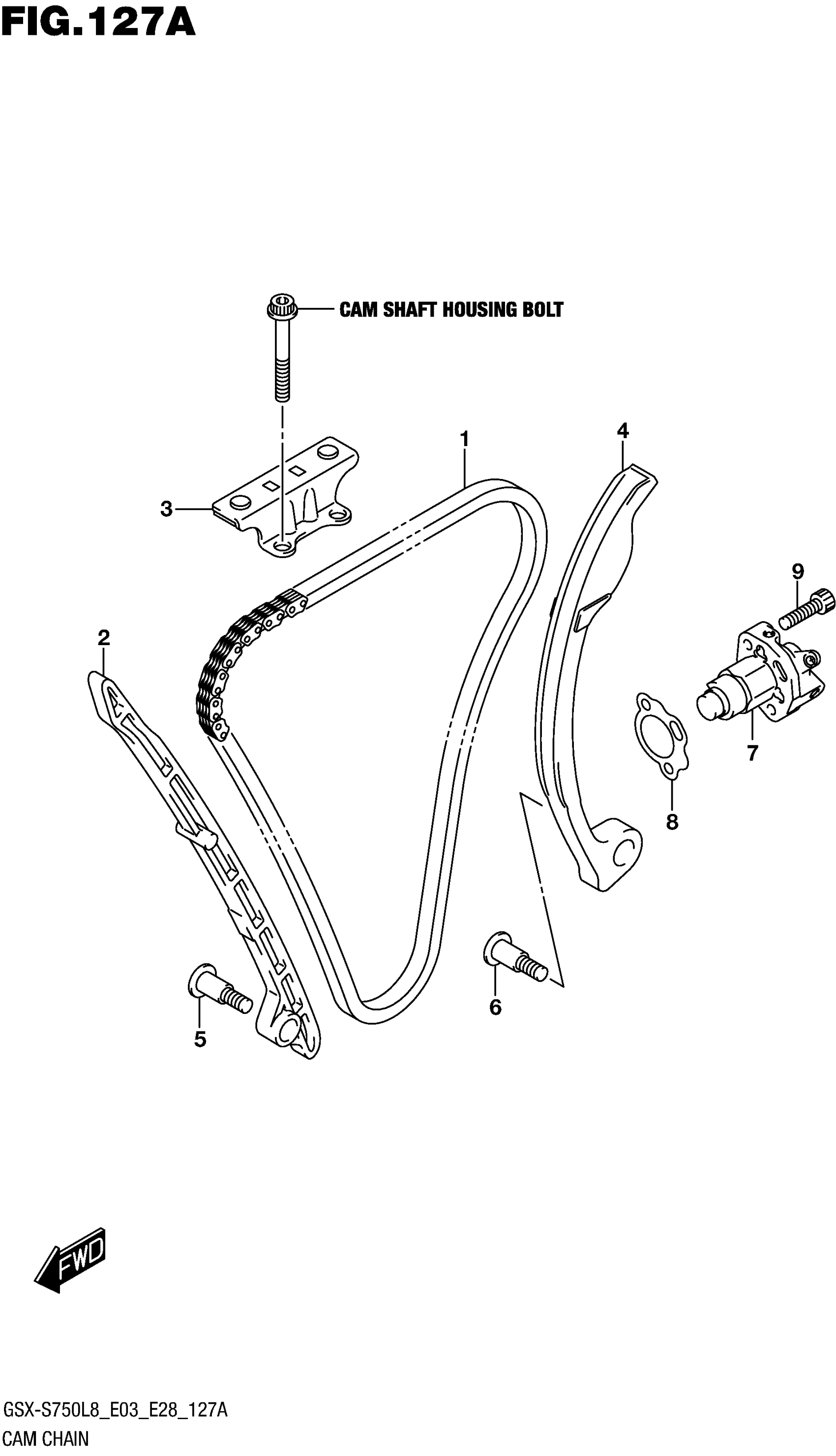

Suzuki GSX-S750AL8 (2018) CAM CHAIN Diagram

#

Description

Price

1

CHAIN, CAM SHAFT DRIVE

12760-35F10

$135.80

2

GUIDE,CAM CHAIN NO.1

12771-30G00

$43.50

3

GUIDE,CAM CHAIN NO.2 This part replaces 12782-35F10.

12782-35F11

$21.47

4

TENSIONER, CAM CHAIN

12811-08J00

Unavailable

5

BOLT, TENSIONER & GUIDE

12812-26B02

$9.53

6

BOLT, CAN CHAIN TENSIONER

12812-31G00

$4.19

7

ADJUSTER ASSY,TENSIONER

12830-37H00

$240.24

8

GASKET, TENSIONER ADJUSTER

12837-02H00

$5.91

9

BOLT (6X25)

07130-0625A

$2.64
