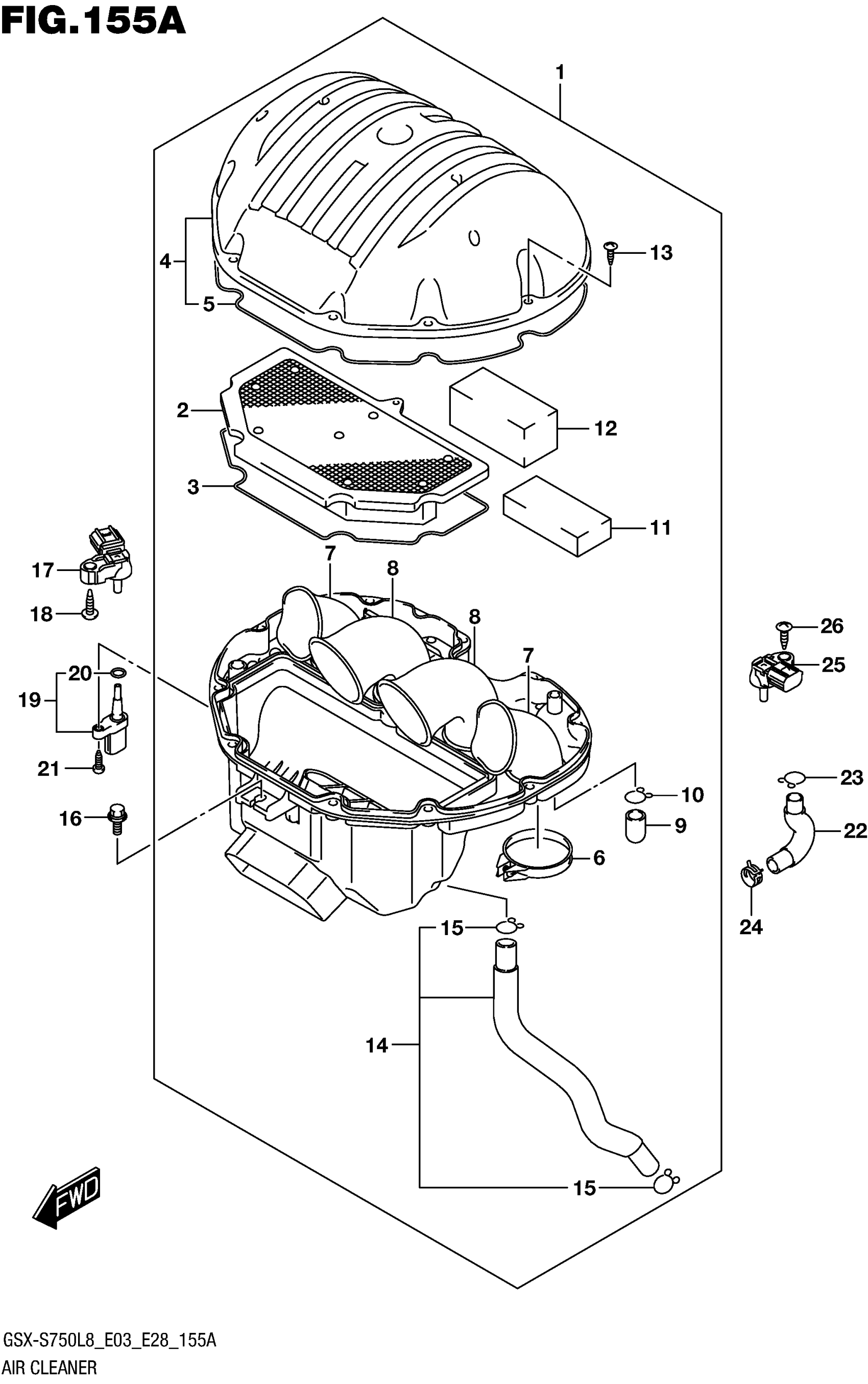

Suzuki GSX-S750AL8 (2018) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-13K00

Unavailable

2

.FILTER ASSY This part replaces 13780-44G00.

13780-44G01

$35.84

3

.GASKET, CASE

13756-44G00

$5.58

4

.CAP

13740-08J00

Unavailable

5

..GASKET, CAP

13746-08J00

$7.52

6

.CLAMP

13170-25D01

$6.60

7

.TUBE, OUTLET A

13881-08J01

$43.33

8

.TUBE, OUTLET B

13882-08J01

$48.77

9

.PLUG

13859-41B10

$7.38

10

.CLIP

09401-14101

$2.34

11

.FILTER, BREATHER A

13788-08J00

$5.95

12

.FILTER, BREATHER B

13789-08J00

$8.38

13

SCREW

03541-0520A

$1.80

14

.TUBE, BREATHER

13850-13K00

Unavailable

15

..CLIP

09401-14101

$2.34

16

BOLT (6X16)

09116-06130

$2.28

17

SENSOR,BOOST

18590-18K00

$315.08

18

SCREW

03541-0525B

$2.32

19

SENSOR, AIR TEMPERATURE

13650-41F10

$63.25

20

O-RING

13655-41F10

Unavailable

21

SCREW

03511-0516A

$1.86

22

HOSE,ISC VALVE

13697-08J00

Unavailable

23

CLIP

09401-15101

$2.26

24

CLIP

09401-16407

$2.44

25

SENSOR,BOOST

18590-18K00

$315.08

26

SCREW

03541-0525B

$2.32
