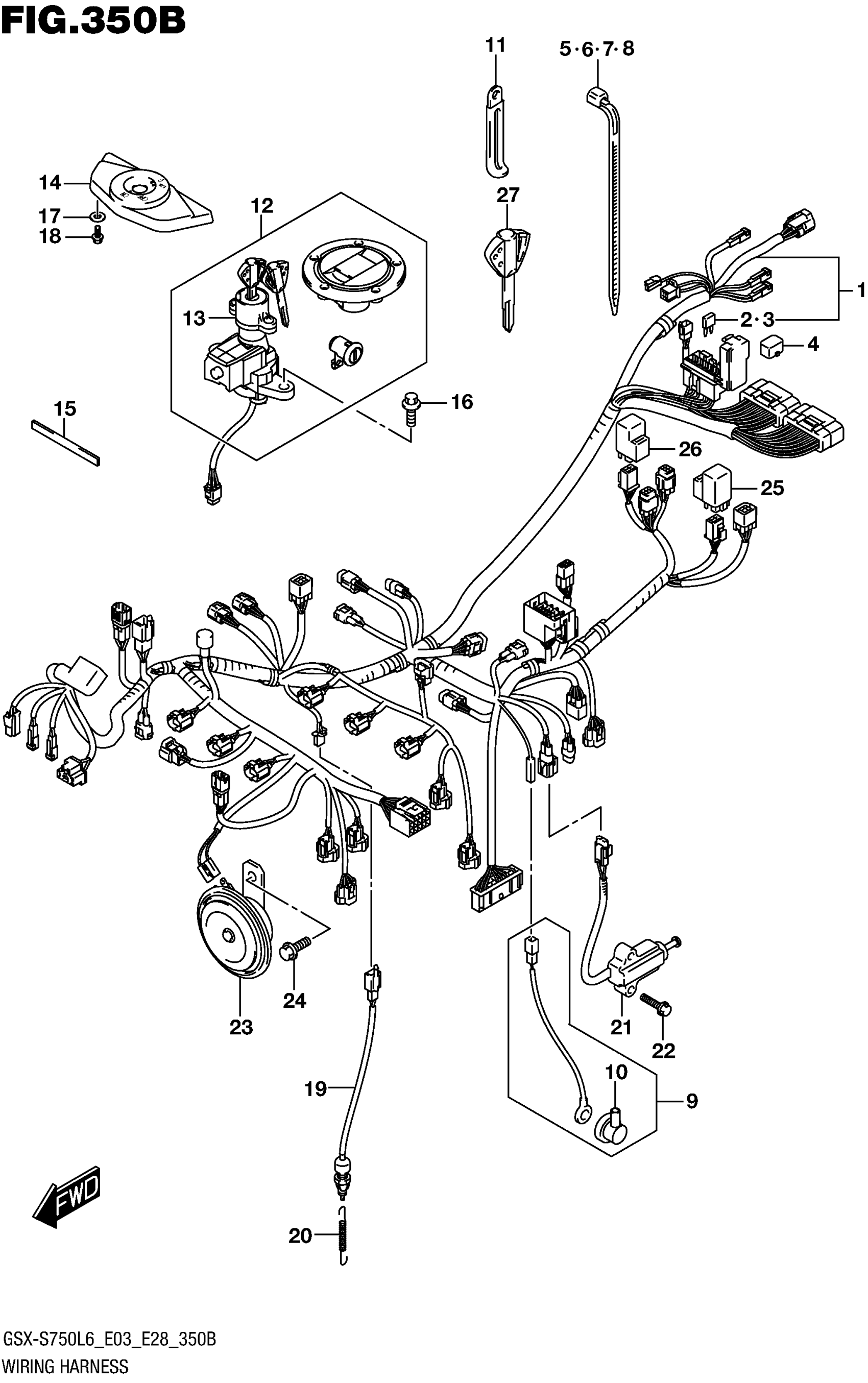

Suzuki GSX-S750AL6 (2016) WIRING HARNESS (GSX-S750AL6 E28) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-08JH0

Unavailable

2

.FUSE (10A)

09481-10501

$2.06

3

.FUSE (15A)

09481-15501

$2.02

4

CAP,TS This part replaces 36654-06J30.

36654-06J31

$14.53

5

CLAMP (L:145)

09407-14407

$3.57

6

CLAMP (L:125)

09407-14403

$2.26

7

CLAMP (L:165)

09407-18402

$2.19

8

CLAMP (L:190)

09407-19401

$3.05

9

WIRE, OIL PRESSURE SWITCH LEA

36851-44G01

$17.47

10

.CAP, OIL PRESSURE SWITCH

36618-31J00

Unavailable

11

CLAMP (L:45)

09404-06429

$1.83

12

LOCK SET This part replaces 37101-44810.

37101-44813

$352.43

13

LOCK ASSY,STEER This part replaces 37100-44G20.

37100-44G21

$230.33

14

ANTENNA ASSY, IMMOBILIZER

37180-44G20

$64.87

15

PROTECTOR, IGNITION SWITCH

37187-44G00

Unavailable

16

BOLT, STEERING LOCK (8X20) This part replaces 09119-08100.

37152-17K00

$3.68

17

WASHER (5.5X16X1.2)

09160-05037

$1.49

18

BOLT

01550-0510A

$2.43

19

SWITCH ASSY, STOP LAMP

37740-45D00

$18.27

20

SPRING

09443-06012

$3.16

21

SWITCH ASSY,SIDE STAND This part replaces 37840-35F00.

37840-35F02

$56.65

22

BOLT

01550-0620A

$1.97

23

HORN ASSY

38500-16G01

$87.70

24

BOLT (8X12)

01550-0812A

$2.32

25

RELAY ASSY | FOR FUEL PUMP

38740-24X50

$45.20

26

RELAY ASSY | FOR FAN MOTOR

38740-24X50

$45.20

27

KEY,BLANK (IMMOBI) | OPT

37146-41G00

$43.04
