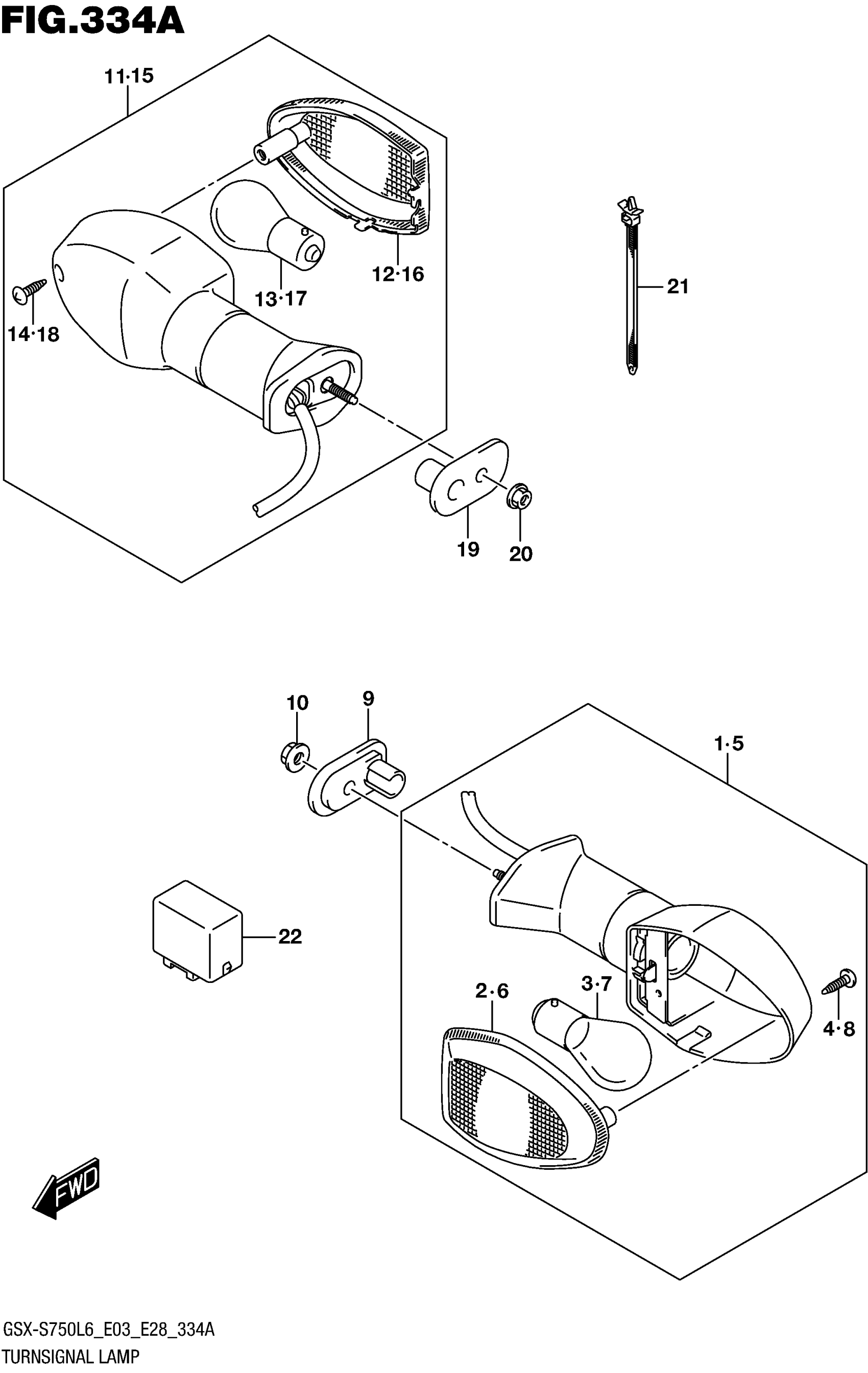

Suzuki GSX-S750AL6 (2016) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL R

35601-08J01

$107.67

2

.LENS

35612-08J01

$13.82

3

.BULB (12V,21W)

09471-12045

$2.95

4

.SCREW

03211-0414B

$1.93

5

LAMP ASSY, FRONT TURNSIGNAL L

35602-08J01

$105.63

6

.LENS

35632-08J01

$13.65

7

.BULB (12V,21W)

09471-12045

$2.95

8

.SCREW

03211-0414B

$1.93

9

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

10

NUT

08316-1005A

$2.19

11

LAMP ASSY, REAR TURNSIGNAL RH

35603-08J01

$120.15

12

.LENS

35632-08J01

$13.65

13

.BULB (12V,21W)

09471-12045

$2.95

14

.SCREW

03211-0414B

$1.93

15

LAMP ASSY, REAR TURNSIGNAL LH

35604-08J01

$120.15

16

.LENS

35612-08J01

$13.82

17

.BULB (12V,21W)

09471-12045

$2.95

18

.SCREW

03211-0414B

$1.93

19

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

20

NUT

08316-1005A

$2.19

21

CLAMP (L:90)

09407-11402

$1.81

22

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
