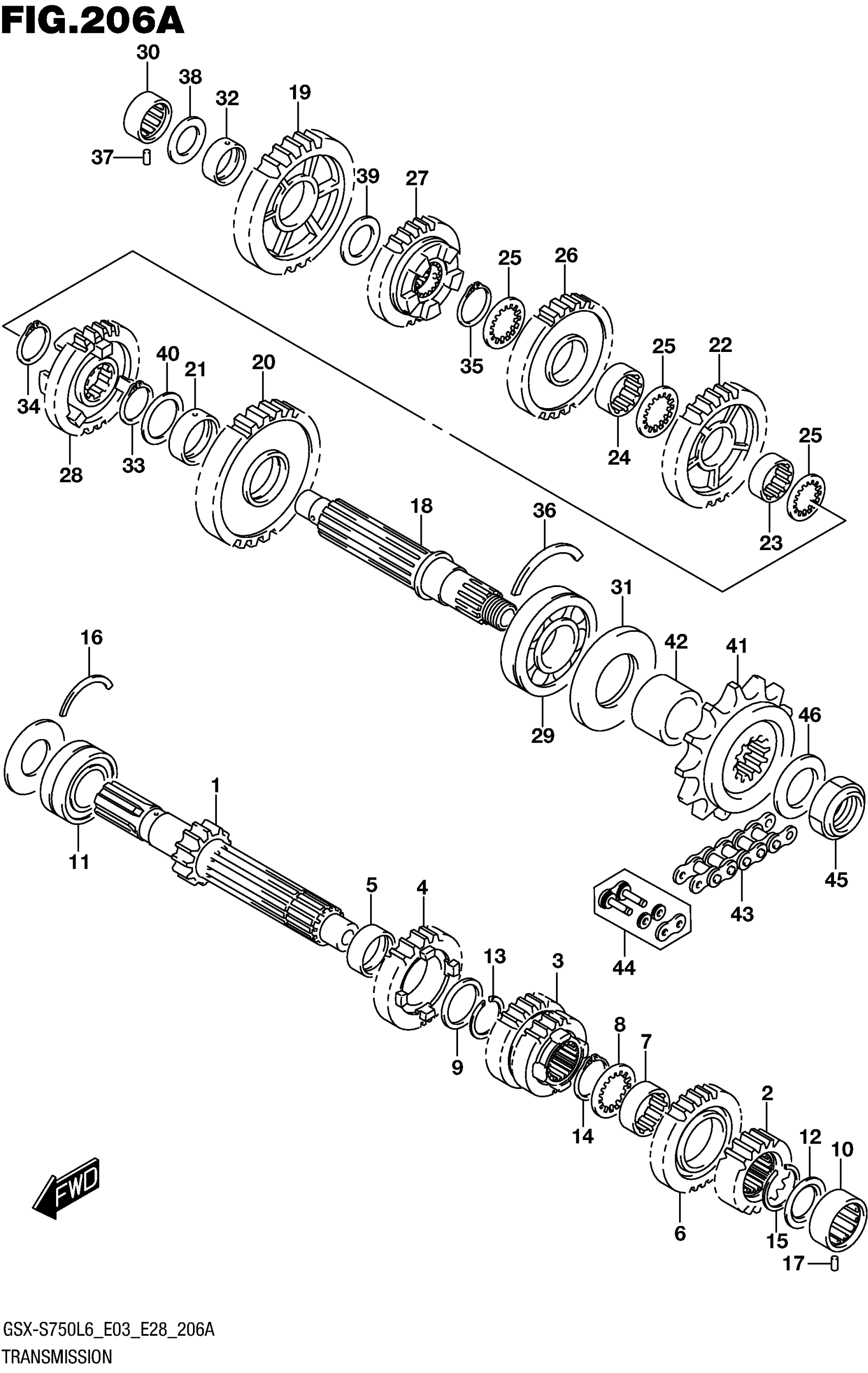

Suzuki GSX-S750AL6 (2016) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:14)

24120-35F20

$285.97

2

GEAR,2ND DRIVE (NT:19)

24221-35F00

$117.48

3

GEAR,3RD & 4TH DRIVE This part replaces 24231-35F01.

24231-35F20

$142.07

3

GEAR,3RD & 4TH DRIVE This part replaces 24231-35F01.

24231-35F20

$142.07

4

GEAR, 5TH DRIVE (NT:23)

24251-35F21

$161.35

5

BUSH 5TH DRIVE GEAR

24252-35F00

$24.72

6

GEAR, 6TH DRIVE (NT:22)

24261-35F02

$158.33

7

BUSH, 6TH DRIVE GEAR

24262-35F10

$28.70

8

LOCK WASHER

09167-27003

$6.80

9

SHIM (27X36X2.5)

09181-27014

$6.32

10

BEARING (20X34X13.5) | LH

09263-20087

$42.65

11

BEARING (25X52X20.6) | RH

09267-25013

$106.33

12

OIL SEAL (20X31.2X2.7)

09285-20006

$6.51

13

CIRCLIP

09380-27006

$2.73

14

CIRCLIP

09380-27006

$2.73

15

CIRCLIP

09380-27004

$3.70

16

C RING | RH

09390-58001

$3.42

17

PIN (6X10) | LH

09261-06003

$1.49

18

SHAFT, DRIVE

24131-35F01

$316.32

19

GEAR,1ST DRIVEN (NT:39)

24311-35F20

$160.78

20

GEAR,2ND DRIVEN (NT:39)

24321-35F11

$135.95

21

BUSH, 2ND DRIVEN GEAR

24322-35F00

$20.63

22

GEAR,3RD DRIVEN (NT:37)

24331-35F10

$166.88

23

BUSH, 3RD DRIVEN GEAR

24332-35F00

$28.62

24

BUSH, 4TH DRIVEN GEAR

24332-35F00

$28.62

25

WASHER, 3RD & 4TH DRIVEN GEAR

24333-02F00

$4.99

26

GEAR,4TH DRIVEN (NT:29)

24341-35F10

$171.00

27

GEAR,5TH DRIVEN (NT:30)

24351-35F10

$166.88

28

GEAR, 6TH DRIVEN (NT:26)

24361-35F10

$171.00

29

BEARING (28X70X18) | LH

09262-28025

$150.62

30

BEARING (20X34X13.5) | RH

09263-20087

$42.65

31

OIL SEAL (34.8X70X6)

09283-36008

$21.28

32

BUSH (22X26X9)

09300-22008

$14.82

33

CIRCLIP

09380-27006

$2.73

34

CIRCLIP

09380-27006

$2.73

35

CIRCLIP

09380-27006

$2.73

36

C RING | LH

09390-70001

$9.77

37

PIN (6X10) | RH

09261-06003

$1.49

38

SHIM (20X34X1)

09181-20251

$2.79

39

SHIM (22X34X1)

09181-22223

$3.12

40

WASHER (27X36X1)

09160-27008

$3.68

41

SPROCKET,ENGINE This part replaces 27510-20A20.

27510-20A22

$78.92

42

SPACER,ENGINE SPROCKET

27531-35F01

$30.85

43

CHAIN ASSY (RK 525SM8)

27600-06G40-112

$220.08

44

.JOINT SET,DRIVE CHAIN

27620-06G40

$21.10

45

NUT

09159-20004

$15.67

46

WASHER (25X41X3)

09160-25009

$5.36
