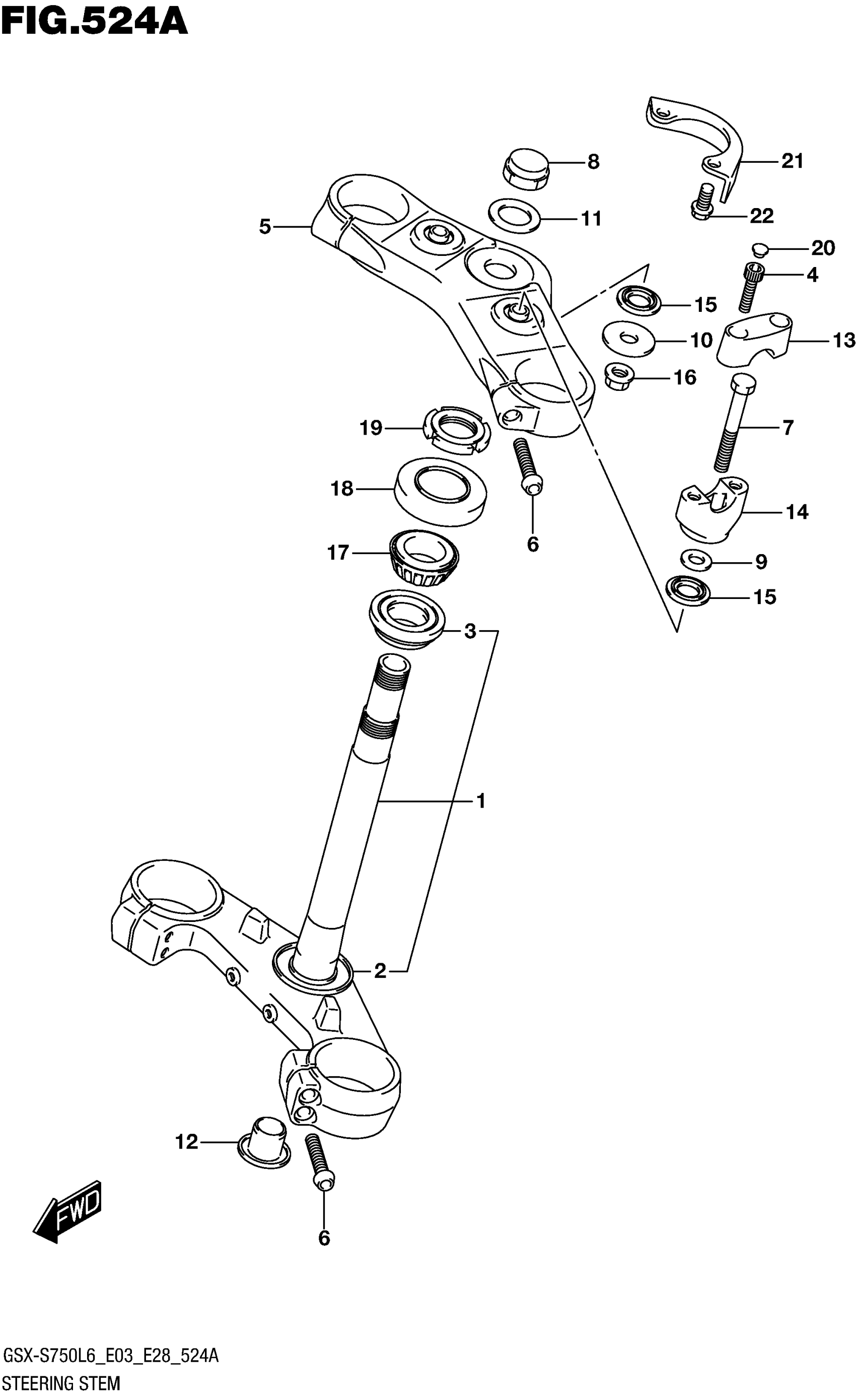

Suzuki GSX-S750AL6 (2016) STEERING STEM Diagram

#

Description
Price

1

BRACKET, UNDER

51410-08J00-291

$604.58

1

(BLACK)

51410-08J00-291

$604.58

2

.SEAL, STEERING LOWER

51644-12C00

$9.44

3

.BEARING (30X55X17)

09265-30020

$44.41

4

BOLT

51147-17H00

$5.63

5

BRACKET, UPPER

51311-08J00-291

$452.68

5

(BLACK)

51311-08J00-291

$452.68

6

BOLT (8X40)

51166-40H20

$6.35

7

BOLT

51321-17H10

$6.22

8

NUT, CAP

51353-24B00

$30.67

9

WASHER

51354-17H00

$3.70

10

WASHER

51355-16G00

$5.77

11

WASHER

51356-10D03

$7.50

12

CAP

51482-26F00

$5.15

13

HOLDER, HANDLE

56211-08J00-291

$161.28

13

(BLACK)

56211-08J00-291

$161.28

14

HOLDER, HANDLE

56221-08J00-291

Unavailable

14

(BLACK)

56221-08J00-291

Unavailable

15

HOLDER RUBBER,HANDLE

56245-08J00

$6.34

16

NUT

08319-3110A

$2.73

17

BEARING (25X47X15)

09265-25038

$45.57

18

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

19

NUT, STEERING STEM

51631-31F00

$19.87

20

CAP (OD:11)

09250-06011

$2.50

21

PLATE,STEERING LOCK

51911-08J01

$18.53

22

BOLT (8X16)

09103-08351

$3.23
