Description

Price

1

WHEEL, REAR (17M/CXMT5.50)

64111-44G00-019

$1,245.27

1

(BLACK)

64111-44G00-019

$1,245.27

2

SPACER,RR WHEEL BEARING

64731-44G00

$51.33

3

BEARING (25X52X15)

09262-25061

$33.12

4

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

$7.85

5

DISC,RR BRAKE

69211-38G00

$303.38

6

BOLT (8X21)

09106-08160

$3.57

7

AXLE, REAR

64711-08J00

$161.28

8

NUT

09159-22007

$19.20

9

WASHER (22X46X3) | LH

09160-22086

$5.53

10

WASHER (25.5X46X3) | RH

09160-25082

Unavailable

11

SPACER,RR AXLE,R

64741-44G00

$29.87

12

SPACER,REAR AXLE LH

64751-08J00

$33.30

13

DRUM,RR SPROCKET

64610-35F30

$327.08

14

RETAINER, REAR SPROCKET DRUM

64733-44G00

$29.15

15

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

$39.40

16

OIL SEAL (39X65X7)

09285-39001

$10.62

17

ABSORBER,RR HUB SHOCK

64651-35F30

$44.48

18

SPROCKET, REAR (NT:42)

64511-35F10

$89.72

19

NUT

08319-3110A

$2.73

20

TIRE, REAR (180/55ZR17M/C 73W

65110-08J00

Unavailable

21

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

22-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$8.60

22-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$10.07

22-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$11.47

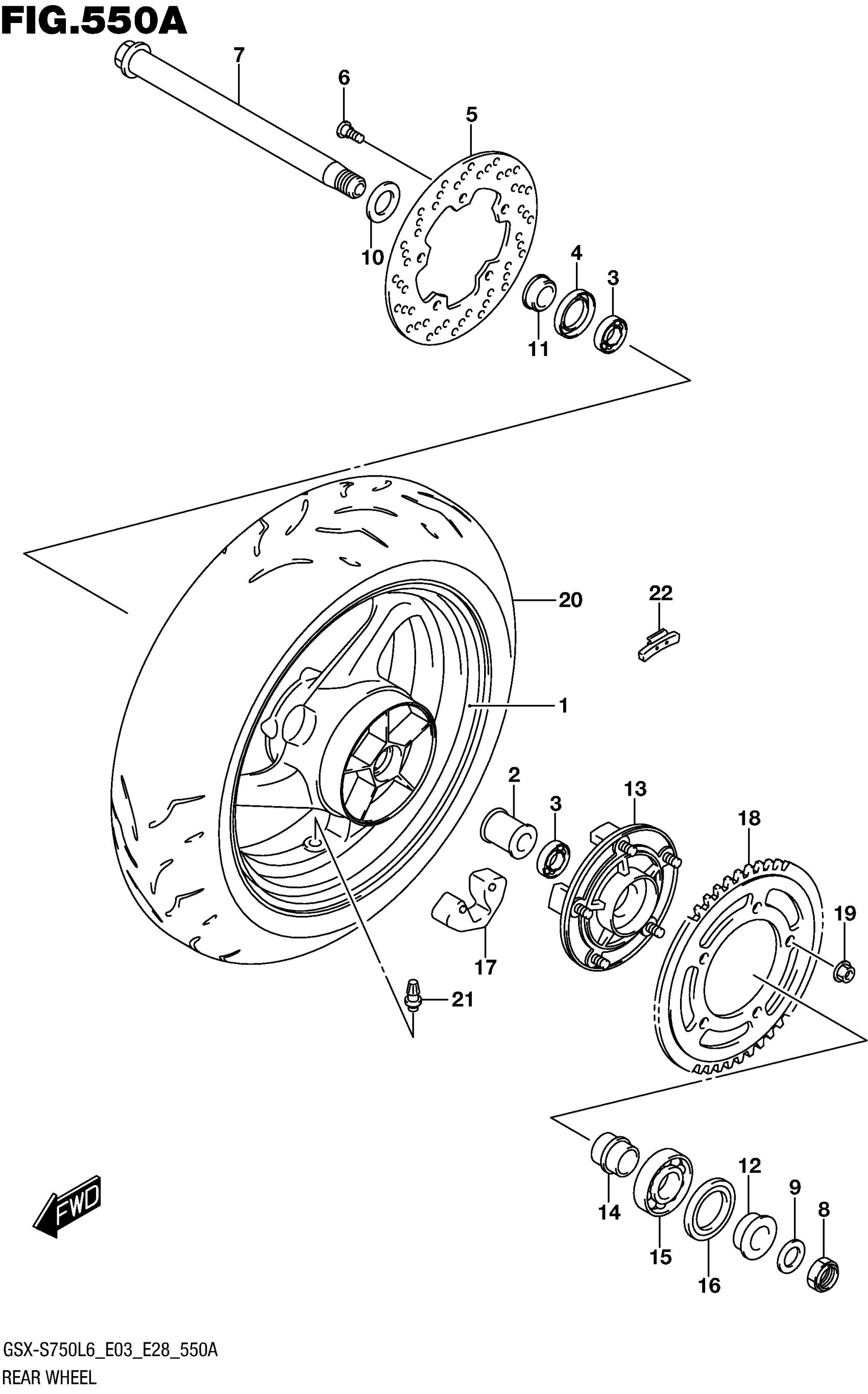

Suzuki GSX-S750AL6 (2016) REAR WHEEL (GSX-S750L6 E03) Diagram
