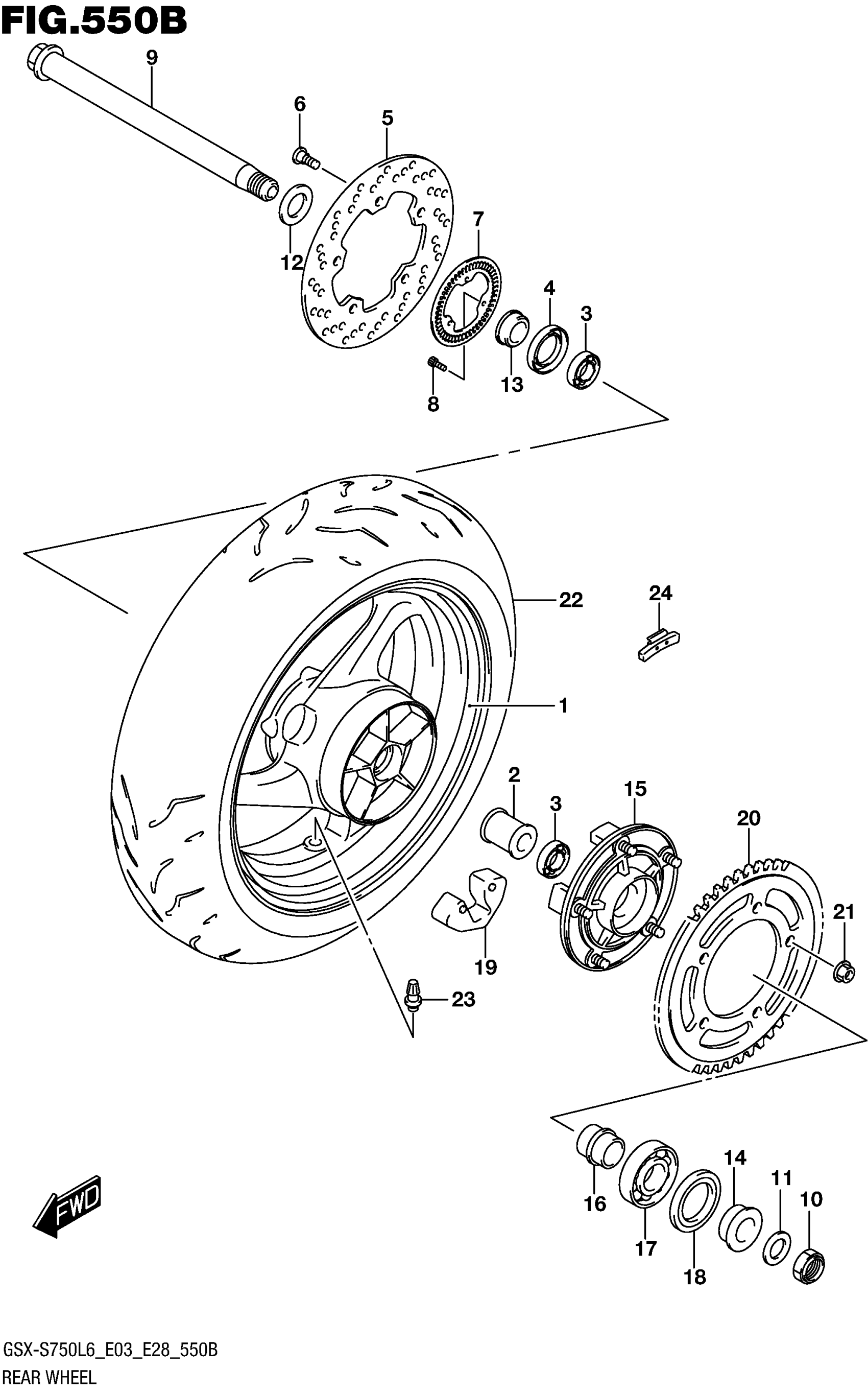

Suzuki GSX-S750AL6 (2016) REAR WHEEL (GSX-S750AL6 E28) Diagram

#

Description
Price

1

WHEEL, REAR (17M/CXMT5.50)

64111-44G10-019

Unavailable

1

(BLACK)

64111-44G10-019

Unavailable

2

SPACER,RR WHEEL BEARING

64731-44G00

$57.93

3

BEARING (25X52X15)

09262-25061

$29.88

4

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

$7.19

5

DISC,RR BRAKE

69211-38G00

$337.60

6

BOLT (8X21)

09106-08160

$3.22

7

RING, SPEED SENSOR REAR

54162-27G00

$158.17

8

BOLT

07130-0512A

$2.19

9

AXLE, REAR

64711-08J00

$179.48

10

NUT

09159-22007

$17.33

11

WASHER (22X46X3) | LH

09160-22086

$6.02

12

WASHER (25.5X46X3) | RH

09160-25082

Unavailable

13

SPACER,RR AXLE,R

64741-44G00

$33.72

14

SPACER,REAR AXLE LH

64751-08J00

$37.58

15

DRUM,RR SPROCKET

64610-35F30

$363.98

16

RETAINER, REAR SPROCKET DRUM

64733-44G00

$27.45

17

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

$35.55

18

OIL SEAL (39X65X7)

09285-39001

$9.58

19

ABSORBER,RR HUB SHOCK

64651-35F30

$50.20

20

SPROCKET, REAR (NT:42)

64511-35F10

$100.78

21

NUT

08319-3110A

$2.73

22

TIRE, REAR (180/55ZR17M/C 73W

65110-08J00

Unavailable

23

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

24-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$9.70

24-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$11.37

24-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$12.93
