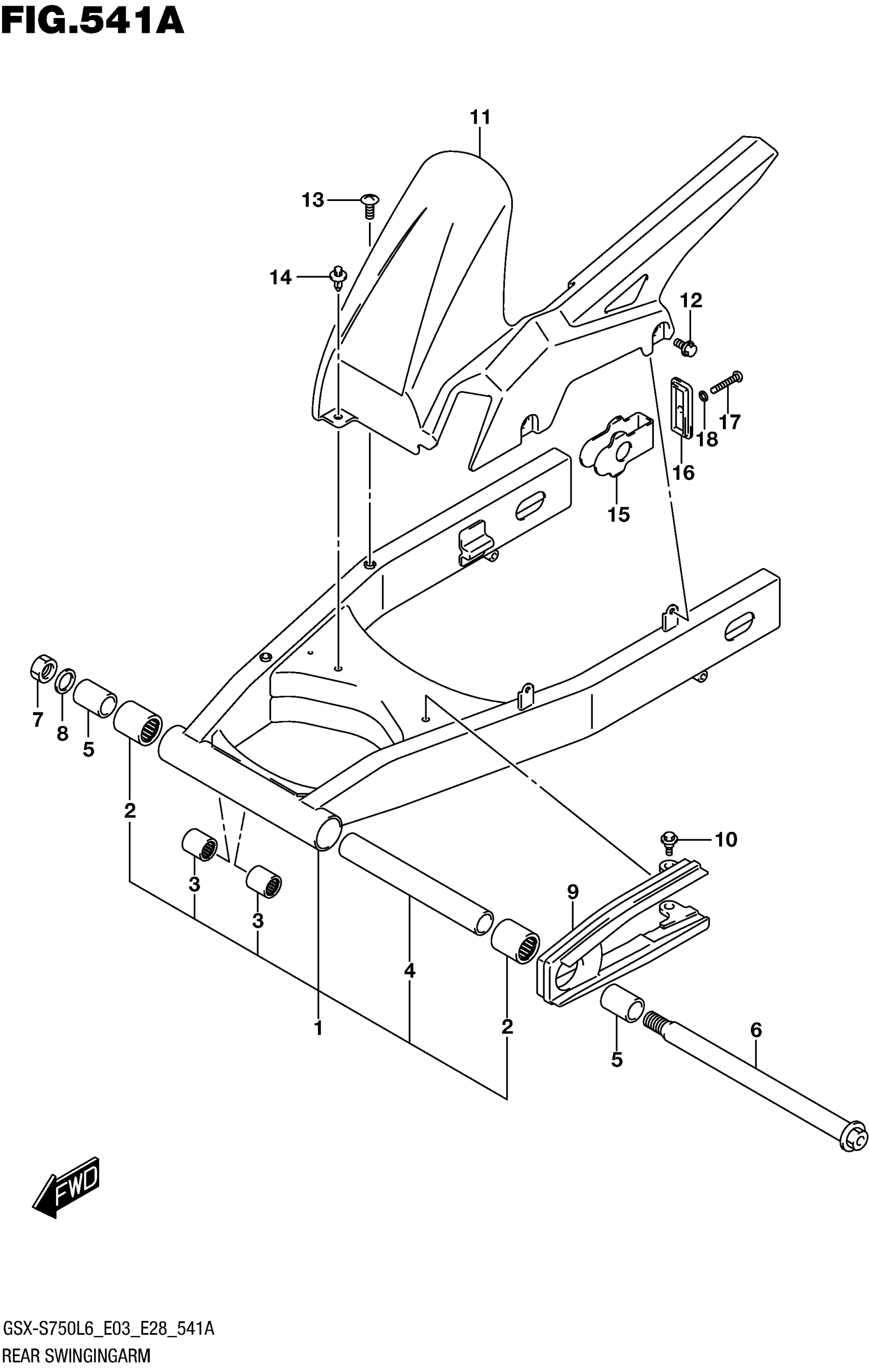

Suzuki GSX-S750AL6 (2016) REAR SWINGINGARM Diagram

SWINGINGARM ASS This part replaces 61000-08J00-YAP.

61000-08J01-YAP

$933.63

SWINGINGARM ASS This part replaces 61000-08J00-YAP.

61000-08J01-YAP

$933.63

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

$30.93

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

.SPACER,RR SWGARM PIVOT CTR

61282-17C00

$28.42

SPACER, PIVOT

61251-21E00

$30.05

SHAFT, PIVOT

61211-31E00

$128.72

NUT

09159-18007

$19.68

WASHER (18.5X28X2.6)

09160-18030

$2.56

BUFFER, CHAIN TOUCH DEFENSE

61273-08J00

Unavailable

BOLT (6X17.8)

09111-06072

$2.03

CASE, CHAIN

61310-08J00

$132.63

BOLT (6X12)

09111-06107

$2.60

SCREW

02142-0616A

$1.49

CLIP (BLACK)

09409-08308-5ES

$1.97

ADJUSTER, CHAIN

61410-08J10

$30.28

PLATE, CHAIN ADJUSTER GUIDE

61421-08J00

$28.45

BOLT (8X50)

09106-08119

$4.04

WASHER

09164-08015

$3.21
