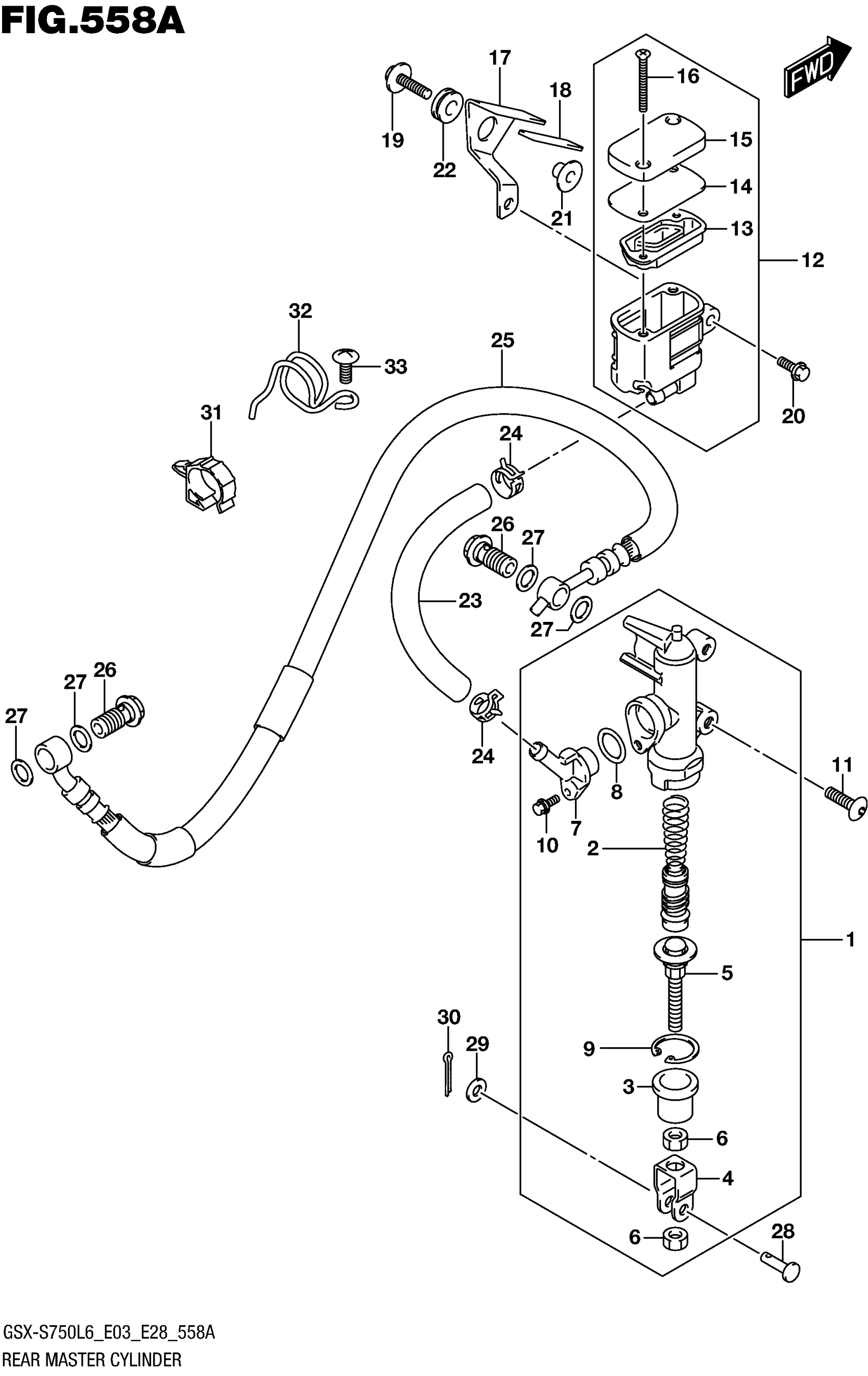

Suzuki GSX-S750AL6 (2016) REAR MASTER CYLINDER (GSX-S750L6 E03) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-08J00

$275.15

2

.PISTON/CAP SET

69600-34810

$56.48

3

.BOOT

69691-00A00

$5.30

4

.YOKE

69692-44H00

$16.87

5

.ROD, PUSH

69670-27A30

$26.23

6

.NUT

69693-05A00

$1.96

7

.CONNECTOR

69672-08J10

$8.17

8

.O RING

69686-34200

$2.93

9

.CIRCLIP

69665-47H00

$5.02

10

.SCREW

02112-7412A

$2.12

11

SCREW (6X20)

09139-06028

$3.70

12

TANK ASSY,RESERVOIR This part replaces 69740-01H10.

69740-18K00

$28.10

13

.DIAPHRAGM

69667-01H00

$6.30

14

.PLATE, DIAPHRAGM

69668-01H00

$5.98

15

.CAP

69669-01H00

Unavailable

16

.SCREW

69689-01H00

$4.45

17

BRACKET, REAR RESERVOIR TANK

69750-08J00

Unavailable

18

CUSHION, BRACKET NO.2

69752-08J00

Unavailable

19

BOLT (6X25)

09116-06202

$3.49

20

BOLT

01547-0612A

$2.03

21

SPACER (6.2X8.4X6.9)

09180-06325

$3.79

22

CUSHION (8.4X18X6)

09320-08066

$8.24

23

HOSE,RR RESERVOIR TANK

69731-08J00

$18.80

24

CLIP

09401-12404

$2.34

25

HOSE This part replaces 69480-08J00.

69480-08J01

$81.45

26

UNION

09360-10062

$6.43

27

WASHER (10X15X1.5)

09161-10009

$1.84

28

PIN (6X18.2)

09200-06068

$4.11

29

WASHER

08322-0106A

$1.84

30

COTTER PIN

04111-2015A

$1.49

31

CLAMP

09403-17306

$2.62

32

GUIDE, REAR BRAKE HOSE

61196-08J00

Unavailable

33

SCREW

02142-0616A

$1.49
