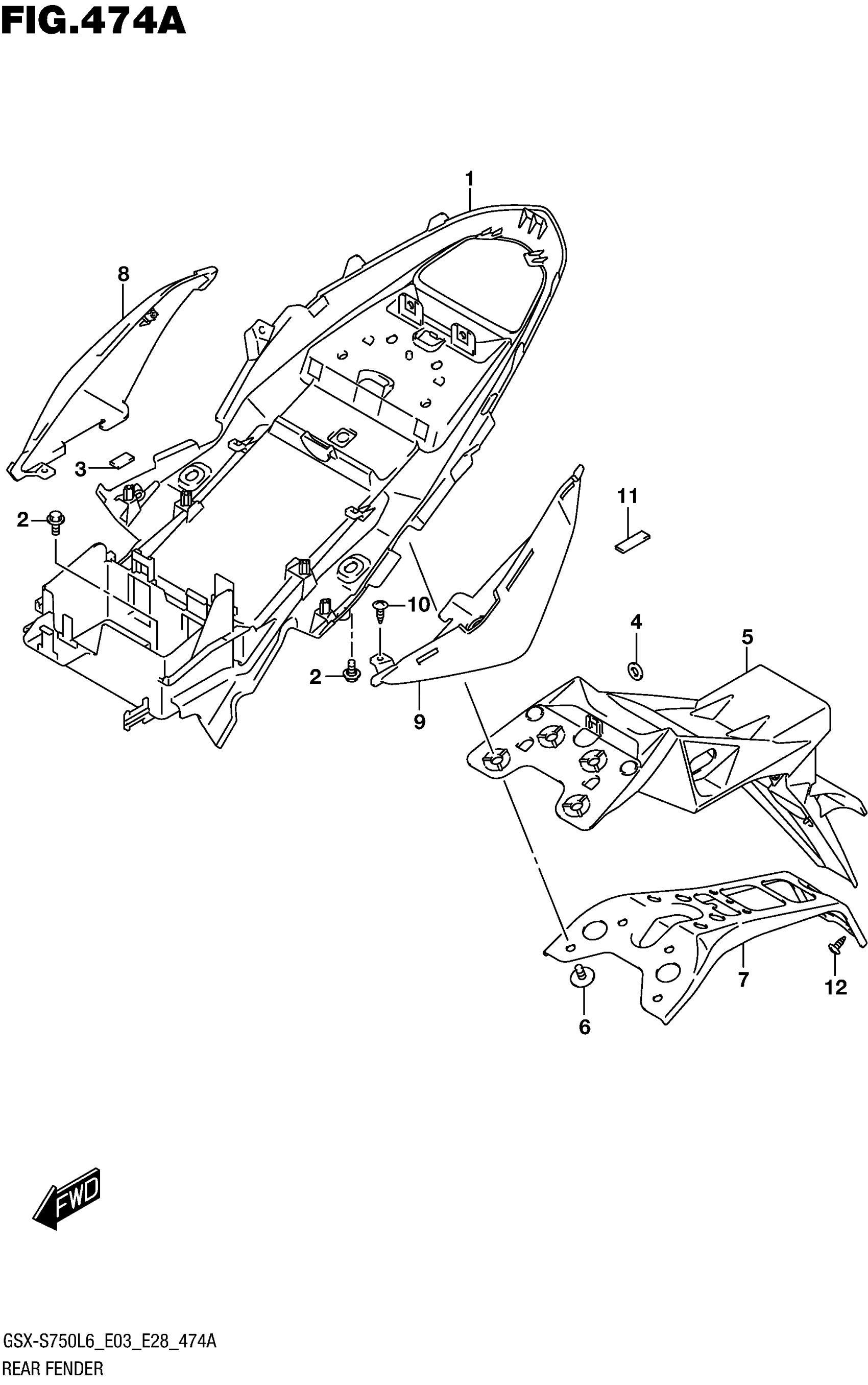

Suzuki GSX-S750AL6 (2016) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR FRONT

63111-08J00

$127.82

2

BOLT (6X12)

09111-06107

$2.60

3

CUSHION | CUT AS REQUIRED

44612-13600

$4.65

4

WASHER (6.5X20X1.2)

09160-06077

$1.91

5

FENDER, REAR REAR

63113-08J10

Unavailable

6

BOLT (6X16)

09116-06168

$2.50

7

BRACKET, REAR FENDER REAR

63131-08J00

Unavailable

8

COVER, REAR FENDER RH

63171-08J00

$15.70

9

COVER, REAR FENDER LH

63181-08J00

$15.70

10

SCREW

03541-0516A

$1.49

11

TAPE, REAR FENDER

94443-06G00

$3.25

12

SCREW

03541-0616A

$2.02
