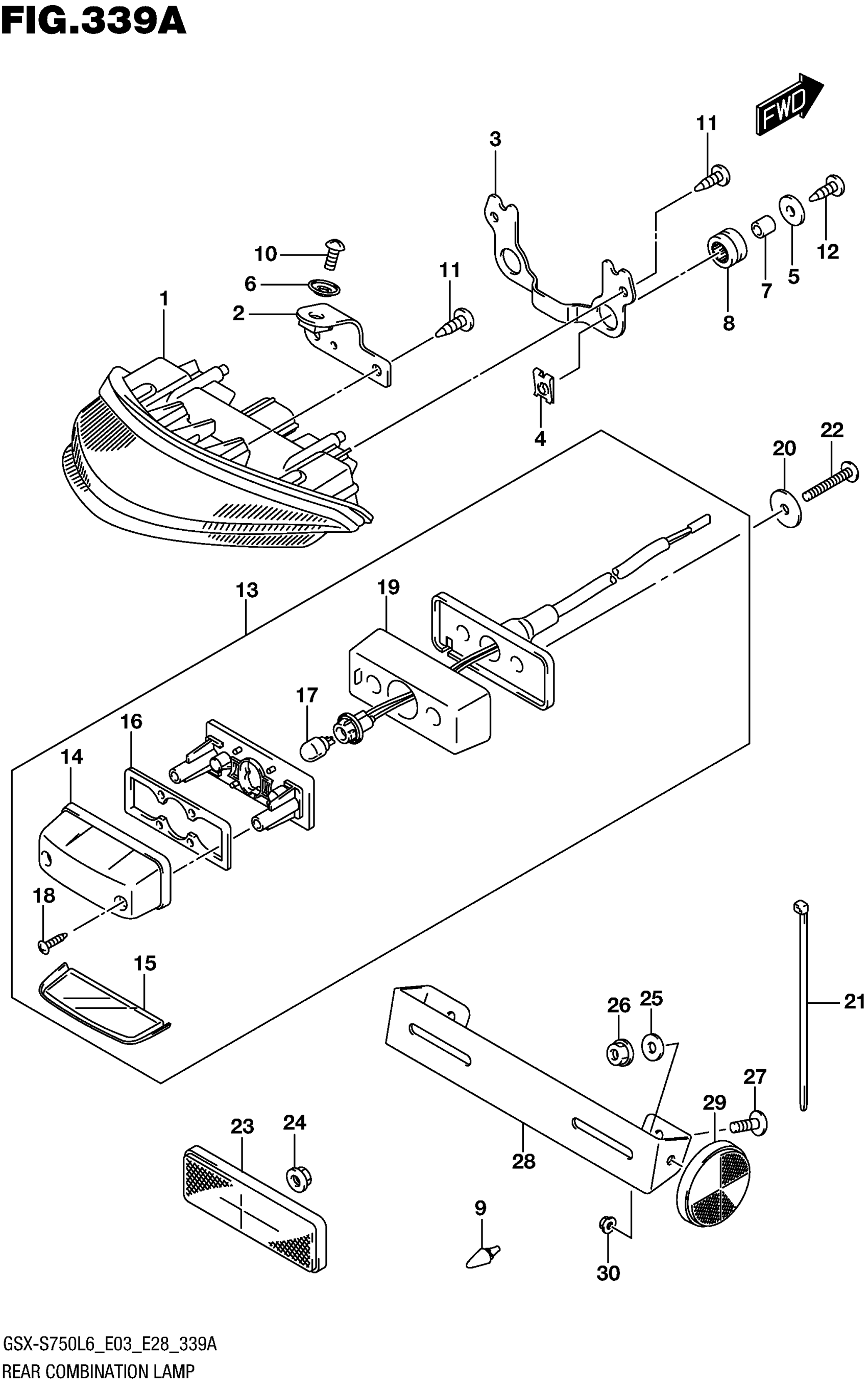

Suzuki GSX-S750AL6 (2016) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-21H30

$281.57

2

BRACKET, REAR COMBINATION LAM

35726-08J00

$8.15

3

BRACKET, REAR COMBINATION LAM

35726-08J10

$10.35

4

NUT (M5)

09148-05047

$2.02

5

WASHER (5.5X20X1.2)

09160-05501

$1.86

6

WASHER

09169-06071

$2.50

7

SPACER (6.5X10X9)

09180-06285

$2.63

8

CUSHION

09320-09009

$4.19

9

CUSHION This part replaces 09321-06028.

09321-06038

$2.05

10

SCREW

02142-0612A

$1.37

11

SCREW

03541-0516A

$1.37

12

SCREW

03541-0520B

$2.87

13

LAMP ASSY,LICENSE

35910-16G31

$99.58

14

.COVER

35917-16G00

$14.00

15

.LENS

35912-16G01

$13.85

16

.GASKET

35913-16G00

Unavailable

17

.BULB (12V5W)

09471-12216

$4.84

18

.SCREW

03211-0416A

$1.43

19

.SPACER

35978-16G30

Unavailable

20

WASHER (5.5X20X1.2)

09160-05501

$1.86

21

CLAMP (L:145)

09407-14407

$2.80

22

SCREW

03541-0540A

$1.58

23

REFLECTOR ASSY, REAR

35970-07F01

$19.11

24

NUT

08316-1005A

$2.19

25

WASHER (6.5X20X1.2)

09160-06077

$1.89

26

NUT

08316-1006A

$2.19

27

SCREW

02142-0616A

$1.37

28

BRACKET, LICENSE PLATE

35927-08J30

$16.98

29

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.23

30

NUT

08316-1005A

$2.19
