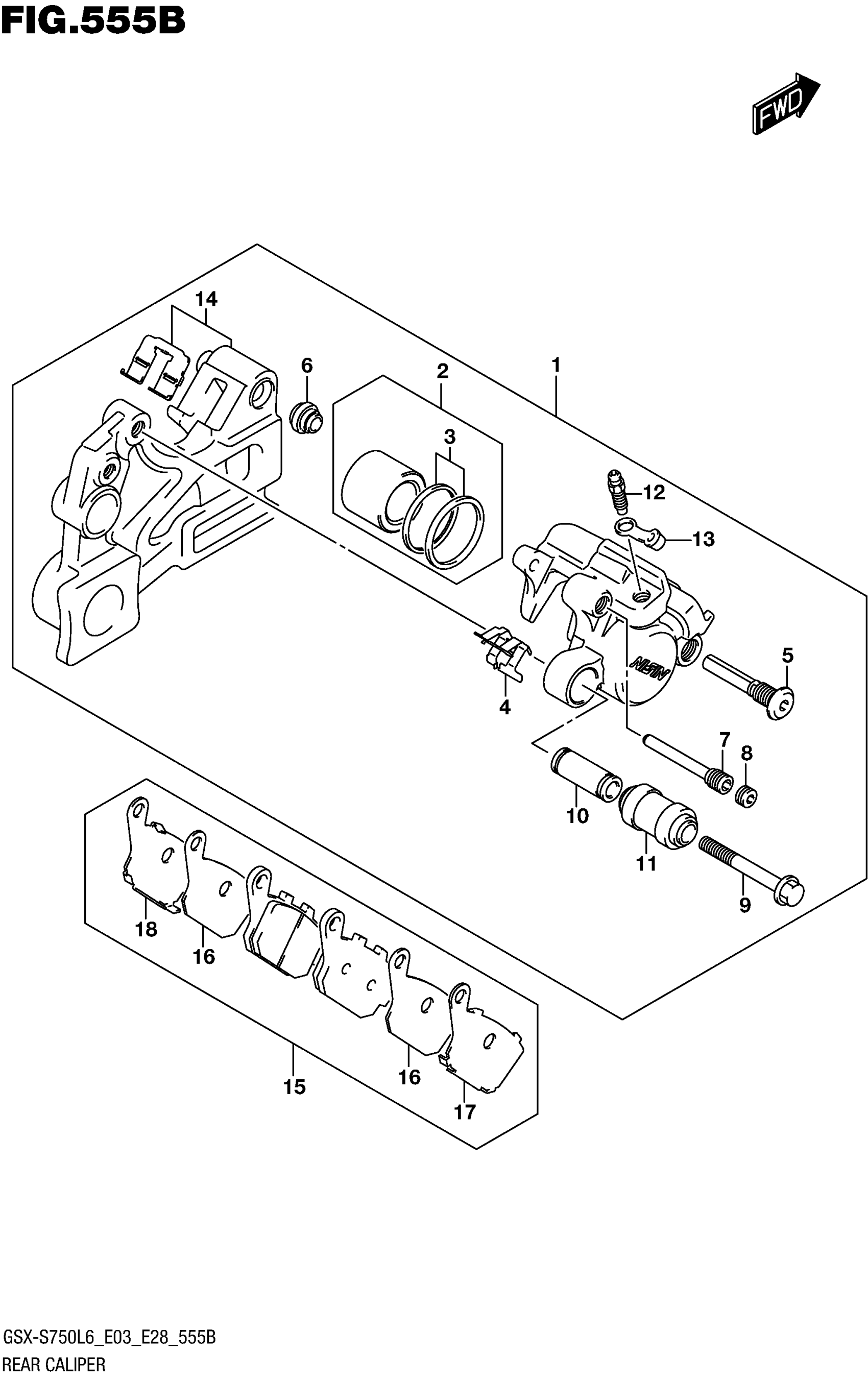

Suzuki GSX-S750AL6 (2016) REAR CALIPER (GSX-S750AL6 E28) Diagram

Description

Price

CALIPER ASSY, REAR

69100-08J10-999

Unavailable

.PISTON SET

69100-04810

$47.22

..SEAL SET,PISTON

69100-04820

$8.77

.SPRING, PAD

69115-04F00

$10.22

.PIN, BOLT

59305-36E00

$18.20

.BOOT

59303-14500

$5.52

.PIN, PAD

69141-40F00

$29.48

.PIN, PLUG

59146-08J00

$7.22

.BOLT

69182-04F00

$9.07

.SLEEVE

69185-04F00

$18.50

.BOOT,SLEEVE

69186-04F00

$13.22

.BLEEDER

59121-01A00

$8.73

.CAP, BLEEDER

59122-46H00

$4.43

.BRACKET

69150-08J10

Unavailable

PAD & RETAINER SET

69100-08850

$64.30

.INSULATOR

69132-08J00

$11.90

.RETAINER

69133-06G00

$15.75

.RETAINER

69134-06G00

$15.45
