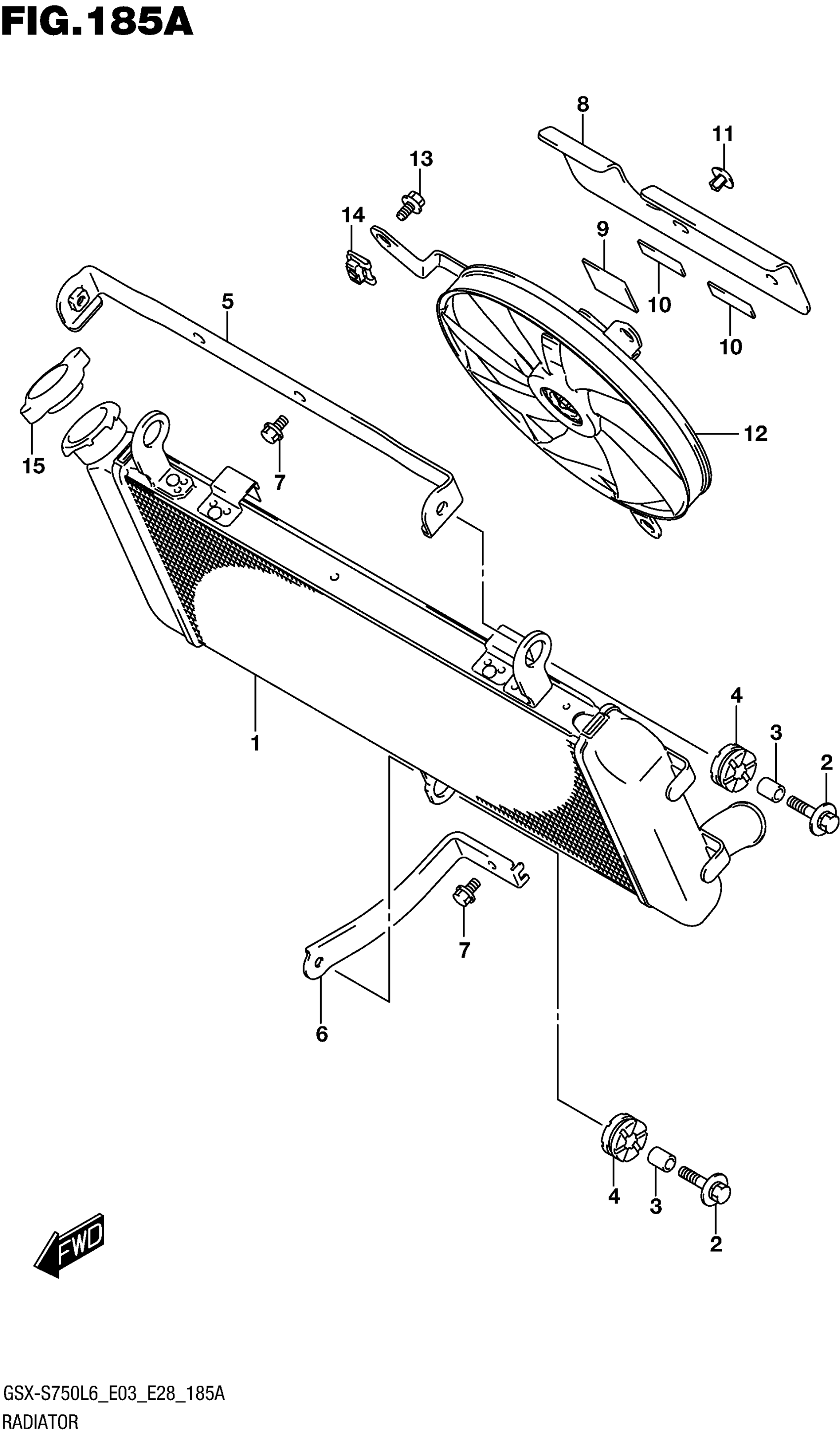

Suzuki GSX-S750AL6 (2016) RADIATOR (GSX-S750L6 E03) Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-08J00

$1,012.55

2

BOLT (6X25)

09118-06122

$3.90

3

SPACER (6.5X10X12)

09180-06290

$2.35

4

CUSHION

09320-10051

$2.99

5

BRACKET,RADIATOR UPPER

17740-08J00

$18.80

6

BRACKET, RADIATOR LOWER

17750-08J00

$11.48

7

BOLT

01550-0612A

$1.97

8

SHIELD,RADIATOR HEAT

17771-08J00

Unavailable

9

CUSHION (10X30X2)

44894-24A00

$1.72

10

CUSHION, HEAT SHIELD

94476-38C00

Unavailable

11

CLIP (BLACK)

09409-06322-5PK

$3.10

12

FAN ASSY, RADIATOR This part replaces 17800-08J00.

17800-13K00

$538.25

13

BOLT, FAN ASSY

17711-08J00

$4.73

14

NUT, FAN ASSY

17712-40F00

$4.68

15

CAP, RADIATOR

17730-08J00

$42.50
