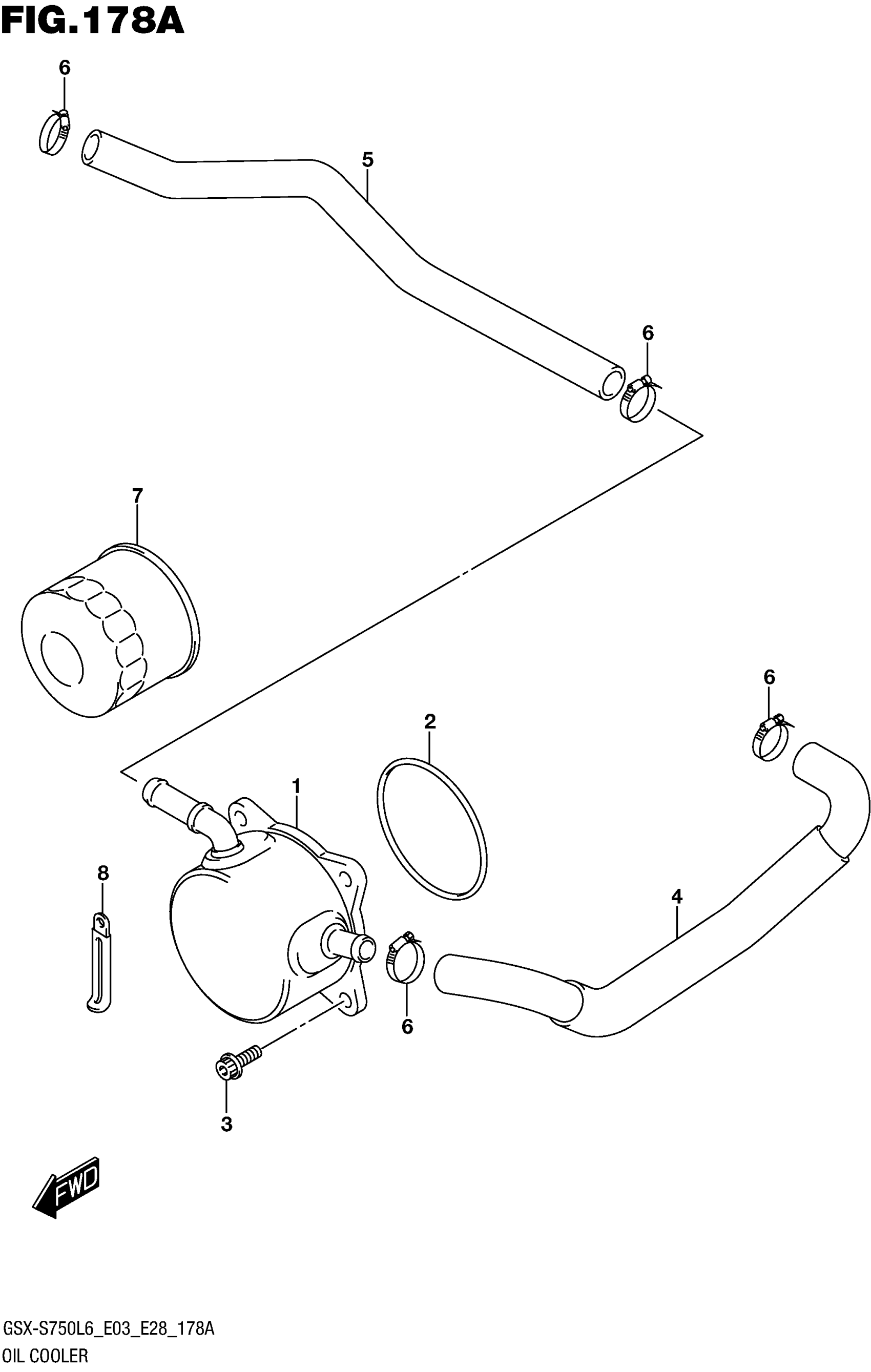

Suzuki GSX-S750AL6 (2016) OIL COOLER Diagram

#

Description

Price

1

COOLER ASSY,OIL

16600-29G00

$687.67

2

O RING (D:3.1,ID:63.9)

09280-64003

$5.64

3

BOLT (6X16)

09106-06099

$2.82

4

HOSE,OIL COOLER WATER INLET

16461-08J00

$32.02

5

HOSE, OIL COOLER WATER OUTLET

16471-08J00

Unavailable

6

CLAMP

09402-22512

$8.62

7

FILTER ASSY, ENGINE OIL

16510-07J00

$13.10

8

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74
