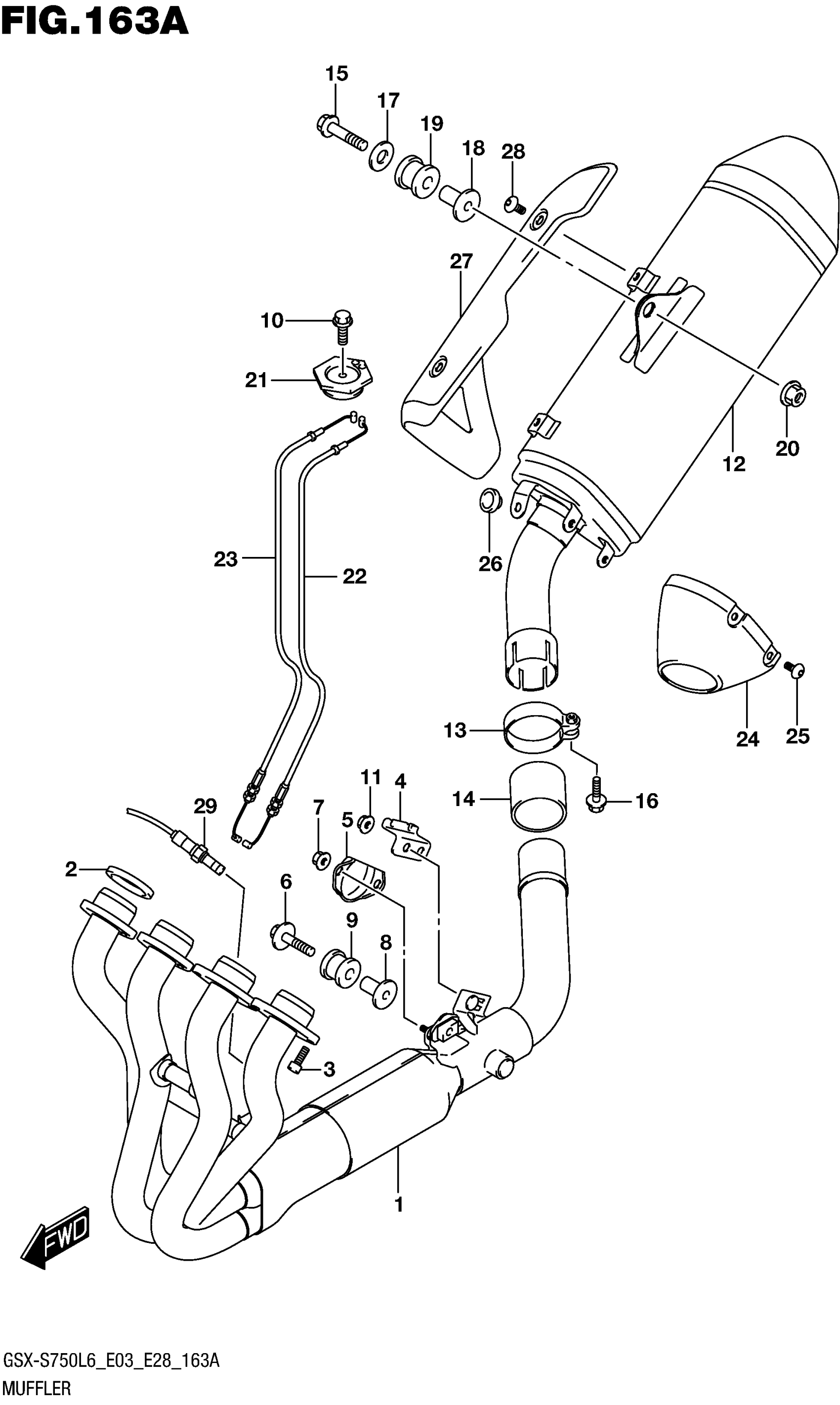

Find the part on the Muffler diagram for your 2016 Suzuki GSX-S750AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki GSX-S750AL6 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST

14100-08J00

1
Out of stock

2

GASKET This part replaces 14181-46E00.

14181-46E10

4
Out of stock

3

BOLT (8X25)

09106-08165

8
Out of stock

4

BRACKET, EXHAUST VALVE CABLE

14250-21H00

1
Out of stock

5

COVER, EXHAUST VALVE

14280-08J00

1
Out of stock

6

BOLT (8X45)

09118-08152-A05

1
Out of stock

7

NUT (M6)

09159-06100

2
Out of stock

8

SPACER (8.6X12X24.2)

09180-08152

1
Out of stock

9

CUSHION

09320-12077

1
Out of stock

10

BOLT

01547-0516A

1
Out of stock

11

NUT

08316-1006A

1
Out of stock

12

BODY, MUFFLER

14310-08J00-H01

1
Out of stock

13

CLAMP,MUF CONN

14459-08J00

1
Out of stock

14

CONNECTOR, MUFFLER

14771-42F31

1

$30.87

In stock

15

BOLT (8X45)

09103-08358

1
Out of stock

16

BOLT (8X40)

09103-08392

1
Out of stock

17

WASHER (8.5X28X1.5)

09160-08142

1
Out of stock

18

SPACER (8.6X12X24.2)

09180-08152

1
Out of stock

19

CUSHION

09320-12048

1
Out of stock

20

NUT

08361-2508A

1

$2.10

In stock

21

PULLEY, CONTROLLER

11269-18G01

1

$32.50

In stock

22

CABLE, EXHAUST VALVE NO.1

11276-08J00

1
Out of stock

23

CABLE, EXHAUST VALVE NO.2

11277-08J00

1
Out of stock

24

COVER, MUFFLER FRONT

14770-08J00

1
Out of stock

25

SCREW (6X10)

09139-06078

2
Out of stock

26

CUSHION

09321-10018

1
Out of stock

27

COVER, MUFFLER CENTER

14780-08J00

1
Out of stock

28

SCREW (6X10)

09139-06122

2
Out of stock

29

SENSOR, OXYGEN

18213-18H10

1
Out of stock
