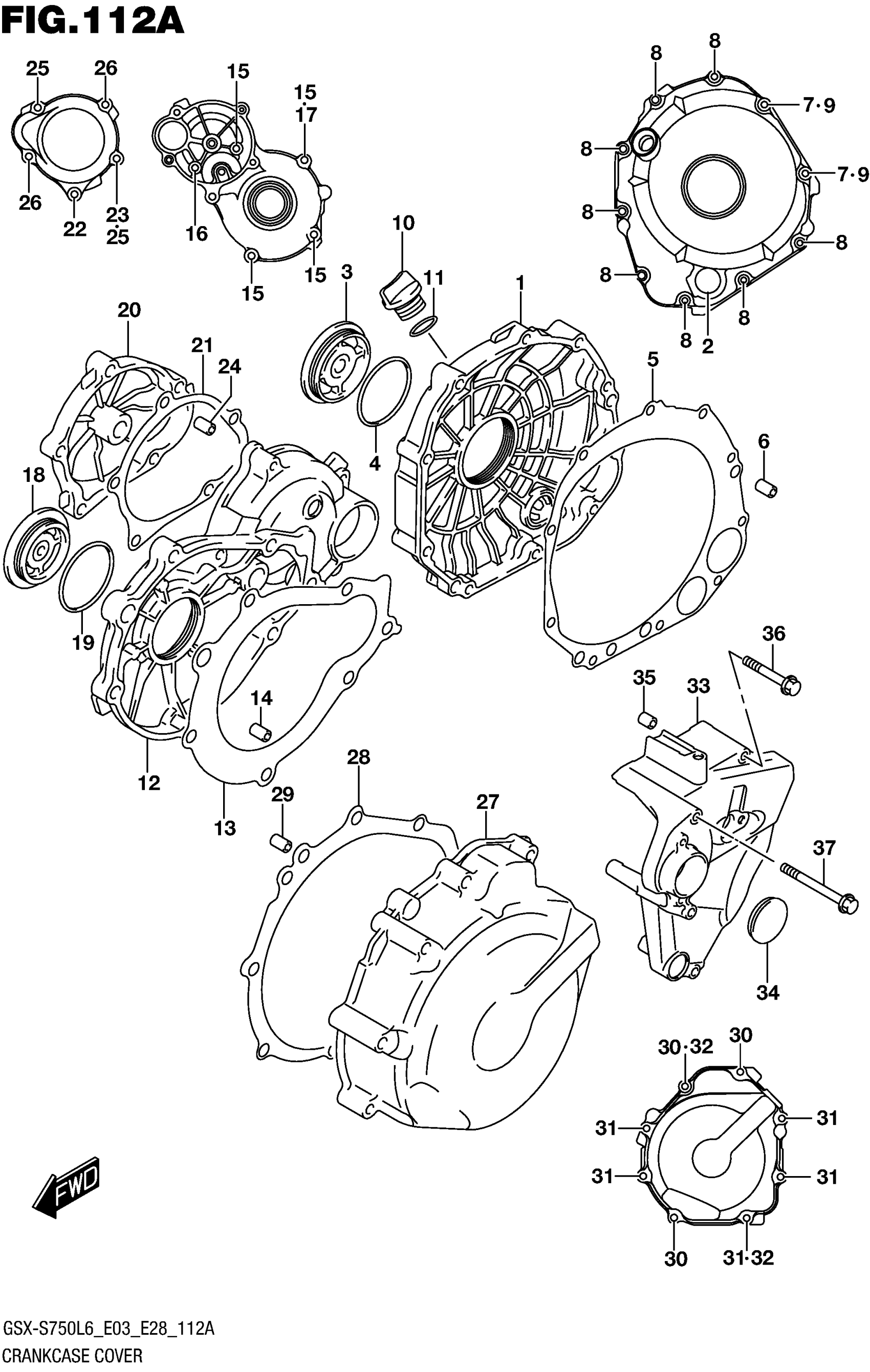

Suzuki GSX-S750AL6 (2016) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-44G10

$287.32

2

.LENS, OIL LEVEL CHECK

11971-33210

$17.41

3

CAP,CLUTCH RELEASE ADJUST

11342-41G10

$23.95

4

O RING

31156-17E00

$4.40

5

GASKET, CLUTCH COVER

11482-40F10

$15.01

6

PIN

04211-09189

$1.70

7

GASKET (5.8X13X1.2)

09168-06023

$2.09

8

BOLT (6X30)

09103-06213

$2.53

9

BOLT (6X40)

09103-06215

$2.80

10

PLUG,ENGINE OIL FILLER

11971-25D00

$4.89

11

O RING (D:3.1,ID:16.8)

09280-17003

$1.70

12

COVER,STARTER CLUTCH

11381-35F10

$287.45

13

GASKET, STARTER CLUTCH COVER

11491-33E02

$8.35

14

PIN

04211-09149

$1.70

15

BOLT (6X25)

09103-06212

$2.53

16

BOLT (6X35)

09103-06214

$2.57

17

GASKET (5.8X13X1.2)

09168-06023

$2.09

18

PLUG

09259-36021

$12.83

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.31

20

CAP,STRAINER IDLE GEAR

11382-33E10

$100.70

21

GASKET, STARTER IDLE GEAR CAP

11492-33E00

$6.91

22

BOLT (6X55)

09103-06216

$2.80

23

GASKET (5.8X13X1.2)

09168-06023

$2.09

24

PIN

04211-09149

$1.70

25

BOLT (6X25)

09103-06212

$2.53

26

BOLT (6X35)

09103-06214

$2.57

27

COVER,MAGNETO

11351-18G20

$137.47

28

GASKET, MAGNETO COVER

11483-18G00

$10.59

29

PIN

04211-09149

$1.70

30

BOLT (6X30)

09103-06213

$2.53

31

BOLT (6X45)

09103-06224

$2.77

32

GASKET (5.8X13X1.2)

09168-06023

$2.09

33

COVER, ENGINE SPROCKET

11361-08J00

$165.12

34

CAP (OD:36)

09250-30003

$3.64

35

PIN

04211-09129

$1.70

36

BOLT

01547-0665A

$2.42

37

BOLT

01547-0695A

$3.32
