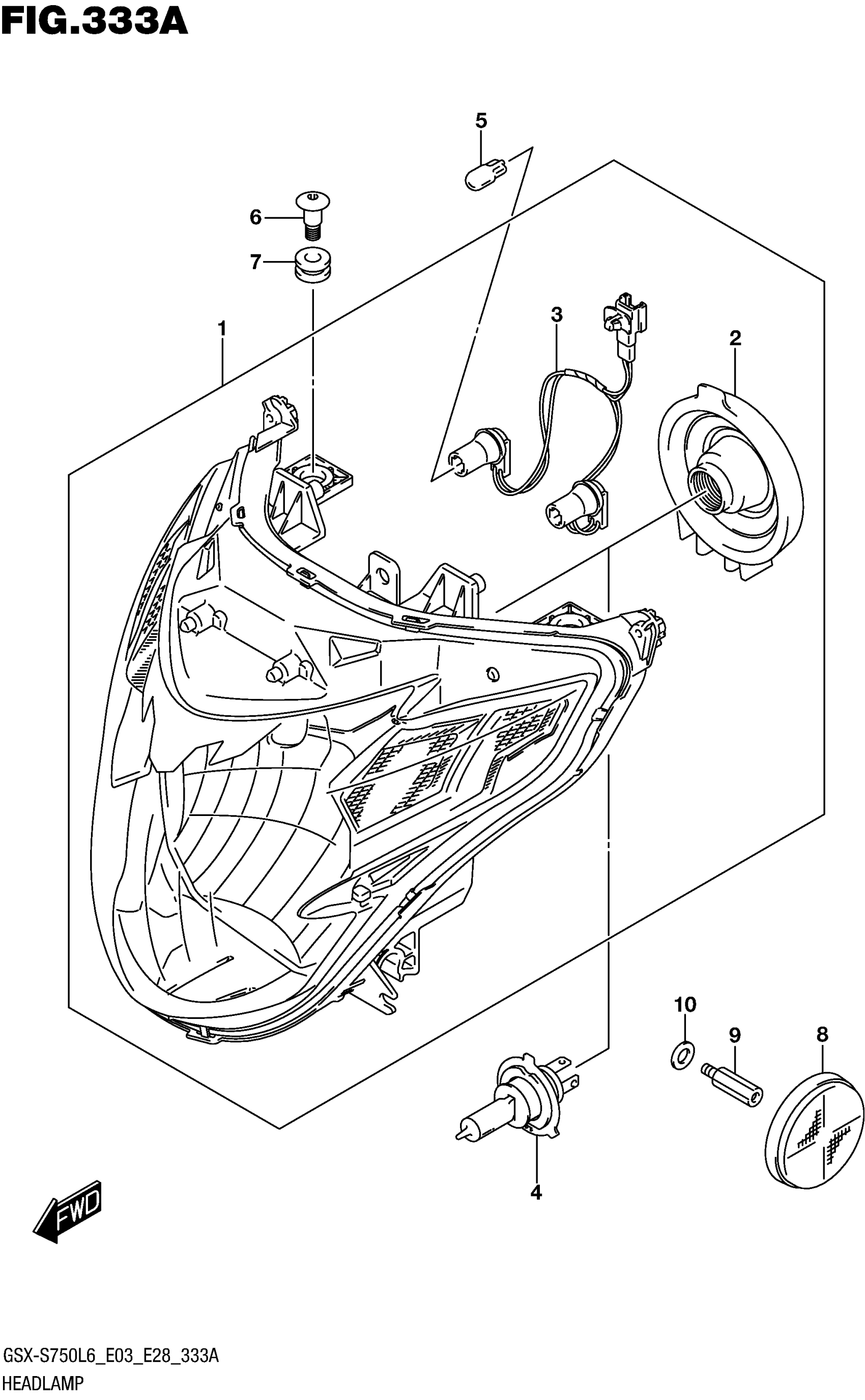

Suzuki GSX-S750AL6 (2016) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY

35100-08J10-999

$514.77

2

.COVER, SOCKET

35125-77A00

$18.23

3

.CORD ASSY

36118-08J00

$58.42

4

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$23.37

5

.BULB (12V5W)

09471-12216

$4.99

6

SCREW (6X20)

09139-06126

$3.75

7

CUSHION

09320-09501

$2.13

8

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$14.56

9

BOLT

09119-06109

$14.43

10

WASHER (8.5X18X1)

09160-08043

$1.81
