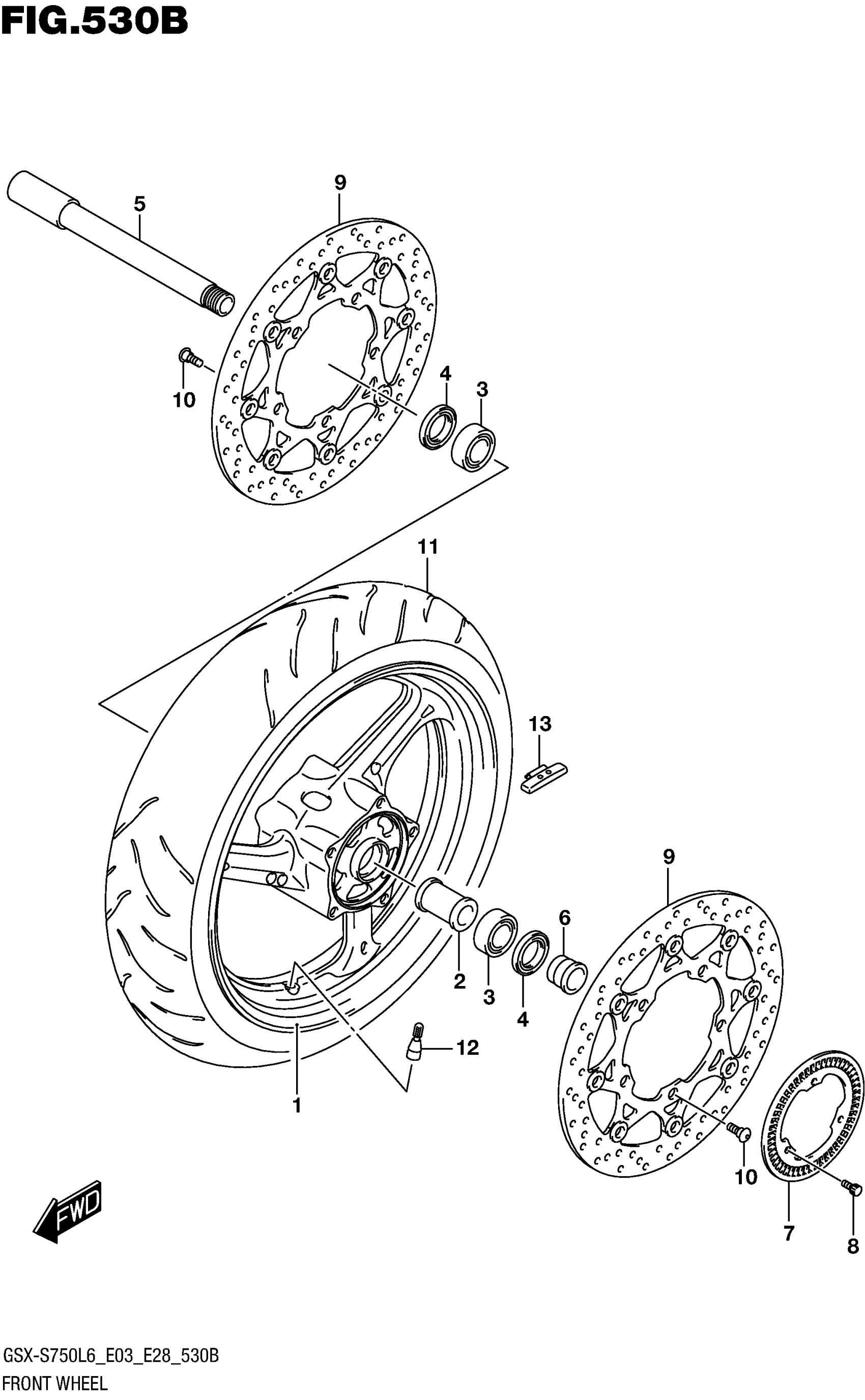

Suzuki GSX-S750AL6 (2016) FRONT WHEEL (GSX-S750AL6 E28) Diagram

WHEEL, FRONT (17M/CXMT3.50)

54111-44G10-019

Unavailable

(BLACK)

54111-44G10-019

Unavailable

SPACER, FRONT WHEEL BEARING

54731-44G00

Unavailable

BEARING This part replaces 09262-22035.

09262-22049

$43.81

SEAL,OIL This part replaces 09283-28016.

09283-28028

$9.13

AXLE, FRONT

54711-44G00

$155.58

SPACER, FRONT AXLE

54751-44G00

Unavailable

RING, SPEED SENSOR FRONT

54162-27G00

$140.15

BOLT

07130-0512A

$2.19

DISC,FR BRAKE

59210-44G11

$415.82

BOLT (8X21)

09106-08160

$3.57

TIRE, FRONT

55110-08J00

$433.70

(120/70ZR17M/C 58W)

55110-08J00

$433.70

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$8.60

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$10.07

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$11.47
