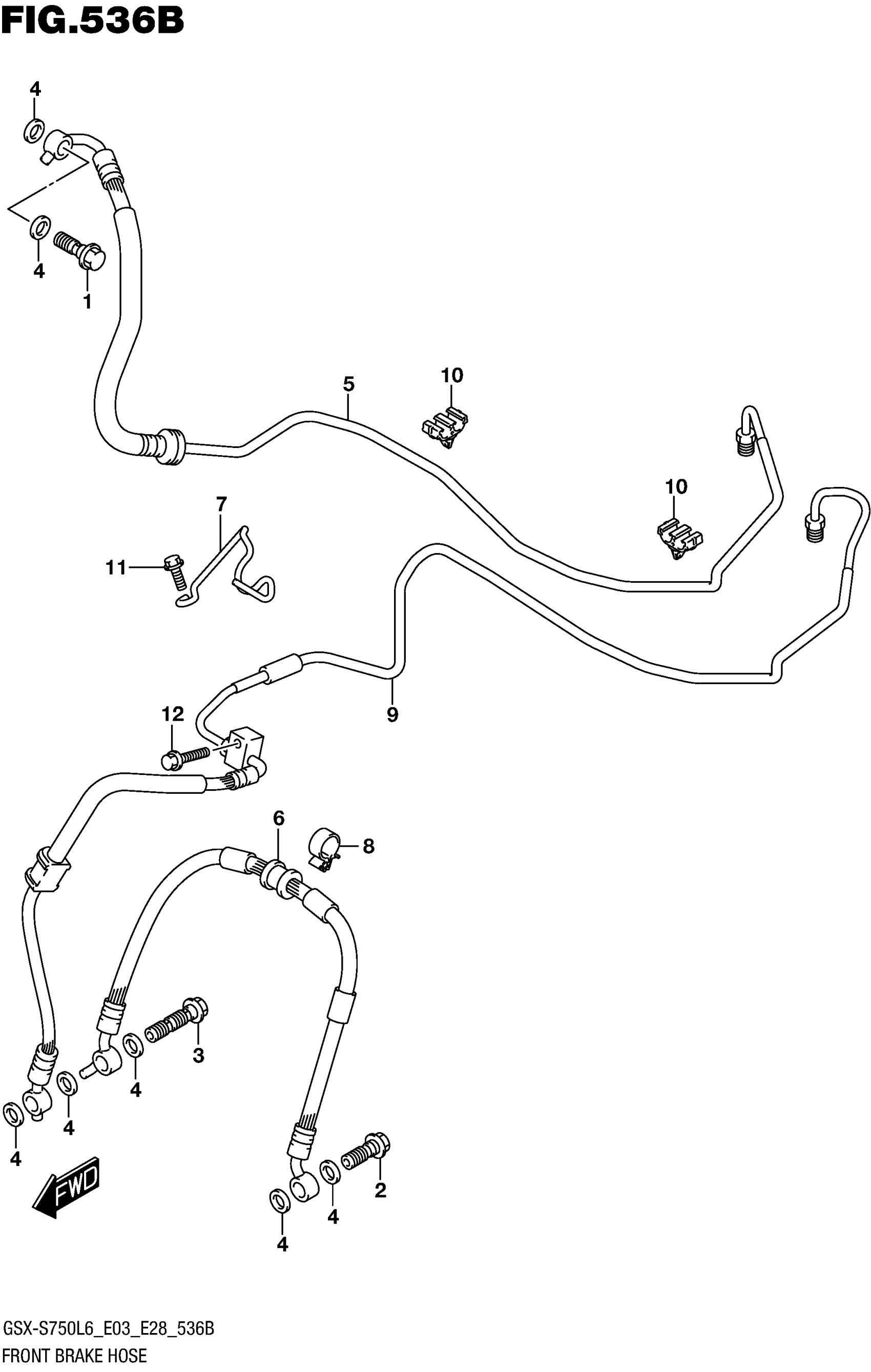

Suzuki GSX-S750AL6 (2016) FRONT BRAKE HOSE (GSX-S750AL6 E28) Diagram

#

Description
Price

1

UNION

09360-10062

$6.43

2

UNION

09360-10062

$6.43

3

UNION

09360-10064

$6.43

4

WASHER (10X15X1.5)

09161-10009

$1.84

5

HOSE ASSY, FRONT BRAKE NO.1

59200-08J00

Unavailable

6

HOSE, FRONT BRAKE NO.2

59240-08J10

Unavailable

7

CLAMP,FR BRAKE HOSE

59251-08J00

$13.93

8

CLAMP

09403-16412

$3.37

9

HOSE ASSY, FR BRAKE NO.2

59400-08J00

Unavailable

10

CLAMP

09403-07334

Unavailable

11

BOLT

01547-0616A

$2.03

12

BOLT

01547-0620A

$2.03
