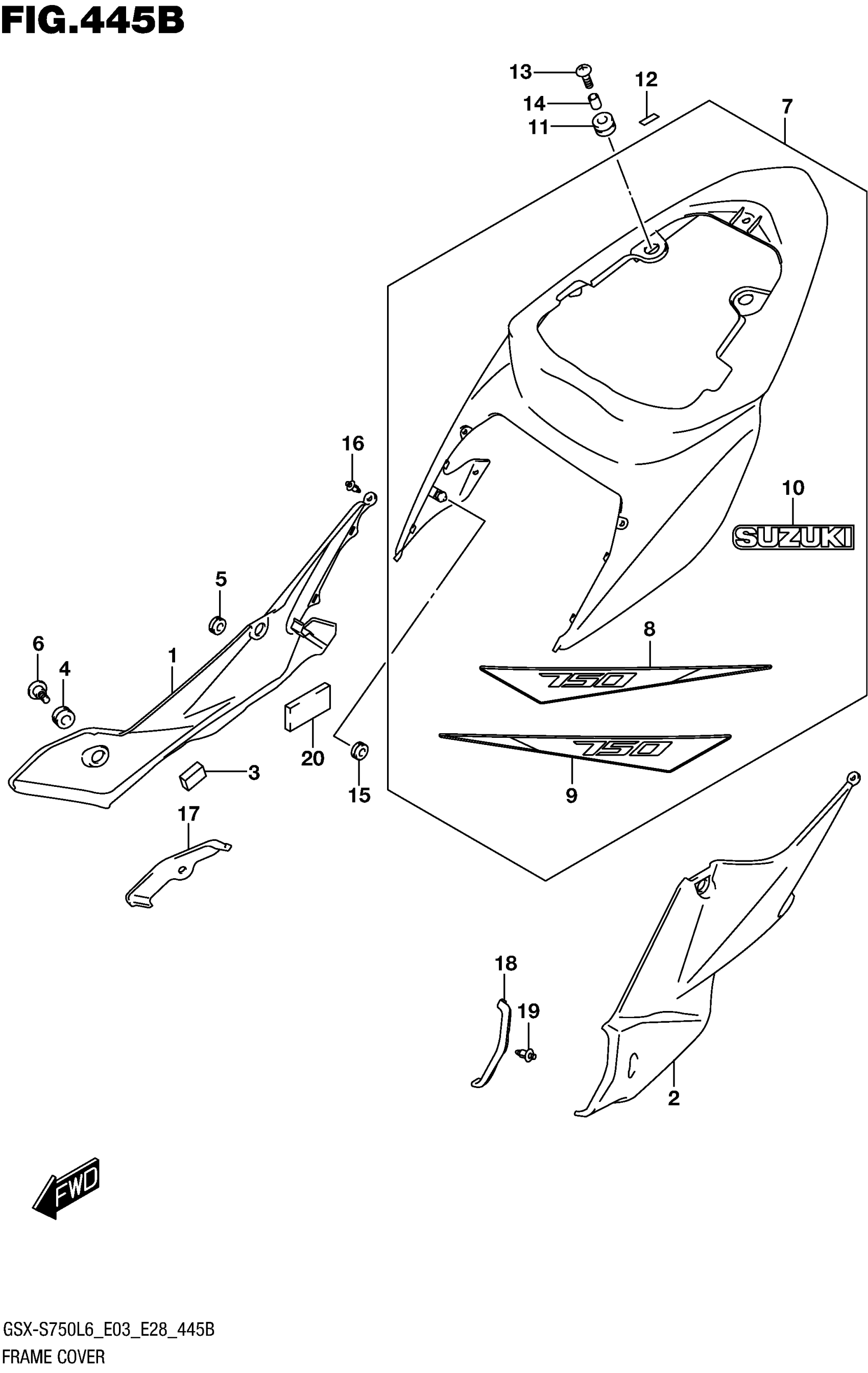

Suzuki GSX-S750AL6 (2016) FRAME COVER (FOR YSF) Diagram

#

Description
Price

1

COVER,FRAME FR, This part replaces 47511-08J00-291.

47511-08J01-291

$84.93

2

COVER,FRAME FR, This part replaces 47611-08J00-291.

47611-08J01-291

$77.33

3

CUSHION

94422-06G00

$5.82

4

CUSHION

09320-09016

$1.97

5

CUSHION

47113-37H00

$4.43

6

SCREW (6X20)

47118-08J00

$4.35

7

COVER, FRAME CENTER (BLUE)

47310-08J30-YSF

Unavailable

8

.EMBLEM, "750" RH

68161-08J10-A3F

Unavailable

9

.EMBLEM, "750" LH

68171-08J10-A3F

Unavailable

10

.EMBLEM, SUZUKI (SILVER) This part replaces 68171-28H00-YD8.

68171-28H01-YD8

$7.58

10

.EMBLEM, SUZUKI (SILVER) This part replaces 68171-28H00-YD8.

68171-28H01-YD8

$7.58

11

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.91

12

TAPE, FRAME COVER CENTER

94443-06G00

$3.25

13

SCREW (6X20)

09136-06105

$1.97

14

SPACER (6.5X10X7)

09180-06283

$1.91

15

CUSHION

09320-08018

$3.04

16

CLIP (BLACK)

09409-06314-5PK

$2.78

17

COVER,FRAME TOP RH

47711-08J00

$7.35

18

COVER,FRAME TOP LH

47811-08J00

$7.35

19

CLIP

09409-07333

$2.31

20

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.99
