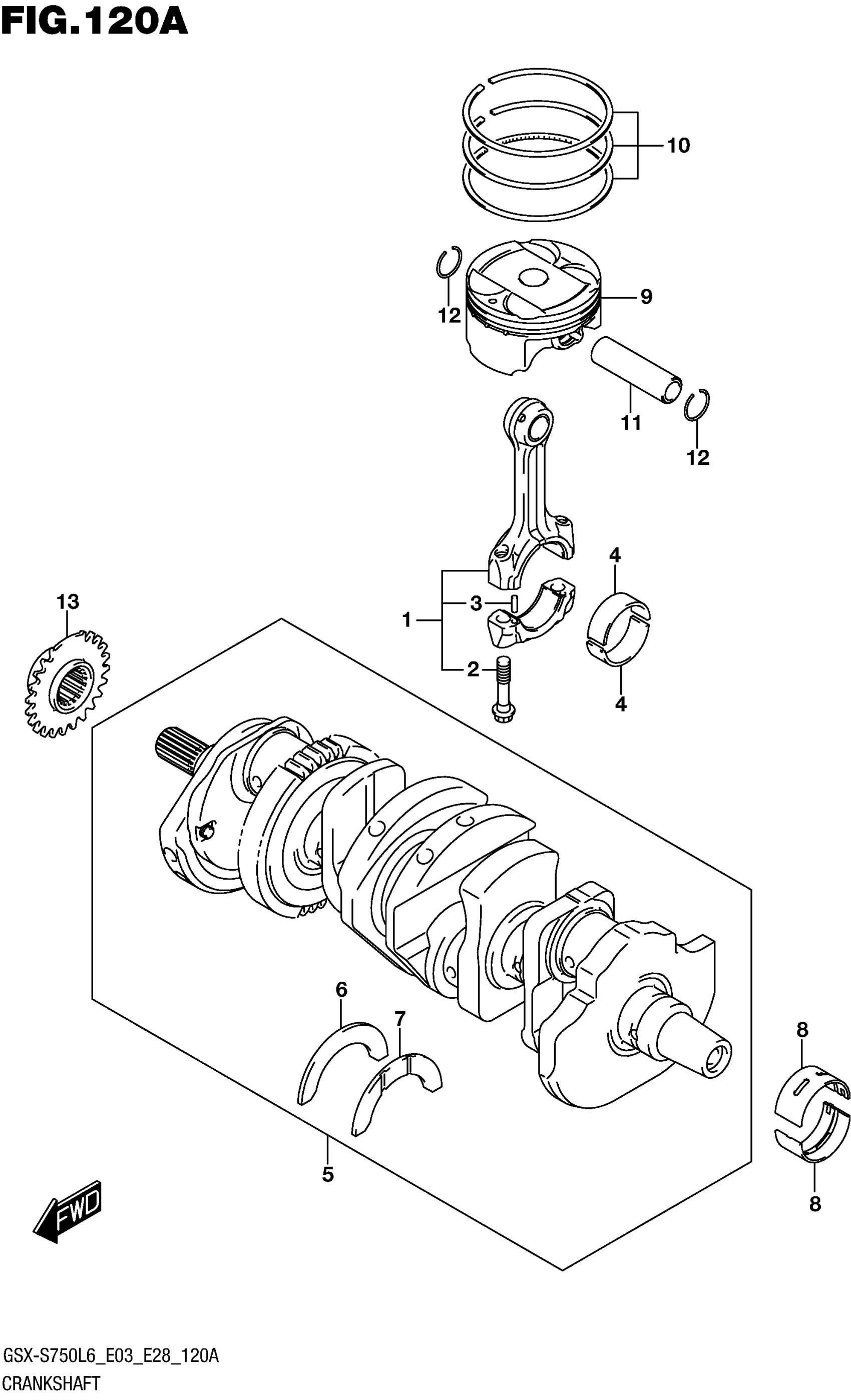

Suzuki GSX-S750AL6 (2016) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING

12160-08J00

Unavailable

2

.BOLT

12163-35F00

$10.23

3

PIN (4X13.8)

04221-04089

$1.49

4-1

BEARING, CRANK PIN (GREEN)

12164-35F00-0A0

$12.33

4-2

BEARING, CRANK PIN (BLACK)

12164-35F00-0B0

$12.33

4-3

BEARING, CRANK PIN (BROWN)

12164-35F00-0C0

$12.10

4-4

BEARING, CRANK PIN (YELLOW)

12164-35F00-0D0

$13.97

5

CRANKSHAFT SET This part replaces 12000-30810.

12000-30820

Unavailable

6

.BEARING, THRUST RH (GREEN)

12228-17E00-0D0

$9.50

7-1

.BEARING, THRUST LH (RED)

12228-17E00-0A0

$11.38

7-2

.BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.69

7-3

.BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.69

7-4

.BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$9.50

7-5

.BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$11.38

7-6

.BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$11.60

8-1

BEARING, CRANKSHAFT (GREEN)

12229-35F00-0A0

$20.85

8-2

BEARING, CRANKSHAFT (BLACK)

12229-35F00-0B0

$20.10

8-3

BEARING, CRANKSHAFT (BROWN)

12229-35F00-0C0

$17.09

8-4

BEARING, CRANKSHAFT (YELLOW)

12229-35F00-0D0

$20.85

9

PISTON (YELLOW) This part replaces 12111-08J00-0F0.

12111-08J01-0F0

$107.02

10

RING SET, PISTON

12140-08J00

Unavailable

11

PIN,PISTON

12151-10G00

$20.52

12

SNAP RING

09381-16001

$1.67

13

SPROCKET,CAM CHAIN DRIVE (NT:

12731-08J00

Unavailable
