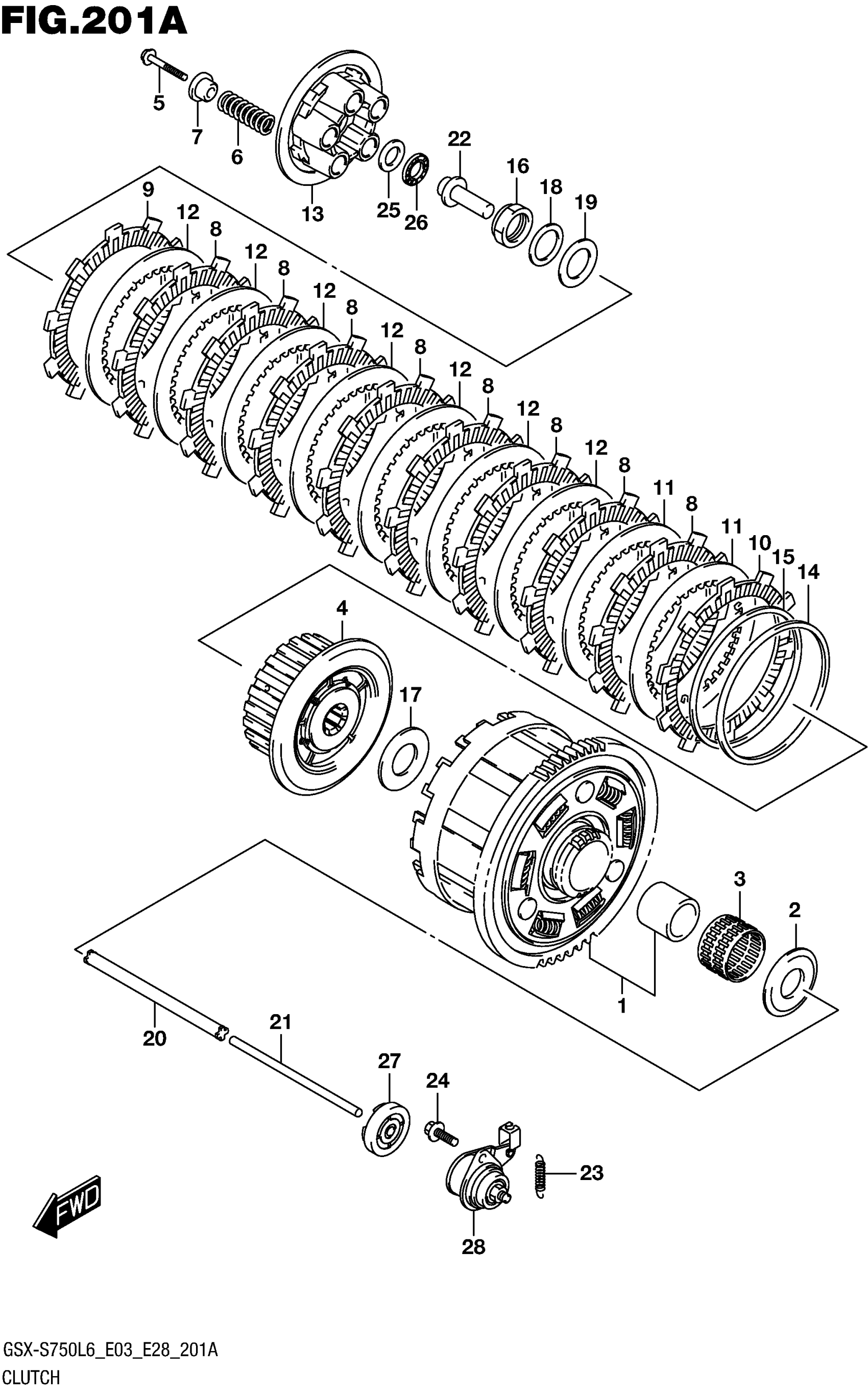

Suzuki GSX-S750AL6 (2016) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN

21200-35830

$509.55

1

(NT:78)

21200-35830

$509.55

2

WASHER (25X54X2.4)

09160-25073

$14.50

3

BEARING (35X40X29.8)

09263-35036

$31.73

4

HUB,CLUTCH SLEEVE

21410-35F20

$134.18

5

BOLT,CLUTCH SPRING

21482-40F00

$3.58

6

SPRING,CLUTCH

21413-08J00

$9.45

7

WASHER, CLUTCH SPRING

21414-29F00

$6.25

8

PLATE, CLUTCH DRIVE NO.1

21441-31EA0

$22.24

8

(T:3.0)

21441-31EA0

$22.24

9

PLATE, CLUTCH DRIVE NO.2

21441-31E60

$22.80

9

(T:3.0)

21441-31E60

$22.80

10

PLATE, CLUTCH DRIVE NO.3

21442-31E21

$37.93

10

(T:3.0)

21442-31E21

$37.93

11

PLATE, CLUTCH DRIVEN NO.1

21451-31E00

$10.53

11

(T:1.6)

21451-31E00

$10.53

12

PLATE, CLUTCH DRIVEN NO.2

21451-31E10

$11.28

12

(T:2.0)

21451-31E10

$11.28

13

DISC, CLUTCH PRESSURE

21462-35F00

$61.37

14

SEAT, WAVE WASHER

21471-31E20

$14.20

15

WASHER,CLUTCH PLATE

21472-39F00

$17.43

16

NUT

09159-24010

$13.22

17

.WASHER (25X50X2.5)

09160-25056

$11.61

18

WASHER

09164-24008

$4.60

19

SHIM (25X38X1)

09181-25223

$3.21

20

ROD, CLUTCH

23110-27A00

$21.09

21

ROD, CLUTCH PUSH LH

23111-35F00

$13.30

22

PIECE, CLUTCH PUSH

23121-31E00

$23.92

23

SPRING

09443-09051

$3.59

24

BOLT

01550-0616A

$1.97

25

WASHER (15.5X28X1)

09160-15045

$3.89

26

BEARING (15X28X2)

09263-15003

$8.29

27

OIL SEAL (6X34X10.5)

09283-06010

$16.80

28

SCREW ASSY, CLUTCH RELEASE

23200-35F01

$66.14
