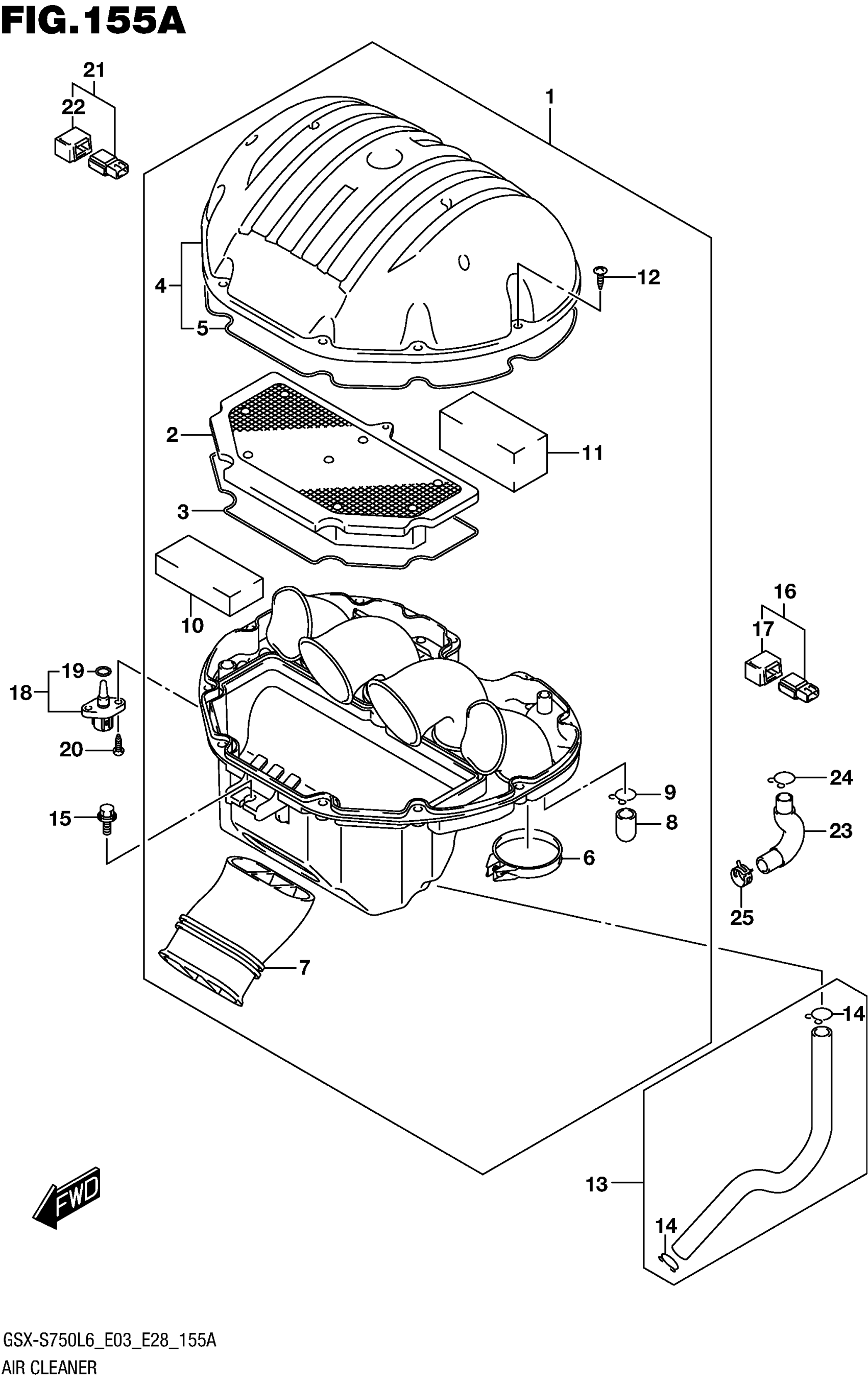

Suzuki GSX-S750AL6 (2016) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-08J02

Unavailable

2

.FILTER ASSY This part replaces 13780-44G00.

13780-44G01

$35.84

3

.GASKET, CASE

13756-44G00

$5.58

4

.CAP

13740-08J00

Unavailable

5

..GASKET, CAP

13746-08J00

$7.52

6

.CLAMP

13170-25D01

$6.60

7

.TUBE, INLET

13891-08J00

Unavailable

8

.PLUG

13859-41B10

$7.38

9

.CLIP

09401-14101

$2.34

10

.FILTER, BREATHER

13788-08J00

$5.95

11

.FILTER, BREATHER

13789-08J00

$8.38

12

SCREW

03541-0520A

$1.80

13

TUBE, BREATHER

13850-08J00

Unavailable

14

.CLIP

09401-15101

$2.26

15

BOLT (6X16)

09116-06130

$2.28

16

SENSOR, BOOST

15630-29G10

$273.45

17

.COVER

15625-29G00

$12.40

18

SENSOR, AIR TEMPERATURE

13650-14G10

$52.06

19

.O RING

13655-14G10

$9.90

20

SCREW

03511-0516A

$1.86

21

SENSOR, BOOST

15630-29G10

$273.45

22

.COVER

15625-29G00

$12.40

23

HOSE,ISC VALVE

13697-08J00

Unavailable

24

CLIP

09401-15101

$2.26

25

CLIP

09401-16407

$2.44
