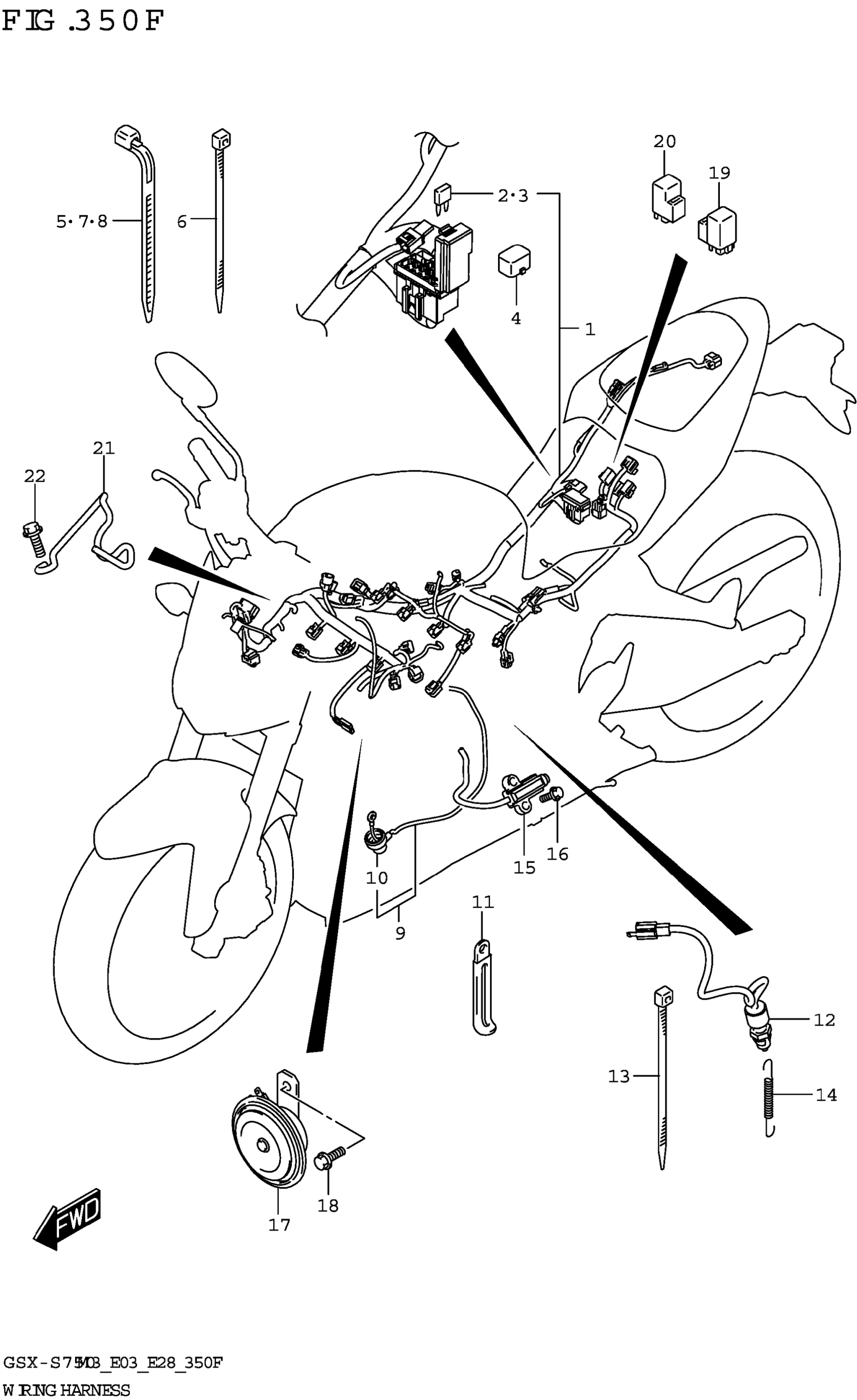

Suzuki GSX-S75032 (2023) WIRING HARNESS ((GSX-S750,GSX-S750Z):E33) Diagram

#

Description
Price

1

HARNESS,WIRING

36610-13K11

Unavailable

2

.FUSE (10A)

09481-10501

$2.06

3

.FUSE (15A)

09481-15501

$2.02

4

CAP,TS

36654-06J31

$14.53

5

CLAMP (L:235)

09407-25401

$4.66

6

CLAMP (L:145)

09407-14407

$3.57

7

CLAMP (L:125)

09407-14403

$2.26

8

CLAMP (L:190)

09407-19401

$3.05

9

WIRE, OIL PRESSURE SWITCH LEA

36851-23H01

Unavailable

10

.CAP,OIL PRESSURE SWITCH

36618-31J00

Unavailable

11

CLAMP (L:45)

09404-06429

$1.83

12

SWITCH ASSY,STOP LAMP

37740-45D00

$18.27

13

CLAMP (L:145)

09407-14407

$3.57

14

SPRING

09443-06012

$3.16

15

SWITCH ASSY,SIDE STAND This part replaces 37840-35F01.

37840-35F02

$56.65

16

BOLT (6X20)

01550-0620A

$1.97

17

HORN ASSY

38500-16G01

$87.70

18

BOLT (8X12)

01550-0812A

$2.32

19

RELAY ASSY

38740-24X50

$45.20

20

RELAY ASSY

38740-24X50

$45.20

21

CLAMP,FR BRAKE HOSE

59251-08J00

$13.93

22

BOLT

01547-0616B

$2.45
