2023 Suzuki GSX-S75032 Throttle Body Diagram

← All diagrams

Find the part on the Throttle Body diagram for your 2023 Suzuki GSX-S75032, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

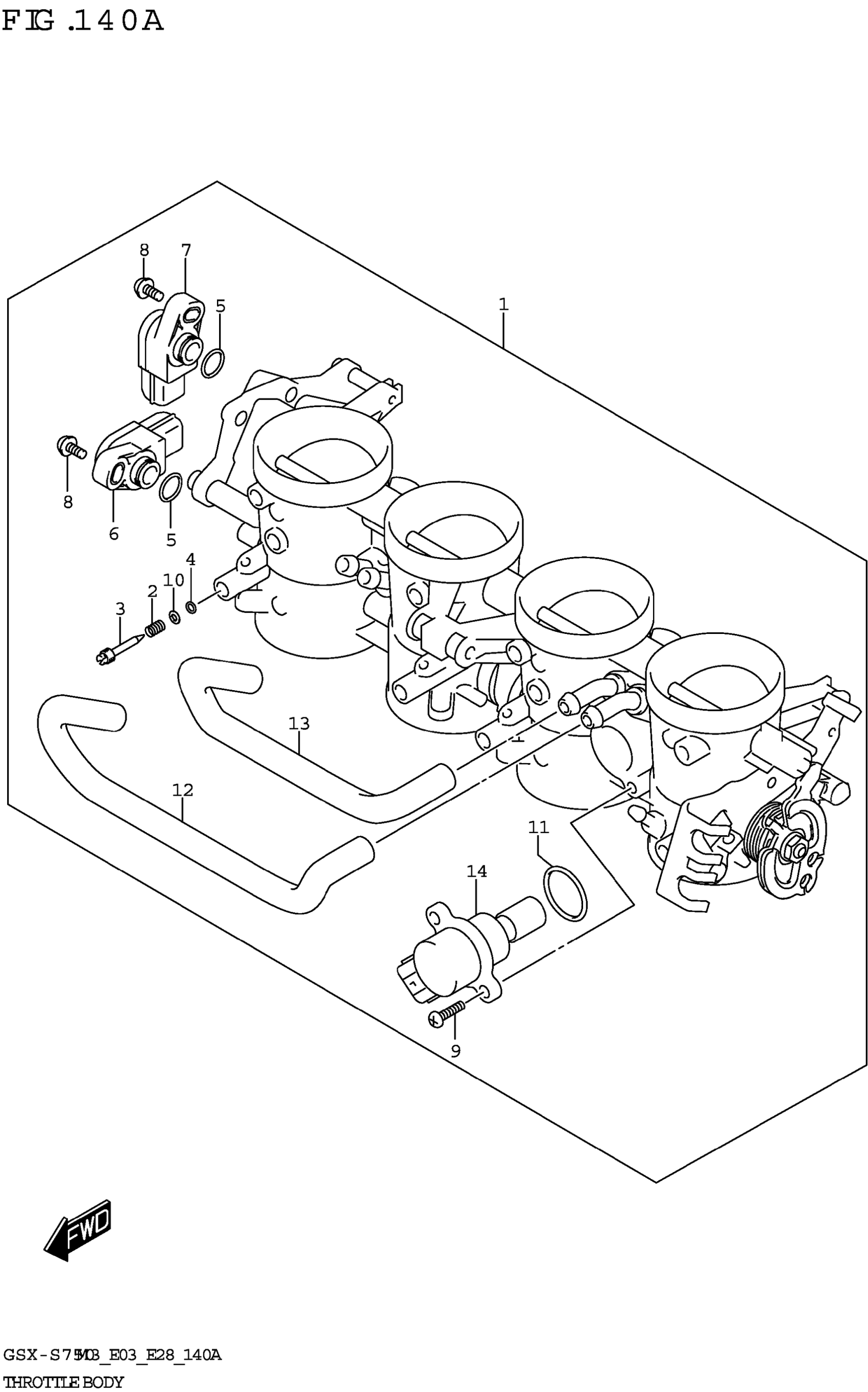

2023 Suzuki GSX-S75032 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY, THROTTLE

13405-13K00

1
Out of stock

2

SPRING,THROTTLE SCREW

13268-48700

4

$4.33

In stock

3

SCREW

13269-33E00

4
Out of stock

4

O-RING

13295-29901

4
Out of stock

5

.O-RING

13575-29G01

2
Out of stock

6

.SENSOR

13580-14J00

1
Out of stock

7

.SENSOR ASSY

13580-29G00

1
Out of stock

8

.SCREW

13605-02F00

2
Out of stock

9

2

$1.33

In stock

10

WASHER

13606-47A00

4
Out of stock

11

.O-RING

13679-37H00

1
Out of stock

12

.HOSE

13698-08J01

1
Out of stock

13

.HOSE

13698-08J11

1
Out of stock

14

.MOTOR ASSY

18117-14J01

1
Out of stock
