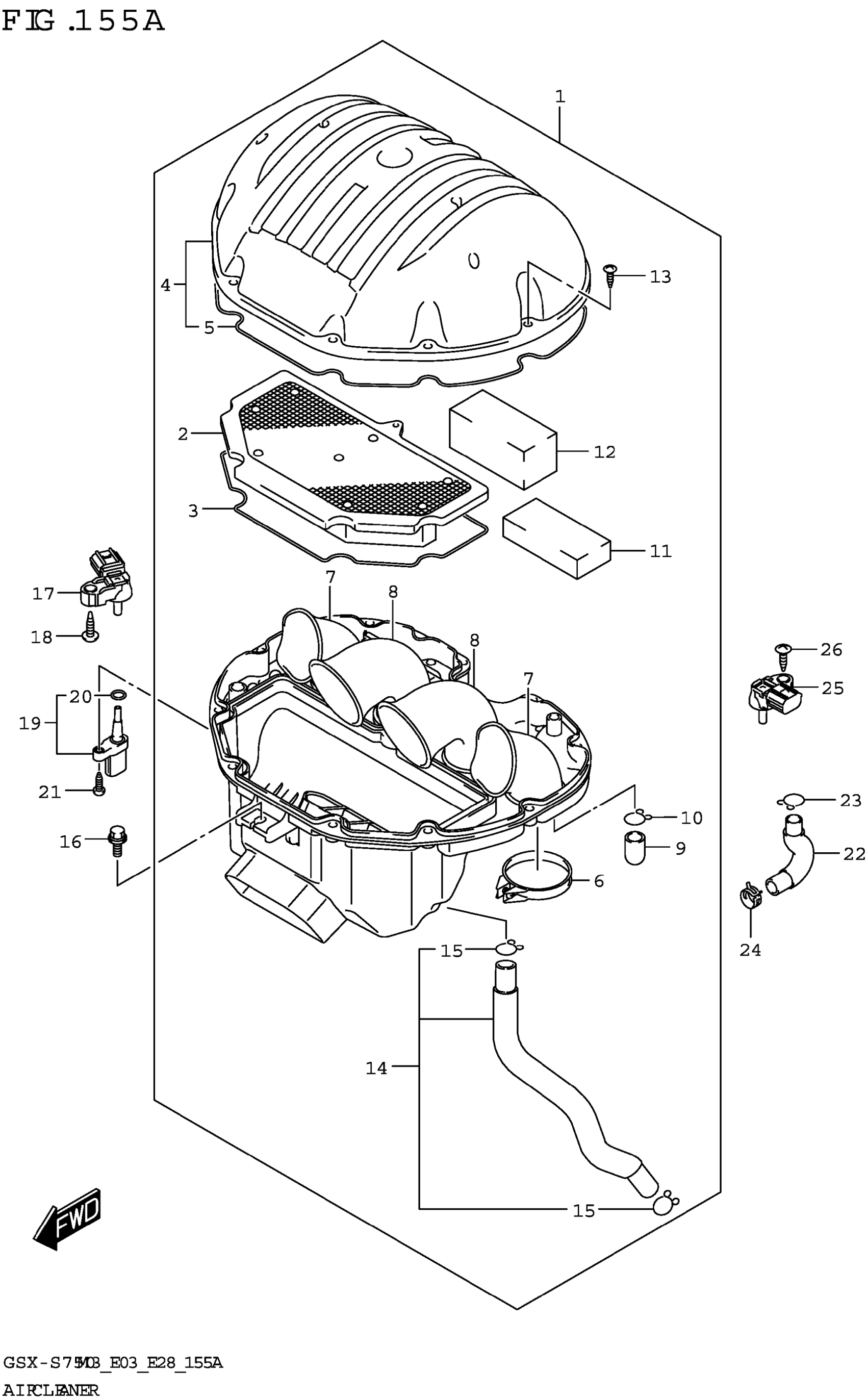

Suzuki GSX-S75032 (2023) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR

13700-13K03

Unavailable

2

.FILTER ASSY

13780-44G01

$31.86

3

.GASKET,CASE

13756-44G00

$6.30

4

.CAP,AIR CLEANER

13740-08J00

Unavailable

5

..GASKET,CAP

13746-08J00

$8.48

6

.CLAMP

13170-25D01

$7.45

7

.TUBE,OUTLET A

13881-08J02

Unavailable

8

.TUBE,OUTLET B

13882-08J02

Unavailable

9

.PLUG

13859-41B10

$6.94

10

.CLIP (ID:14.5)

09401-14101

$2.37

11

.FILTER,BREATHER

13788-08J00

$6.72

12

.FILTER,BREATHER

13789-08J00

$9.47

13

SCREW

03541-0520A

$1.81

14

.TUBE,BREATHER

13850-13K01

Unavailable

15

.CLIP (ID:14.5)

09401-14101

$2.37

16

BOLT (6X16)

09116-06130

$2.19

17

SENSOR,BOOST

18590-18K00

$350.62

18

SCREW

03541-0525B

$2.34

19

SENSOR,AIR TEMP

13650-41F10

$71.40

20

O-RING

13655-41F10

Unavailable

21

SCREW

03511-0516A

$1.88

22

HOSE,ISC VALVE

13697-08J00

Unavailable

23

CLIP (ID:15.5)

09401-15101

$2.28

24

CLIP (ID:16.5)

09401-16407

$2.53

25

SENSOR,BOOST

18590-18K00

$350.62

26

SCREW

03541-0525B

$2.34
