Description

Price

1

SWINGINGARM ASSY,REAR (BLACK)

61000-13K01-YAP

$873.93

2

BEARING (25X33X35)

09263-25073

$27.91

3

.BEARING (17X24X25)

09263-17053

$19.55

4

.SPACER,RR SWGARM PIVOT CTR

61282-17C00

$32.08

5

SPACER,RR SWGARM PIVOT

61251-21E00

$33.92

6

SHAFT,RR SWINGINGARM PIVOT

61211-31E00

$144.57

7

NUT

09159-18007

$21.28

8

WASHER (18.5X28X2.6)

09160-18030

$2.58

9

BUFFER, CHAIN TOUCH DEFENSE

61273-13K00

$32.30

10

BOLT (6X17.8)

09111-06072

$2.01

11

CASE, CHAIN

61310-13K00

$81.25

12

BOLT (6X12)

09111-06107

$2.66

13

SCREW (6X16)

09139-06113

$3.21

14

CLIP (7.6X25.7,BLACK)

09409-08308-5ES

$1.97

15

ADJUSTER, CHAIN

61410-13K00

$23.27

16

PLATE, CHAIN ADJUSTER GUIDE

61421-13K00

$27.87

17

BOLT (8X50)

09106-08119

$3.70

18

WASHER

09164-08015

$2.90

19

WASHER, CHAIN ADJUSTER RH

61445-13K00

$31.93

20

WASHER, CHAIN ADJUSTER LH

61446-13K00

$29.27

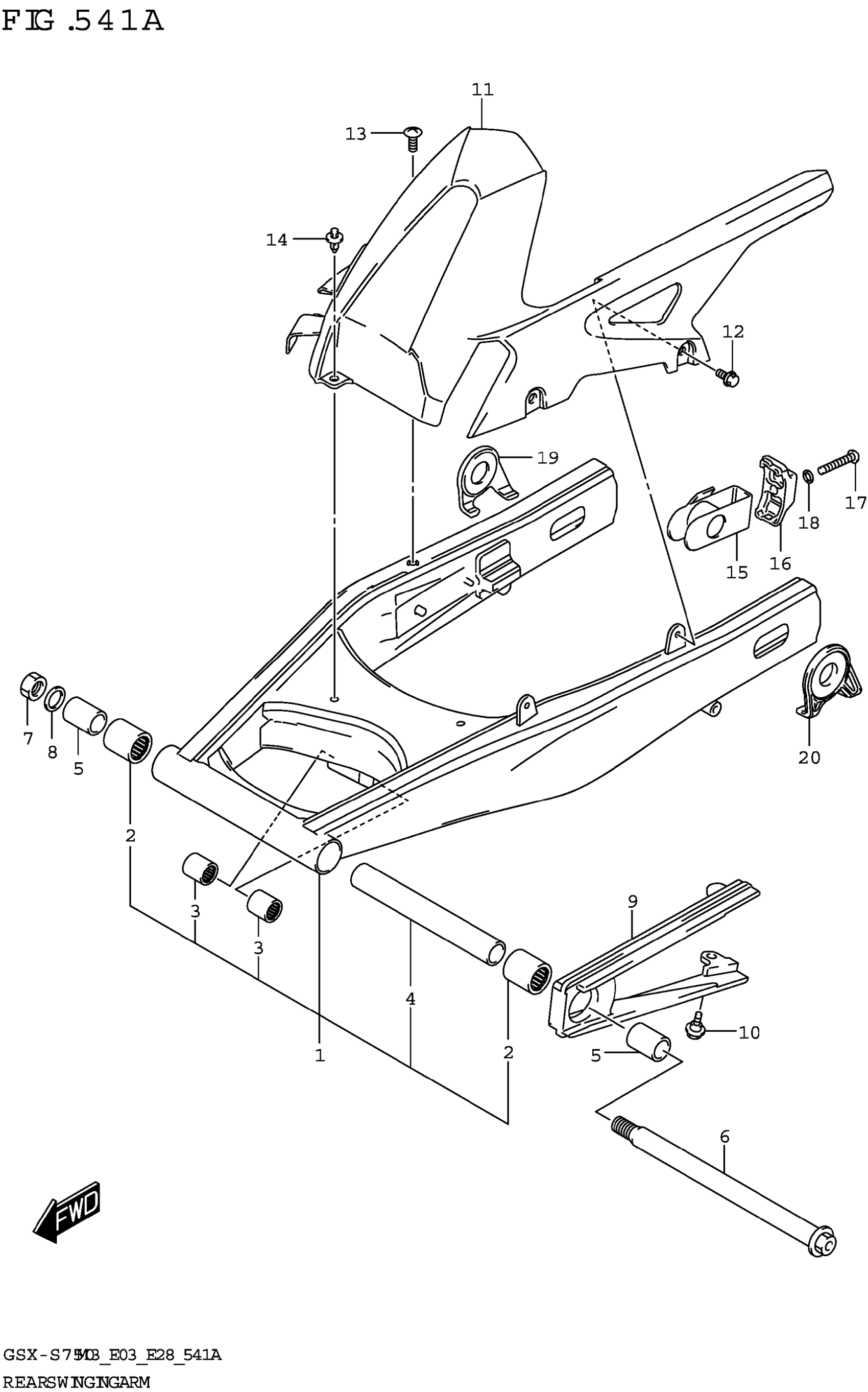

Suzuki GSX-S75032 (2023) REAR SWINGINGARM Diagram
