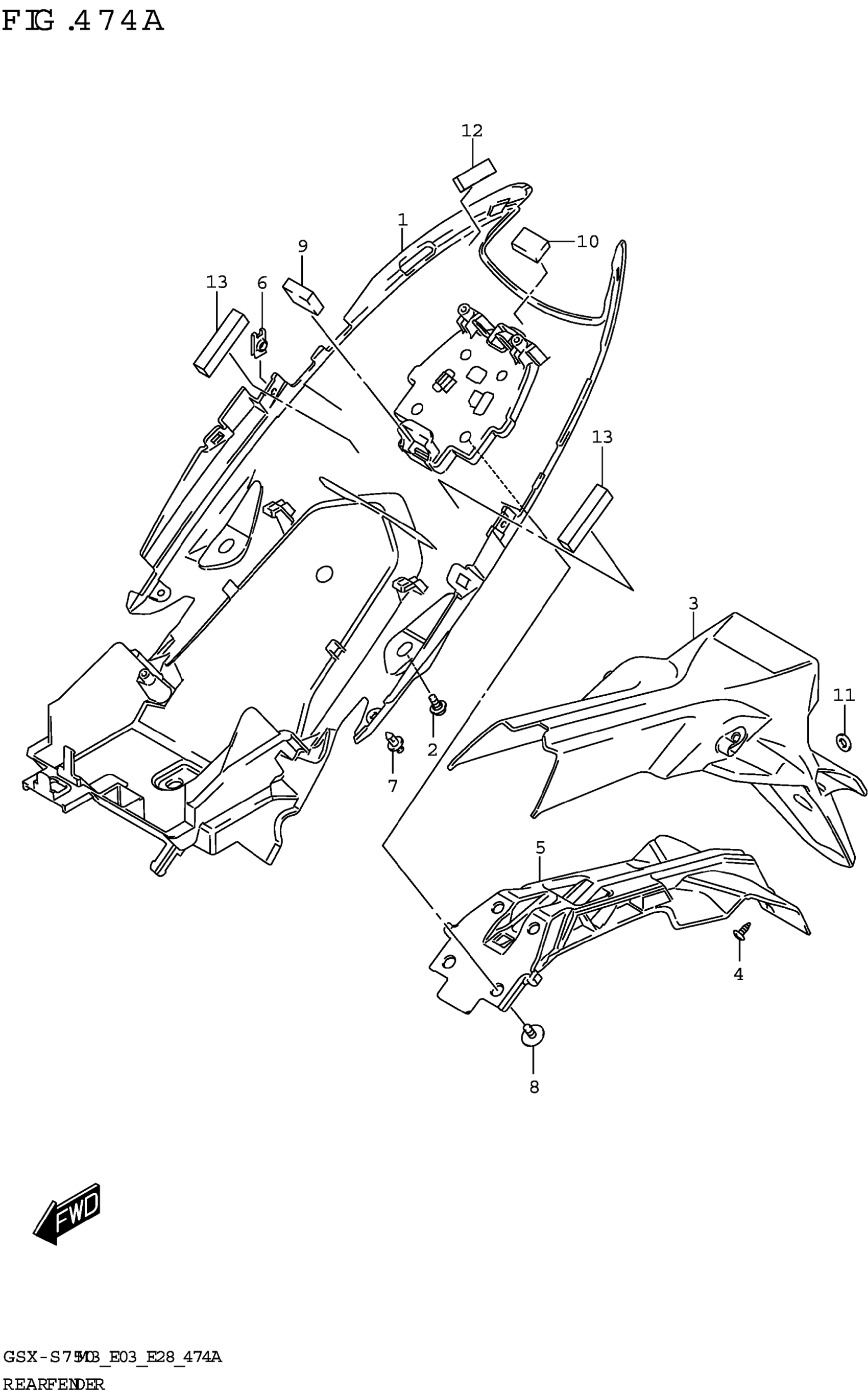

Suzuki GSX-S75032 (2023) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR FRONT

63111-13K00

$128.60

2

BOLT (6X12)

09111-06107

$2.66

3

FENDER,REAR REAR OUTER

63113-04K00

$104.15

4

SCREW

03541-0516A

$1.37

5

FENDER,REAR REAR INNER

63116-13K01

$96.43

6

NUT (M5)

09148-05038

$1.97

7

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

8

BOLT,REAR FENDER REAR

63160-13K00

$5.58

9

.CUSHION (20X30X15)

17798-29E30

$6.12

10

CUSHION This part replaces 63411-35B00.

51827-01A00

$6.95

11

WASHER

08322-0106B

$2.24

12

CUSHION (10X30X6)

33652-47F00

$3.38

13

CUSHION (8X50X8)

47122-17K00

$2.00
