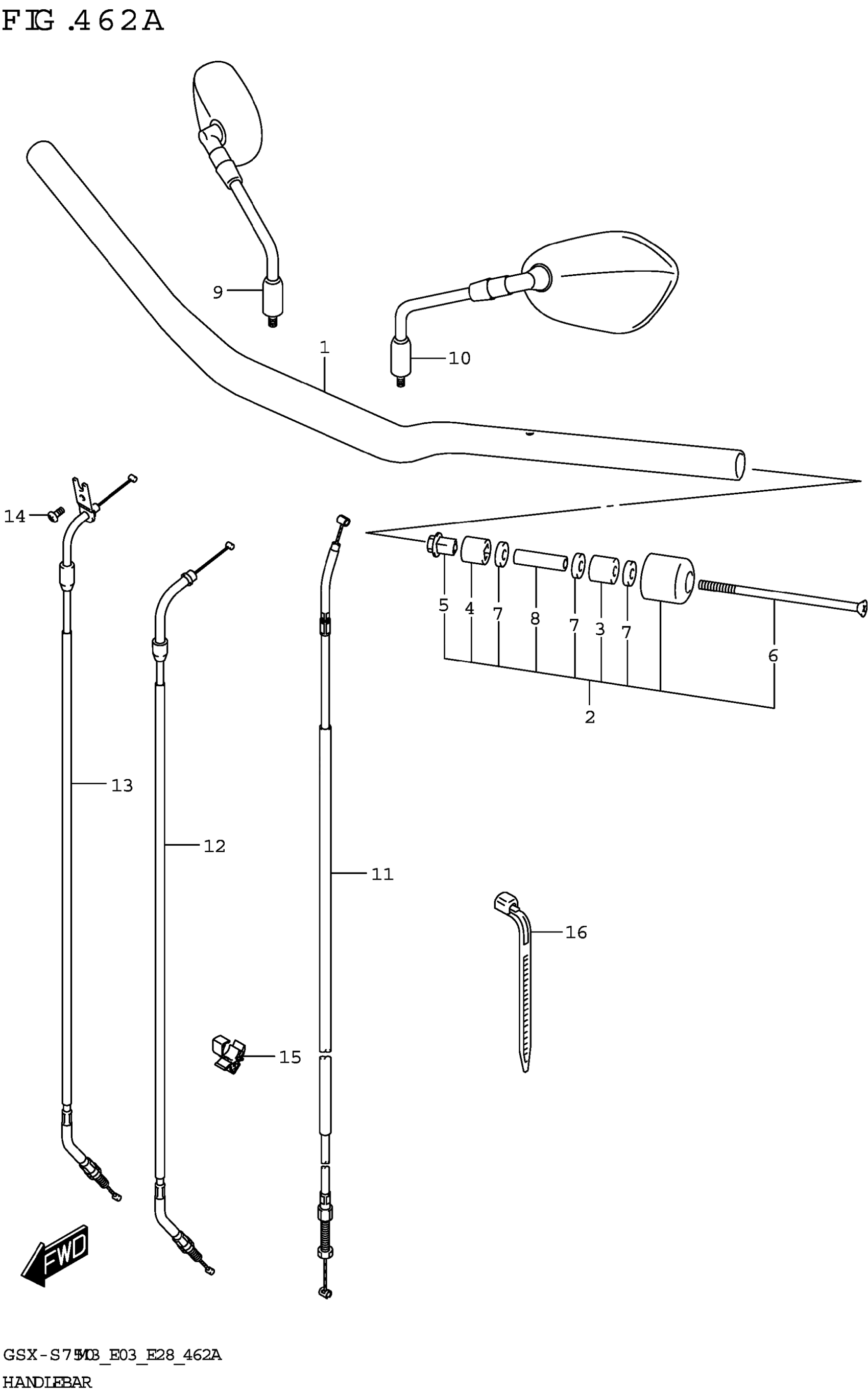

Suzuki GSX-S75032 (2023) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-13K10

$292.67

2

BALANCER SET,HANDLE

56200-11861

$23.40

3

.EXPANDER,HANDLE BALANCER

56272-10G01

$4.72

4

.EXPANDER,HANDLE BALANCER

56272-42F00

$5.45

5

.NUT,HANDLE BALANCER

56273-10G10

$8.65

6

.SCREW (6X110)

09127-06018

$3.38

7

.WASHER (6.5X16X4)

09160-06131

$2.50

8

.SPACER (6.5X10X27.5)

09180-06298

$3.15

9

MIRROR ASSY,REAR VIEW,R

56500-08J02

$119.48

10

MIRROR ASSY,REAR VIEW,L

56600-08J02

$121.55

11

CABLE ASSY,CLUTCH

58200-13K01

$26.42

12

CABLE ASSY,THROTTLE NO.1

58300-13K02

$56.95

13

CABLE ASSY,THROTTLE NO.2

58300-13K12

$51.80

14

SCREW

02142-0510B

$1.78

15

CLAMP

09403-11321

$3.93

16

CLAMP (L:165)

09407-18402

$2.19
