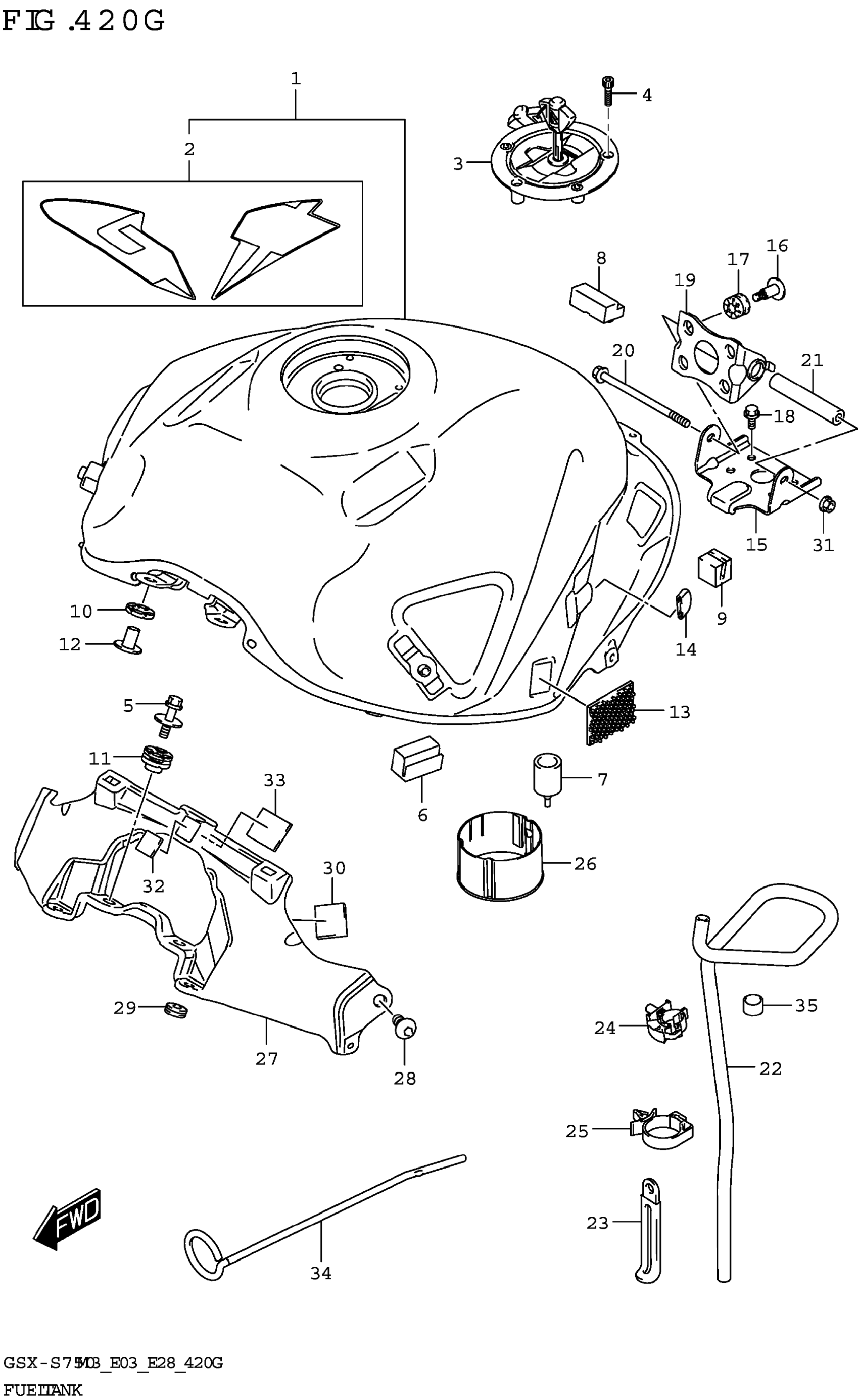

Suzuki GSX-S75032 (2023) FUEL TANK ((GSX-S750Z,GSX-S750ZA):E33) Diagram

#

Description
Price

1-1

TANK ASSY,FUEL (BLACK) | BODY COLOR:KEL

44100-13K90-YVB

$1,043.50

1-2

TANK ASSY,FUEL (BLACK) | BODY COLOR:BD7

44100-13K90-6UX

$974.53

1-3

TANK ASSY,FUEL (BLACK) | BODY COLOR:B55

44100-13K90-44X

$974.53

2-1

.TAPE SET,FUEL TANK (BLUE,BLA | K) BODY COLOR:KEL

68110-13K20-KEL

$38.00

2-2

.TAPE SET,FUEL TANK (GRAY,BLA | K) BODY COLOR:BD7

68110-13K20-BD7

$32.20

2-3

.TAPE SET,FUEL TANK (BLACK,WH | TE) BODY COLOR:B55

68110-13K20-B1G

$38.00

3

CAP SET,FUEL TANK FILLER

44200-17820

$218.08

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

5

BOLT (6X30)

09116-06172

$2.50

6

CUSHION, FUEL TANK SIDE

44541-08J01

$5.45

7

CUSHION,FUEL TANK RR

44542-41G00

$7.69

8

CUSHION, FUEL TANK REAR

44543-13K00

$10.08

9

CUSHION, FUEL TANK REAR

44544-13K00

$10.08

10

CUSHION, FUEL TANK FR LWR

44511-13K00

$5.98

11

CUSHION, FUEL TANK FR UPR

44512-13K00

$14.80

12

SPACER,FUEL TANK FRONT

44512-17K00

$5.98

13

FASTENER (33X25X2.6)

44572-13G00

$11.07

14

CUSHION,FUEL TANK COVER SIDE

44542-08J01

$3.65

15

BRACKET, FUEL TANK RR NO.2

44551-13K00

Unavailable

16

SCREW (6X24)

09139-06203

Unavailable

17

CUSHION (8X18X16)

09320-08089

Unavailable

18

BOLT

01550-0612A

$1.97

19

BRACKET, FUEL TANK REAR

44530-04K00

Unavailable

20

BOLT (6X100)

09106-06135

$5.53

21

SPACER,FUEL TANK RR

44561-18G00

$16.96

22

HOSE, FUEL TANK DRAIN

44423-13K00

$27.12

23

CLAMP (L:80)

09404-06030

Unavailable

24

CLAMP

09403-18307

$3.03

25

CLAMP

09403-18409

$2.22

26

VESSEL,FUEL TANK INNER

44121-17K01

$16.35

27

BRACKET, FUEL TANK FRONT

44521-13K00

$44.08

28

BOLT (6X16)

09113-06013

$2.23

29

CUSHION (6X18X6)

09320-06504

$4.96

30

CUSHION (20X30X2)

44556-33H00

$7.66

31

NUT

08319-3106A

$2.03

32

.CUSHION (15X15X1)

94429-20K00

$2.48

33

FASTENER (33X25X2.6)

44572-13G00

$11.07

34

STAY,FUEL TANK | OPT

44574-16G00

$26.72

35

HOSE (11X15X10)

09352-11154-010

Unavailable
