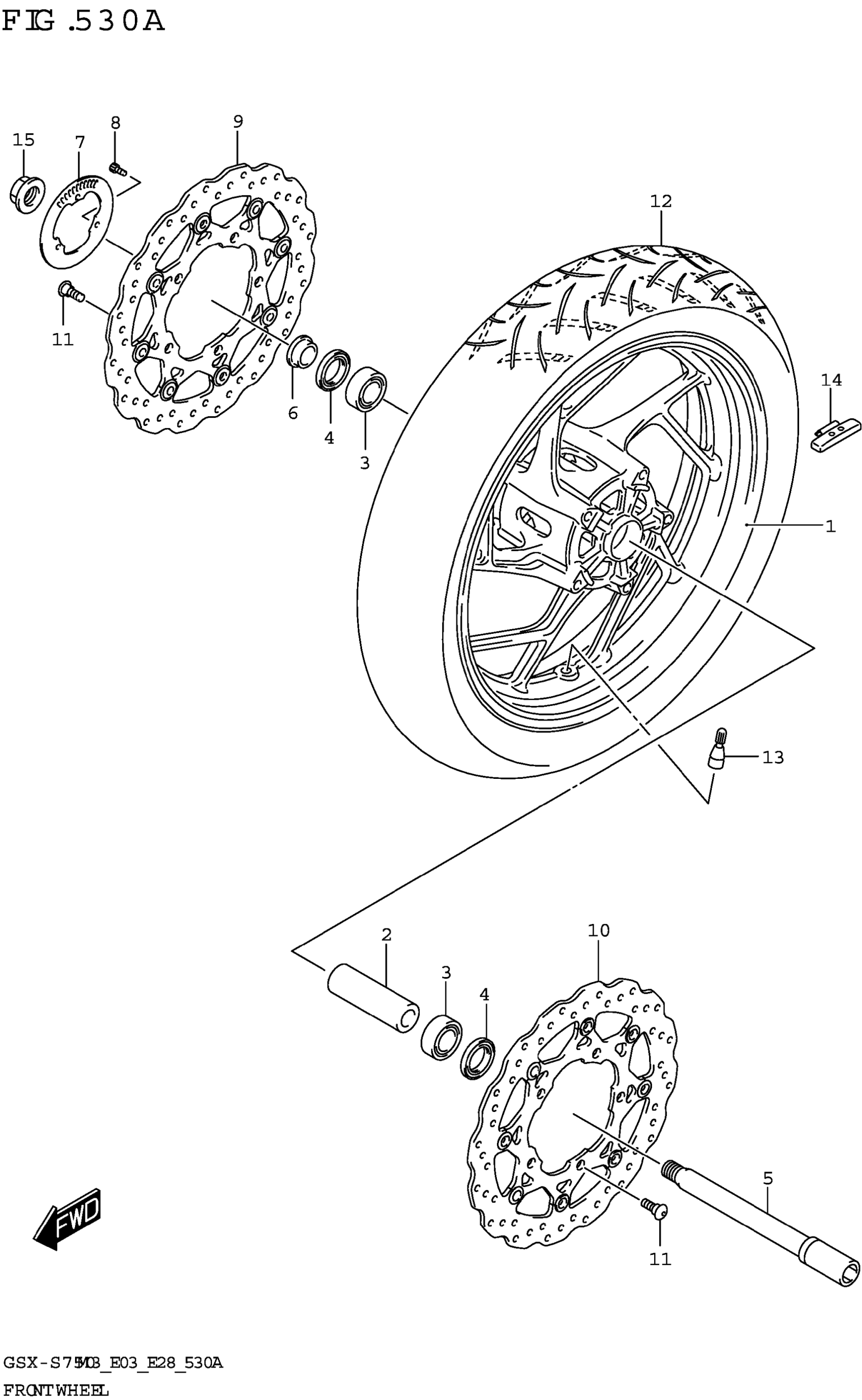

Suzuki GSX-S75032 (2023) FRONT WHEEL (GSX-S750,GSX-S750A) Diagram

Description

Price

WHEEL, FRONT (17M/CXMT3.50,BL | CK)

54111-13K00-019

$742.35

SPACER,FR HUB BEARING

54731-14J00

$21.58

BEARING

09262-22049

$43.81

SEAL,OIL

09283-28028

$9.13

AXLE,FR

54711-14J00

$143.18

SPACER,FR AXLE,L

54751-14J00

$18.33

RING,SPEED SENSOR FR (50T)

54162-44H00

$23.73

BOLT

07130-0512A

$2.19

DISC,FRONT BRAKE,R

59210-13K00

$320.08

DISC,FRONT BRAKE,L

59220-13K00

$320.08

BOLT (8X21)

09106-08160

$3.57

TIRE, FRONT (120/70ZR17M/C 58 | )

55110-13K00

$357.25

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

14-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

14-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

14-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47

NUT,RR SHOCK ABS BRACKET

62994-47H00

$42.02
