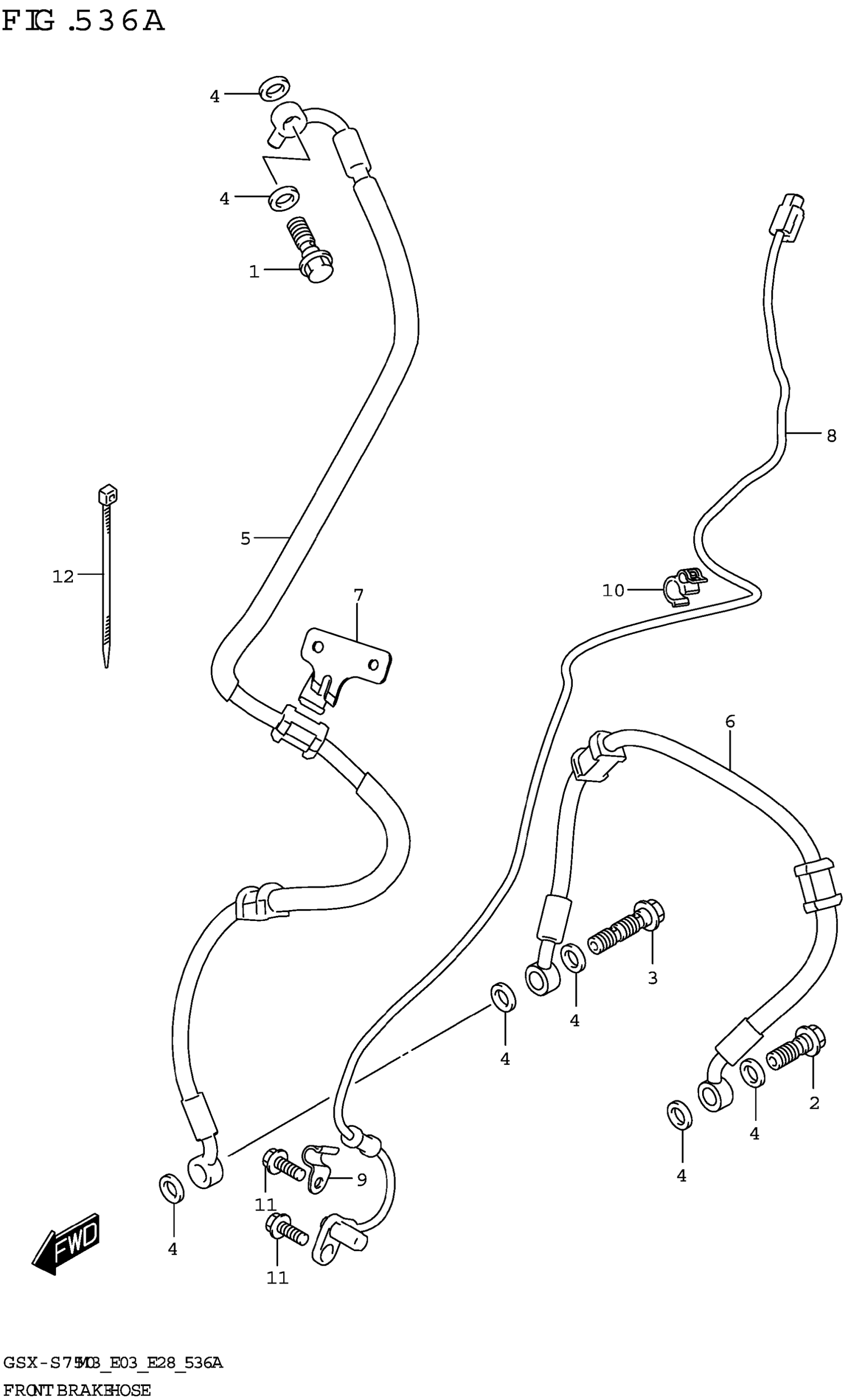

Suzuki GSX-S75032 (2023) FRONT BRAKE HOSE (GSX-S750,GSX-S750Z) Diagram

#

Description
Price

1

UNION This part replaces 09360-10042.

09360-10062

$6.43

2

UNION This part replaces 09360-10042.

09360-10062

$6.43

3

UNION

09360-10069

$6.20

4

WASHER (10X15X1.5)

09161-10009

$1.84

5

HOSE ASSY, FRONT BRAKE NO.1

59480-13K00

$111.83

6

HOSE, FRONT BRAKE NO.2

59240-13K01

Unavailable

7

CLAMP, FRONT BRAKE HOSE NO.1

59261-13K00

Unavailable

8

SENSOR, FRONT WHEEL SPEED

55710-13K00

$211.40

9

CLAMP,ABS SENSOR FR

55731-15H00

$4.83

10

CLAMP

09408-00266

$2.51

11

BOLT

01547-0616B

$2.45

12

CLAMP (L:145)

09407-14407

$3.57
