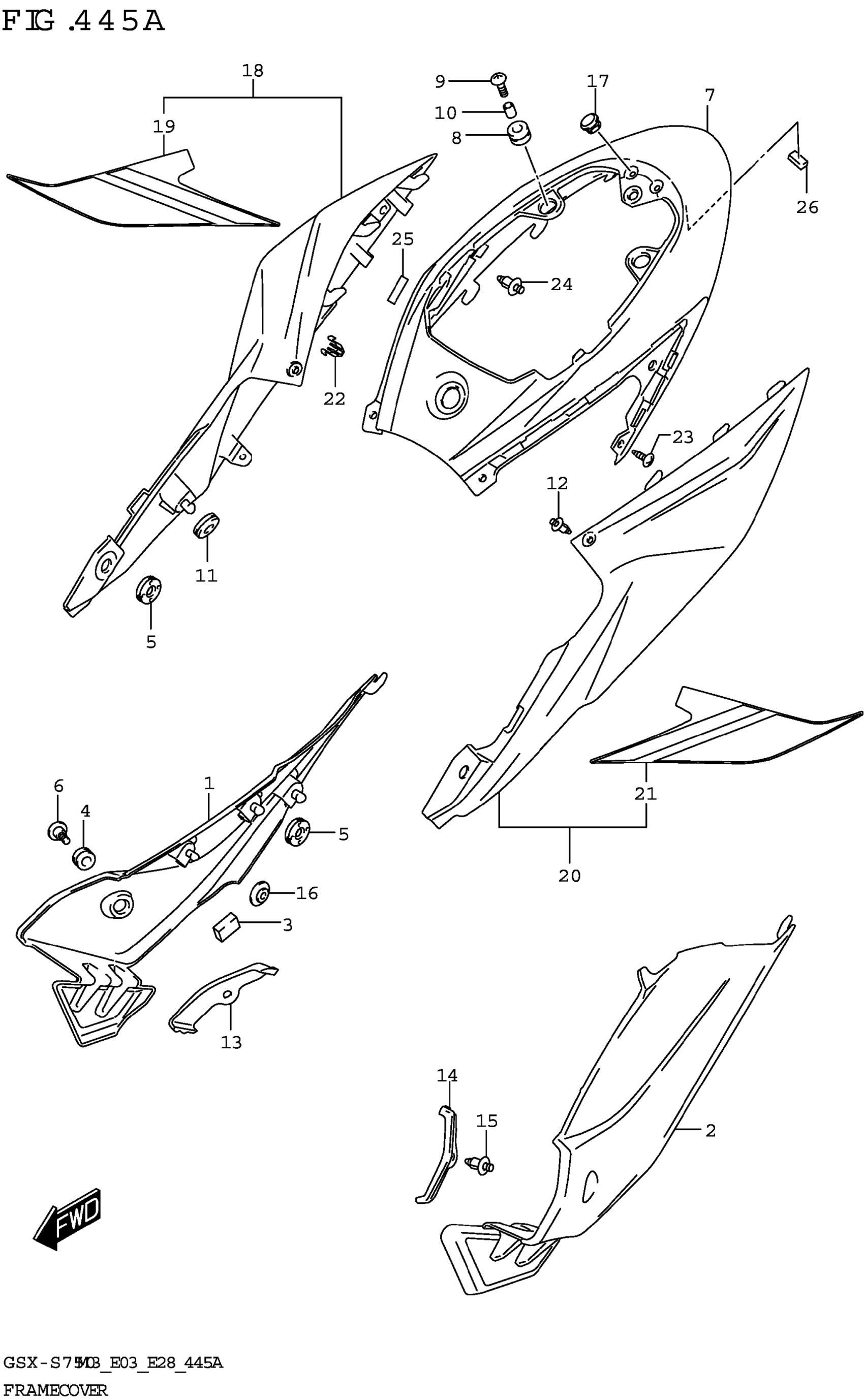

Suzuki GSX-S75032 (2023) FRAME COVER (GSX-S750,GSX-S750A) Diagram

#

Description
Price

1

COVER, FRAME FRONT RH

47511-13K00

$145.62

2

COVER, FRAME FRONT LH

47611-13K00

$87.93

3

CUSHION (20X30X8)

94422-06G00

$5.82

4

CUSHION (9X18X9.5)

09320-09016

$1.97

5

CUSHION (8X26X7)

09320-08028

$3.04

6

SCREW (6X20)

47118-08J00

$4.35

7

COVER, FRAME CENTER (BLACK)

47311-13K00-YKV

$219.47

8

CUSHION,FRAME COVER CTR

47312-37H20

$2.45

9

SCREW (6X20)

09136-06105

$1.97

10

SPACER (6.5X10X7)

09180-06283

$1.91

11

CUSHION (8x26x7)

09320-08018

$3.04

12

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

13

COVER,FRAME TOP RH

47711-08J00

$7.35

14

COVER,FRAME TOP LH

47811-08J00

$7.35

15

CLIP (D:2.4,ID:23.7)

09409-07333

$2.31

16

CUSHION

09320-06026

$4.10

17

CUSHION,SEAT MOUNT

45148-27J00

$17.72

18

COVER,FRAME RH (BLACK)

47110-13K30-4UX

$152.63

19

.TAPE, FRAME COVER RH (BLACK)

68135-13K30-KGL

Unavailable

20

COVER,FRAME LH (BLACK)

47210-13K30-4UX

$127.05

21

.TAPE, FRAME COVER LH (BLACK)

68145-13K30-KGL

Unavailable

22

CLIP (10.5X14.3)

09409-08326

$2.48

23

SCREW

03541-0512B

$1.78

24

CLIP (D:2.4,ID:23.7)

09409-07333

$2.31

25

CUSHION (10X30X2)

44894-24A00

$1.72

26

CUSHION (10X30X8)

63211-26G00

$9.75
