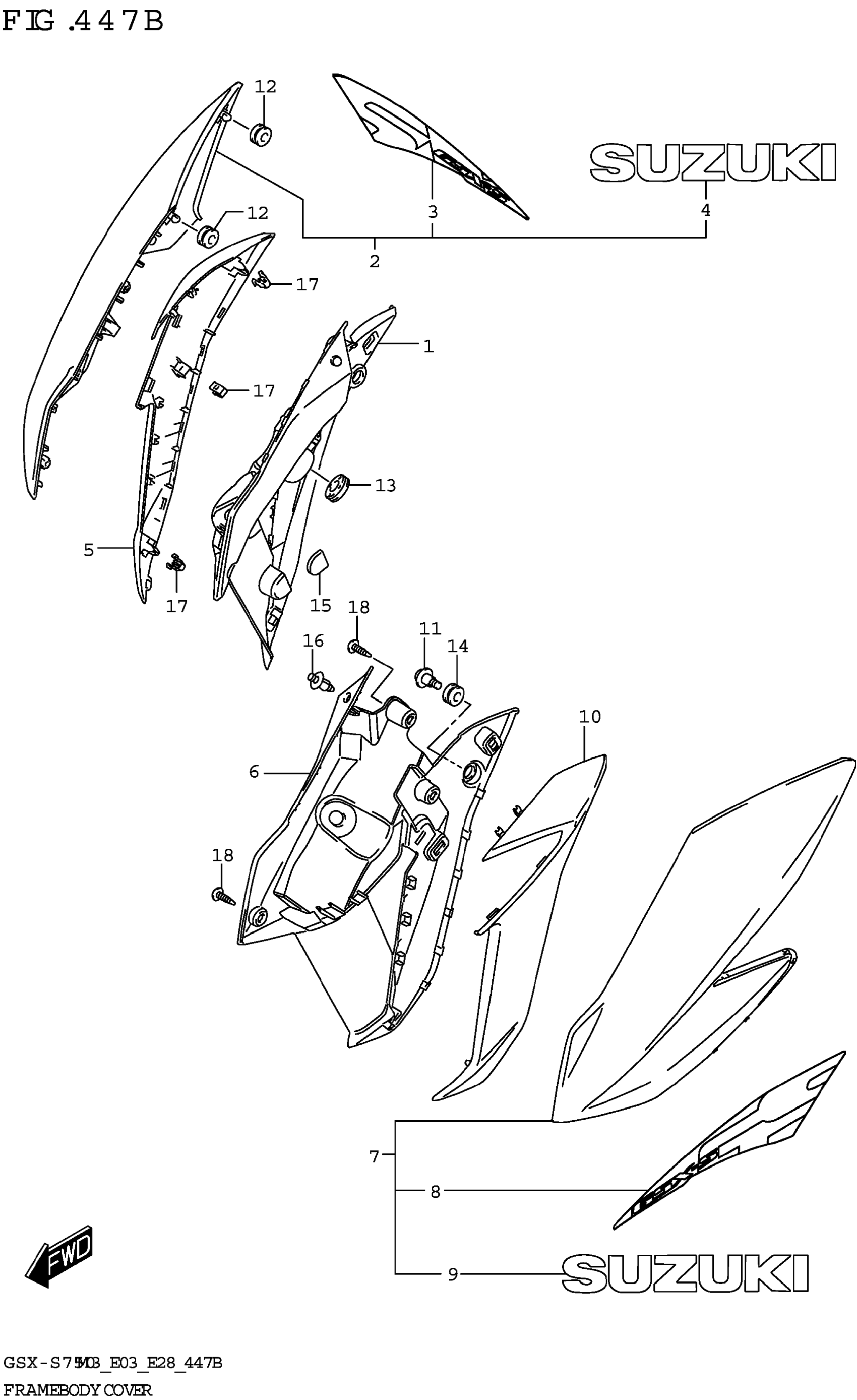

Suzuki GSX-S75032 (2023) FRAME BODY COVER (GSX-S750Z,GSX-S750ZA) Diagram

#

Description
Price

1

COVER,FRAME BODY INNER RH

47531-13K00

$56.47

2-1

COVER,FRAME BODY,R (BLUE) | BODY COLOR:KEL

47530-13K40-YSF

$87.97

2-2

COVER,FRAME BODY,R (BLACK) | BODY COLOR:BD7

47530-13K40-YVB

$90.17

2-3

COVER,FRAME BODY,R (WHITE) | BODY COLOR:B55

47530-13K40-YUH

$90.17

3-1

.TAPE,FRAME BODY COVER,R | BODY COLOR:KEL

68135-13K90-B6P

Unavailable

3-2

.TAPE,FRAME BODY COVER,R | BODY COLOR:BD7

68135-13K90-B6Q

Unavailable

3-3

.TAPE,FRAME BODY COVER,R | BODY COLOR:B55

68135-13K90-B6S

$22.45

4-1

.EMBLEM,"SUZUKI" (WHITE) | BODY COLOR:KEL

68271-04A10-YUH

$32.62

4-2

.EMBLEM,SUZUKI (SILVER) | BODY COLOR:BD7

68271-04A10-YES

$12.58

4-3

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:B55

68271-04A10-019

$14.30

5-1

COVER,FRAME BODY LWR,R (BLUE) | BODY COLOR:KEL

47533-13K00-YSF

$52.53

5-2

COVER,FRAME BODY LWR,R (GRAY) | BODY COLOR:BD7

47533-13K00-QEB

$45.32

5-3

COVER,FRAME BODY LWR,R (WHITE | BODY COLOR:B55

47533-13K00-YUH

$38.53

6

COVER,FRAME BODY INNER LH

47541-13K00

$56.47

7-1

COVER,FRAME BODY,L (BLUE) | BODY COLOR:KEL

47540-13K40-YSF

$87.97

7-2

COVER,FRAME BODY,L (BLACK) | BODY COLOR:BD7

47540-13K40-YVB

$90.17

7-3

COVER,FRAME BODY,L (WHITE) | BODY COLOR:B55

47540-13K40-YUH

$90.17

8-1

.TAPE,FRAME BODY COVER,L | BODY COLOR:KEL

68145-13K90-B6P

$22.57

8-2

.TAPE,FRAME BODY COVER,L | BODY COLOR:BD7

68145-13K90-B6Q

Unavailable

8-3

.TAPE,FRAME BODY COVER,L | BODY COLOR:B55

68145-13K90-B6S

$26.27

9-1

.EMBLEM,"SUZUKI" (WHITE) | BODY COLOR:KEL

68271-04A10-YUH

$32.62

9-2

.EMBLEM,SUZUKI (SILVER) | BODY COLOR:BD7

68271-04A10-YES

$12.58

9-3

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:B55

68271-04A10-019

$14.30

10-1

COVER,FRAME BODY LWR,L (BLUE) | BODY COLOR:KEL

47543-13K00-YSF

$52.53

10-2

COVER,FRAME BODY LWR,L (GRAY) | BODY COLOR:BD7

47543-13K00-QEB

$45.85

10-3

COVER,FRAME BODY LWR,L (WHITE | BODY COLOR:B55

47543-13K00-YUH

$45.85

11

SCREW (6X20)

09139-06190

$4.17

12

CUSHION (6X18X6)

09320-06504

$4.96

13

CUSHION (8X26X7)

09320-08028

$3.04

14

CUSHION (9X18X9.5)

09320-09016

$1.97

15

CUSHION

09329-18001

$1.91

16

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

17

CLIP (10.5X14.3)

09409-08326

$2.48

18

SCREW

03541-0512A

$1.49
