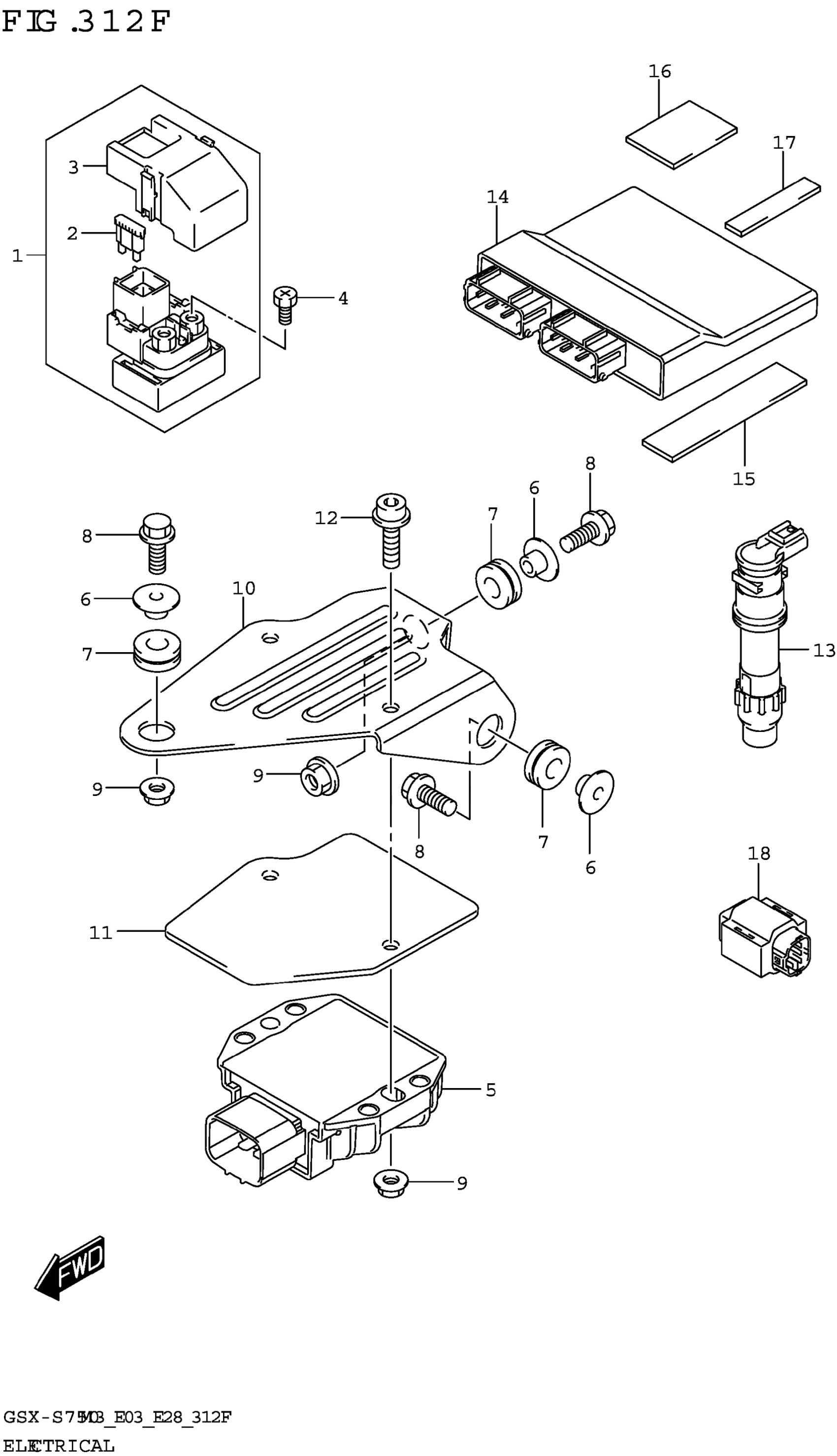

Suzuki GSX-S75032 (2023) ELECTRICAL ((GSX-S750,GSX-S750Z):E03) Diagram

RELAY ASSY,STARTING MOTOR

31800-06G02

$67.32

.FUSE (30A)

09481-30101

$2.26

.COVER

31861-47E00

$16.15

SCREW (6X8)

09128-06013

$1.49

RECTIFIER ASSY This part replaces 32800-19K02.

32800-19K03

$210.57

SPACER (6.2X8.4X6.1)

09180-06374

Unavailable

CUSHION (8.4X18X6)

09320-08066

$8.24

SCREW

02162-0620B

$2.28

NUT

08316-1006B

$2.50

BRACKET, RECTIFIER

32830-13K00

Unavailable

PLATE, RECTIFIER

32831-13K00

Unavailable

BOLT

07120-0625B

$3.60

COIL ASSY, IGNITION

33410-47H00

$150.98

CONTROL UNIT,FI

32920-13K91

$1,389.90

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

CUSHION (30X40X2.0)

33652-36100

$2.36

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

SENSOR ASSY,FUEL CUT

33960-27G00

$109.88
