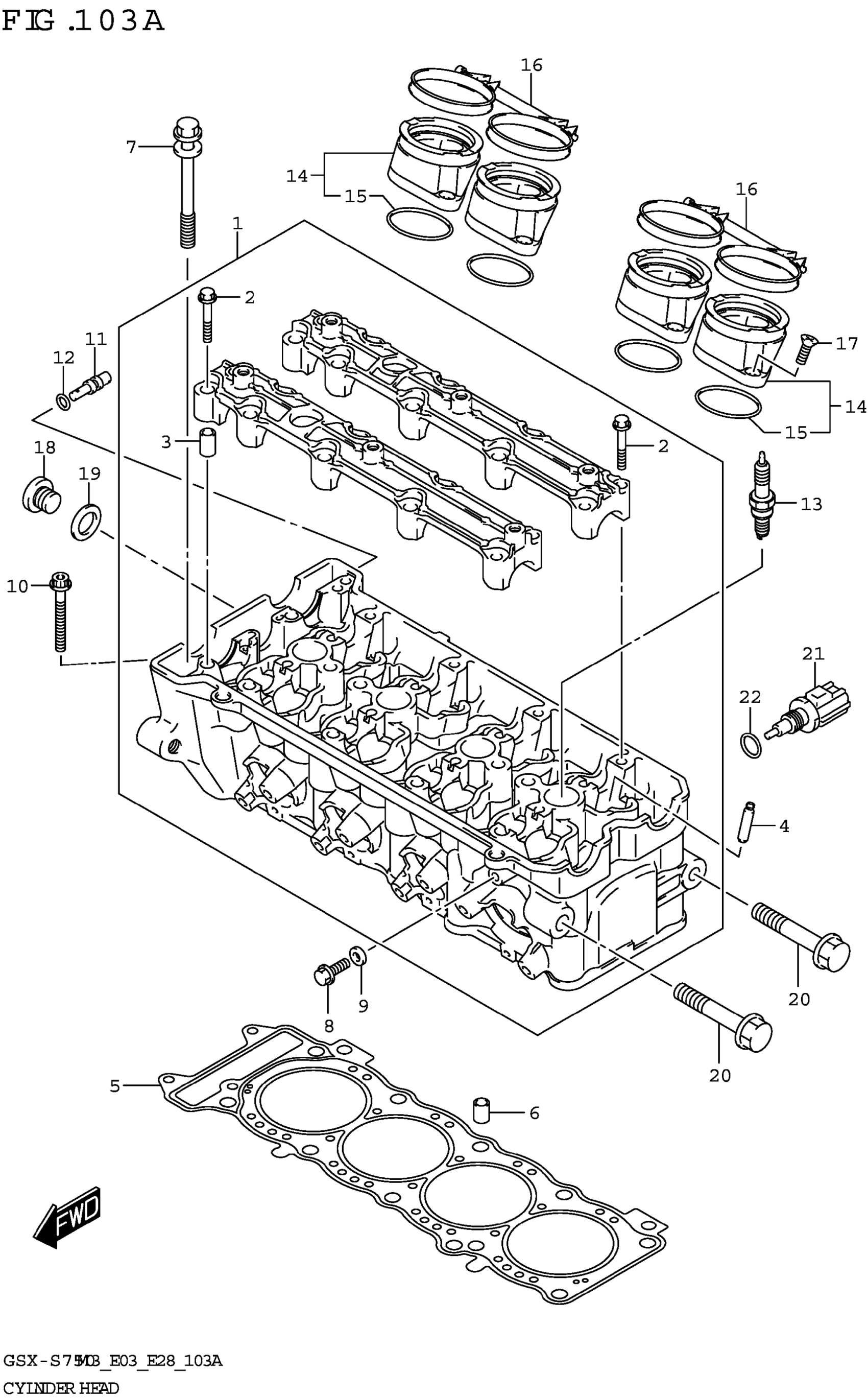

Suzuki GSX-S75032 (2023) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-13K00

Unavailable

2

.BOLT (6X40)

09103-06266

$2.12

3

.PIN (6.2X8X16)

09206-08007

$2.60

4

GUIDE,VALVE (OS 0.3) | OPT

11115-11D70

$40.73

5

.GASKET,CYLINDER HEAD

11141-35F00

$89.92

6

PIN

04211-11169

$1.78

7

BOLT, CYLINDER HEAD (L:105)

11117-30G00

$9.31

8

BOLT

01550-0612A

$1.97

9

GASKET (5.8X13X1.2)

09168-06023

$2.35

10

BOLT

07120-0650A

$3.16

11

JET (#8)

09493-80005

$16.25

12

O-RING (D:1.2,ID:4)

09280-04004

$1.91

13-1

PLUG,SPARK (IU27D)

09482-00557

$16.60

13-2

PLUG,SPARK (CR9EIA-9)

09482-00558

$12.14

13-3

PLUG,SPARK (IU24D)

09482-00555

$17.96

13-4

PLUG,SPARK (CR8EIA-9)

09482-00556

$10.85

13-5

PLUG,SPARK (IU31D)

09482-00559

$20.10

13-6

PLUG,SPARK (CR10EIA-9)

09482-00560

$10.85

14

PIPE ASSY,INTAKE

13101-08J01

Unavailable

15

O-RING (D:2.4,ID:39.7)

09280-40020

$2.91

16

CLAMP,INTAKE PIPE

13170-08J00

$29.45

17

SCREW

02122-0616B

$1.96

18

PLUG (16X8)

09248-16012

$4.64

19

GASKET (16X22X0.8)

09168-16009

$2.50

20

BOLT, ENG MTG HEAD (L:50)

09106-10094

$5.05

21

SENSOR,TEMP

13650-49X00

$90.19

22

GASKET (12X17X1)

09168-12017

$1.95
