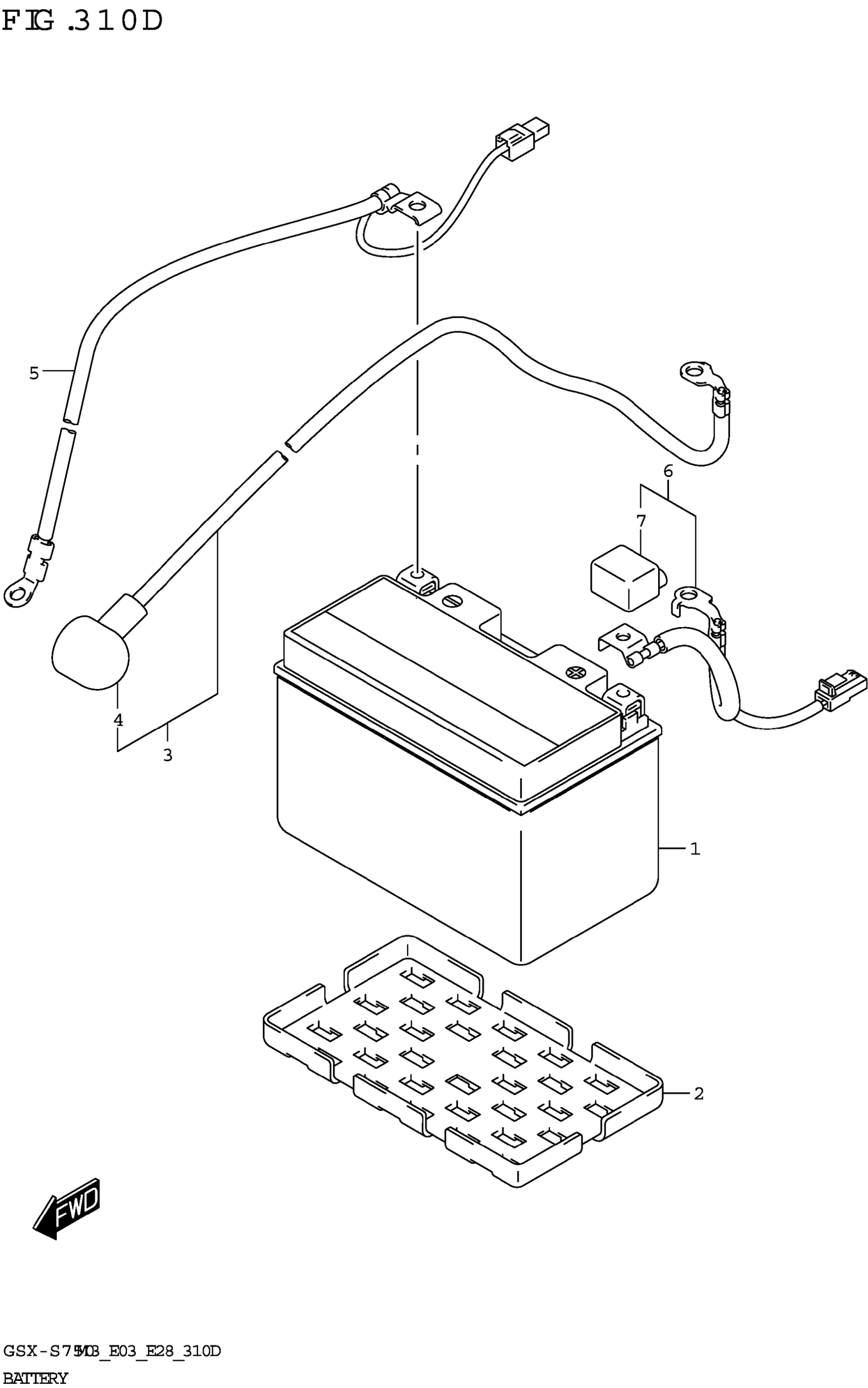

Suzuki GSX-S75032 (2023) BATTERY (E03,E33) Diagram

#

Description

Price

1

BATTERY ASSY (FT12A-BS,12V10AH) | H) This part replaces 33630-14G02.

33610-14G11

$120.22

2

PROTECTOR,BATTERY

33652-16G00

$11.95

3

WIRE, STARTER MOTOR LEAD

33810-13K00

Unavailable

4

.CAP,STARTER MOTOR

33624-18H10

$9.90

5

WIRE,BATTERY MINUS LEAD

33860-08J00

Unavailable

6-1

WIRE, BATTERY PLUS LEAD | GSX-S750,GSX-S750Z

33820-13K00

$25.93

6-2

WIRE, BATTERY PLUS LEAD | GSX-S750A,GSX-S750ZA

33820-13K10

$24.23

7

.CAP,BATTERY PLUS

33624-16G00

$5.78
