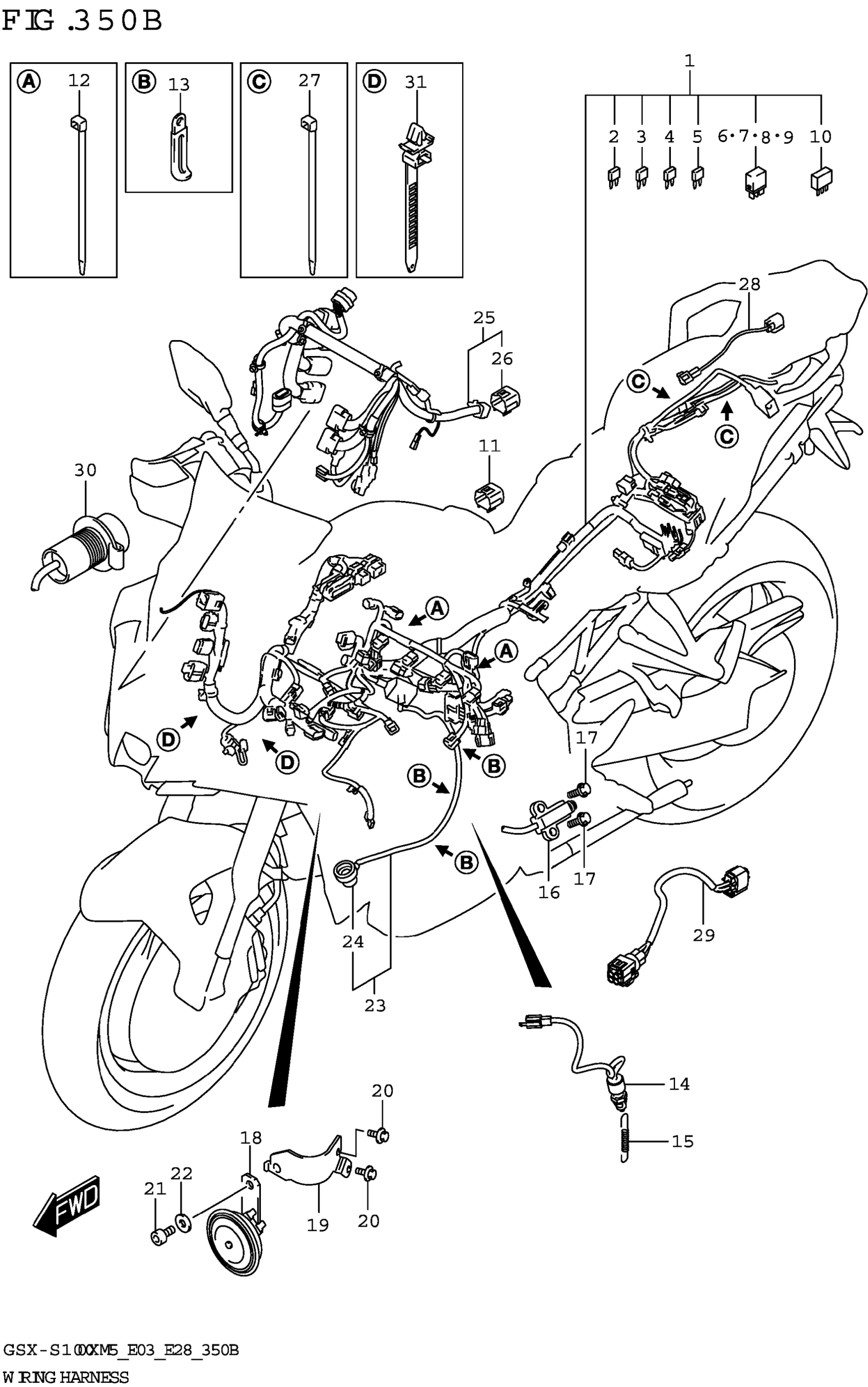

Suzuki GSX-S1000XRREM5 (2025) WIRING HARNESS (E33) Diagram

#

Description
Price

1

HARNESS,WIRING

36610-48KF0

Unavailable

2

.FUSE

09481-01501

$3.70

3

.FUSE (10A)

09481-10504

$2.04

4

.FUSE (15A)

09481-15504

$2.57

5

.FUSE (20A)

09481-20504

$2.08

6

.RELAY ASSY | FUEL PUMP

38860-76F01

$31.02

7

.RELAY ASSY | FAN MOTOR

38860-76F01

$31.02

8

.RELAY ASSY | STARTER

38860-76F01

$31.02

9

.RELAY ASSY | HORN

38860-76F01

$31.02

10

.DIODE

36611-38A10

$12.39

11

CAP,OBD CONNECTOR

36654-28K00

$9.85

12

CLAMP This part replaces 09407-20405.

09407-25402

$4.19

13

CLAMP, OIL PRESS LEAD

36651-07L00

$15.70

14

SWITCH ASSY, STOP LAMP

37740-48K01

$84.88

15

SPRING, BRAKE LAMP SWITCH

43232-48K00

$2.37

16

SWITCH ASSY, SIDE STAND

37840-48K00

$112.35

17

BOLT (6X20)

01550-0620A

$1.97

18

HORN ASSY

38500-48K00

$44.63

19

PLATE, HORN

38590-04K10

$15.10

20

BOLT (6X16)

09116-06006

$1.88

21

BOLT

07130-0812A

$4.03

22

WASHER (8.5X22X2.0)

09160-08127

$2.13

23

WIRE, OIL PRESSURE SWITCH LEA

36851-48K00

$18.00

24

.CAP,OIL PRESSURE SWITCH

36618-31J00

Unavailable

25

HARNESS,WIRING NO.2

36620-48KC0

$346.85

26

CAP,TS

36654-06J01

$15.63

27

CLAMP (L:190)

09407-19401

$3.32

28

WIRE,REAR COMB LAMP LEAD

36853-48KA0

$22.42

29

WIRE,INERTIAL SENSOR LEAD

36854-48KA0

$33.75

30

SOCKET, USB

39105-48K00

$107.50

31

CLAMP (L:90)

09407-11402

$1.81
