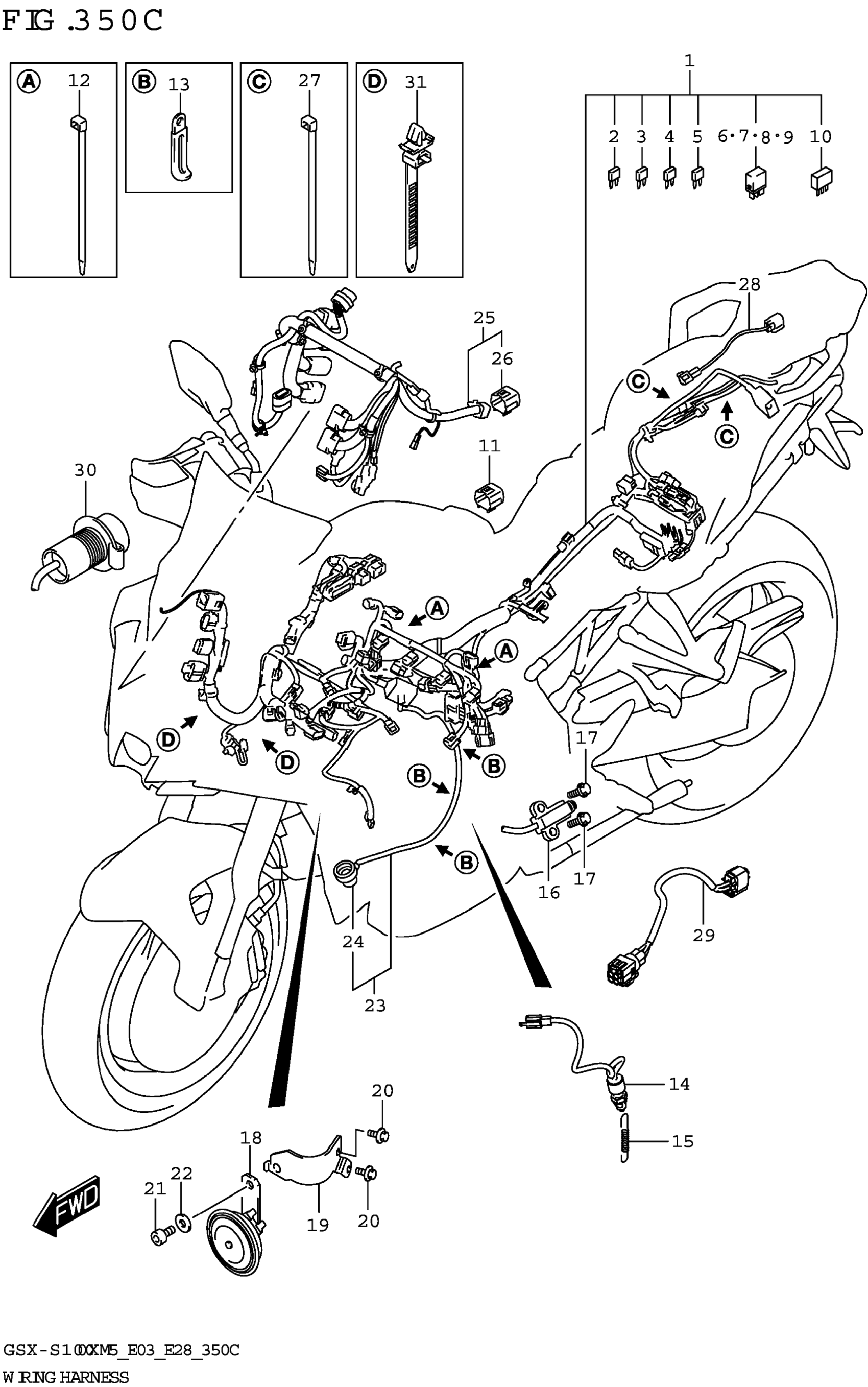

Suzuki GSX-S1000XRREM5 (2025) WIRING HARNESS (E03,E28) Diagram

#

Description
Price

1

HARNESS,WIRING

36610-48KH0

$795.50

2

.FUSE

09481-01501

$3.40

3

.FUSE (10A)

09481-10504

$2.06

4

.FUSE (15A)

09481-15504

$2.07

5

.FUSE (20A)

09481-20504

$1.92

6

.RELAY ASSY | FUEL PUMP

38860-76F01

$34.37

7

.RELAY ASSY | FAN MOTOR

38860-76F01

$34.37

8

.RELAY ASSY | STARTER

38860-76F01

$34.37

9

.RELAY ASSY | HORN

38860-76F01

$34.37

10

.DIODE

36611-38A10

$13.16

11

CAP,OBD CONNECTOR

36654-28K00

$8.72

12

CLAMP This part replaces 09407-20405.

09407-25402

$4.64

13

CLAMP, OIL PRESS LEAD

36651-07L00

$13.92

14

SWITCH ASSY, STOP LAMP

37740-48K01

$75.57

15

SPRING, BRAKE LAMP SWITCH

43232-48K00

$2.10

16

SWITCH ASSY, SIDE STAND

37840-48K00

$100.02

17

BOLT (6X20)

01550-0620A

$1.97

18

HORN ASSY

38500-48K00

$39.55

19

PLATE, HORN

38590-04K10

$13.38

20

BOLT (6X16)

09116-06006

$1.86

21

BOLT

07130-0812A

$3.72

22

WASHER (8.5X22X2.0)

09160-08127

$2.12

23

WIRE, OIL PRESSURE SWITCH LEA

36851-48K00

$15.95

24

.CAP,OIL PRESSURE SWITCH

36618-31J00

Unavailable

25

HARNESS,WIRING NO.2

36620-48KC0

$311.68

26

CAP,TS

36654-06J01

$13.85

27

CLAMP (L:190)

09407-19401

$3.05

28

WIRE,REAR COMB LAMP LEAD

36853-48KA0

$19.87

29

WIRE,INERTIAL SENSOR LEAD

36854-48KA0

$29.90

30

SOCKET, USB

39105-48K00

$95.72

31

CLAMP (L:90)

09407-11402

$1.80
