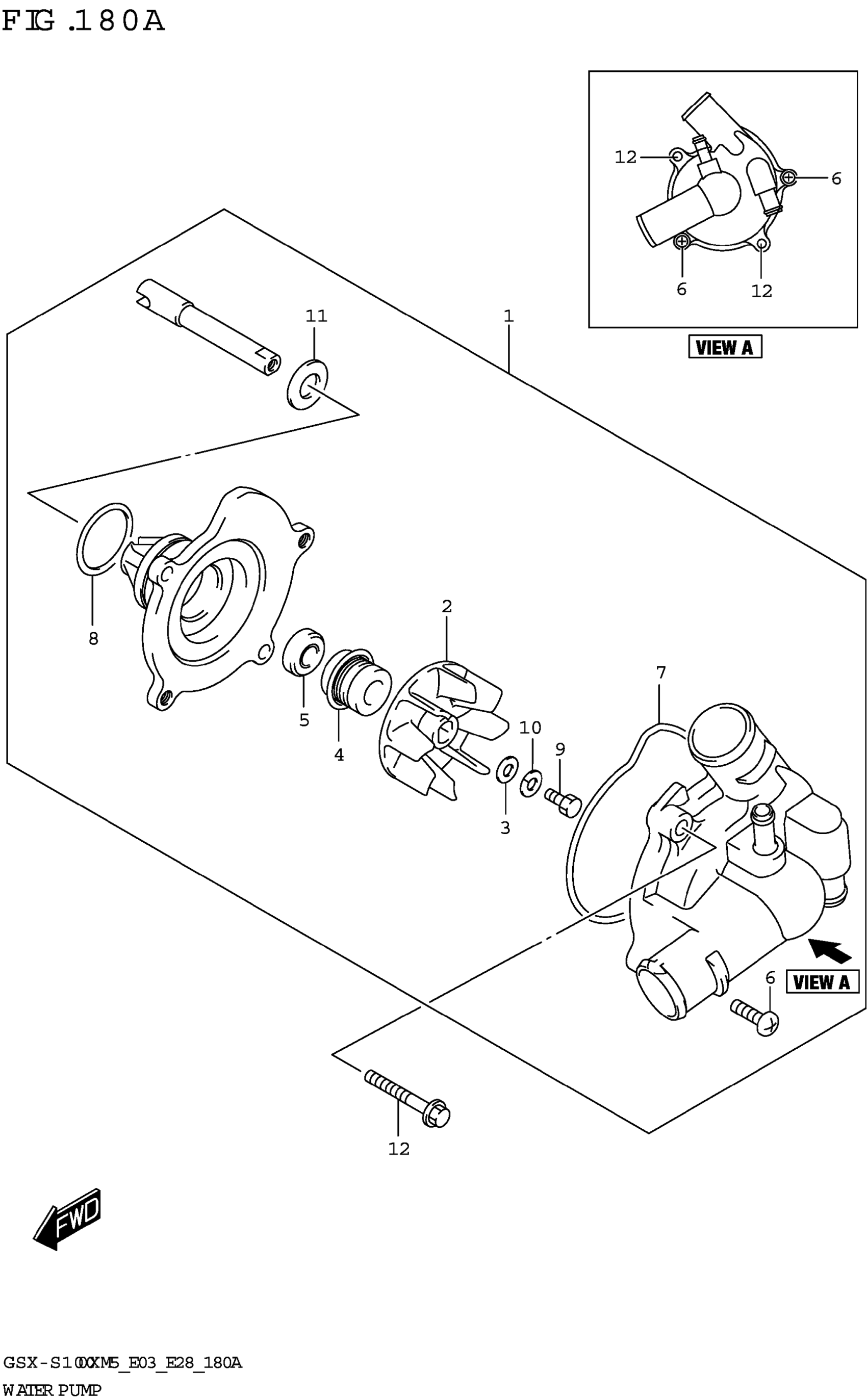

Suzuki GSX-S1000XRREM5 (2025) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY, WATER

17400-04K10

$244.40

2

.IMPELLER

17491-17E01

$25.21

3

.GASKET (6X15X2.2)

09168-06025

$2.80

4

.SEAL,MECHANICAL

17470-02F11

$26.75

5

.SEAL,OIL (10X21X5)

17461-48G00

$12.45

6

.SCREW

02112-0616A

$1.43

7

.O-RING

17418-33401

$4.09

8

.O-RING

17435-33400

$13.99

9

.BOLT (6X13)

09100-06099

$2.08

10

.WASHER

09164-06006

$2.66

11

.WASHER

17432-07G00

$2.61

12

BOLT (L:35)

09103-06530

$1.68
