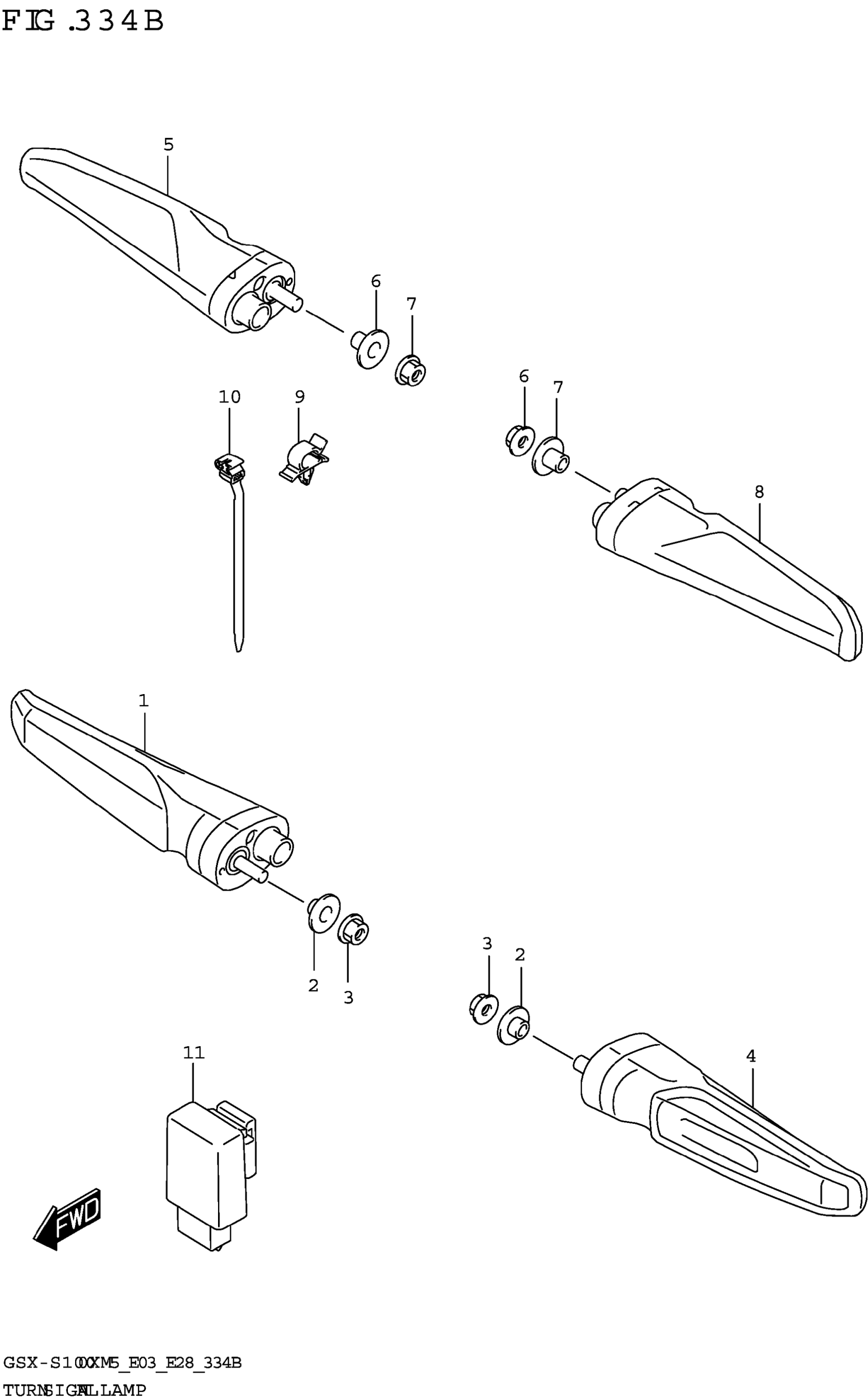

Suzuki GSX-S1000XRREM5 (2025) TURNSIGNAL LAMP Diagram

#

Description

Price

1

LAMP ASSY, FRONT TURNSIGNAL R

35601-06LG0

$118.73

2

WASHER

09169-06100

$1.49

3

NUT (6X12)

08316-1006A

$2.19

4

LAMP ASSY,FRONT TURNSIGNAL,L This part replaces 35602-06LG0.

35602-06LG1

$98.92

5

LAMP ASSY, REAR TURNSIGNAL RH

35603-06LG0

$139.67

6

WASHER

09169-06100

$1.49

7

NUT (6X12)

08316-1006A

$2.19

8

LAMP ASSY, REAR TURNSIGNAL LH

35604-06LG0

$139.67

9

CLAMP

09403-10319

Unavailable

10

CLAMP

09407-14414

$2.13

11

RELAY ASSY, TURNSIGNAL

38610-06LA1

$72.60
