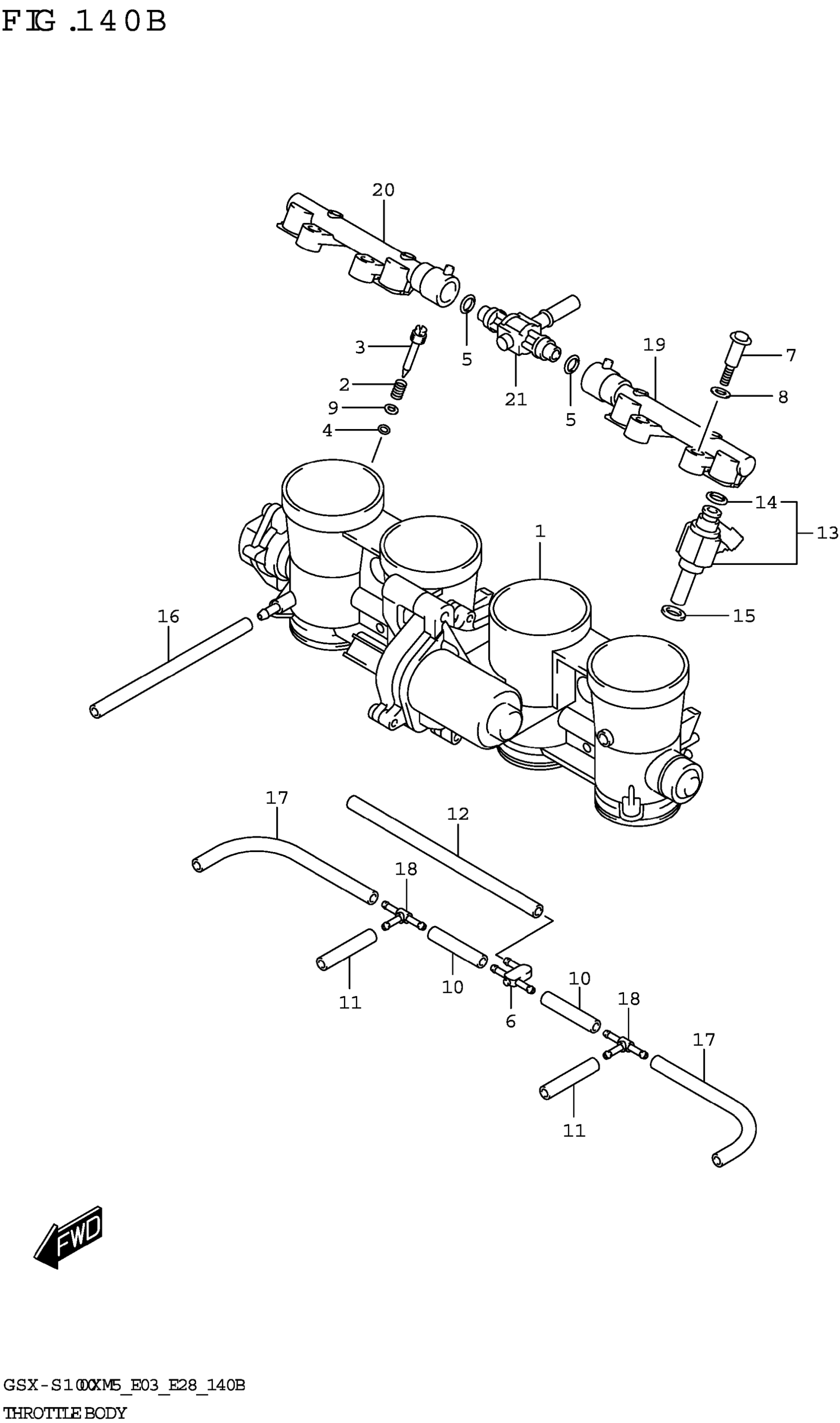

Suzuki GSX-S1000XRREM5 (2025) THROTTLE BODY (E03,E28) Diagram

#

Description
Price

1

BODY, THROTTLE

13405-48K10

$1,294.22

2

SPRING,THROTTLE SCREW

13268-48700

$3.97

3

SCREW

13269-33E00

$10.45

4

O-RING

13295-29901

$3.97

5

O-RING

13374-32G00

$8.15

6

JOINT

13471-18H00

$11.83

7

SCREW

13601-29G00

$3.22

8

PACKING

13602-29G01

$2.52

9

WASHER

13606-47A00

$3.70

10

.HOSE (3X7X600)

09355-30001-600

$7.83

11

HOSE

13683-07F01

$2.05

12

HOSE

13683-07F11

$6.28

13

INJECTOR ASSY

15710-04K00

$302.17

14

.O-RING

15717-58B00

$9.11

15

SEAL

15722-14J00

$10.70

16

HOSE (3.5X7.5X600) | 600>105

09355-35007-600

$6.35

17

HOSE (3.2X7.4X70)

13681-39F00-070

$3.37

18

3WAY,VACUUM HOSE

13685-02FA0

$7.95

19

DELIVERY PIPE

13471-10L00

$32.13

20

DELIVERY PIPE

13472-10L00

$32.13

21

NIPPLE ASSY

13473-17K00

$80.53
