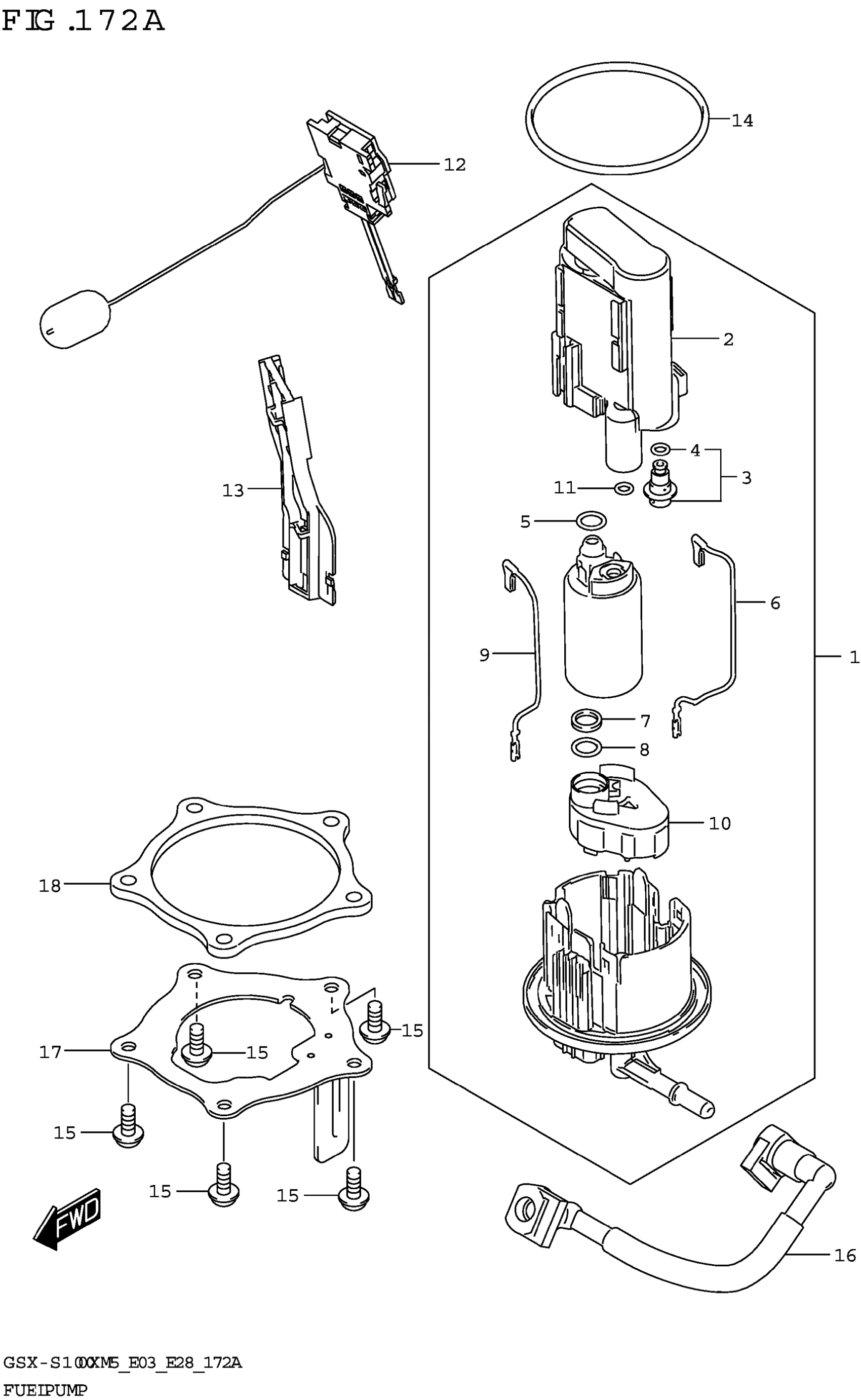

Suzuki GSX-S1000XRREM5 (2025) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, FUEL

15100-17K10

$530.58

2

.FILTER

15310-17K10

$72.05

3

.REGULATOR

15610-17K00

Unavailable

4

..O-RING

15113-48H00

$19.15

5

.O-RING

15113-05H00

$18.81

6

.WIRE,EARTH

15114-17K00

$45.18

7

.COLLAR

15116-17K00

$20.62

8

.O-RING

15113-17K00

$35.95

9

.WIRE,LEAD

15115-17K00

$45.18

10

.STRAINER

15420-17K00

$93.61

11

.O-RING

15113-35F00

$8.15

12

GAUGE ASSY,FUEL LEVEL SENDER

34810-48K10

$53.88

13

ATTACHMENT,FUEL LEVEL SENDER

34815-48K00

$8.45

14

O-RING,FUEL PUMP

15201-07L00

$19.22

15

BOLT

07120-0616A

$2.55

16

HOSE, FUEL

15810-04K01

$71.60

17

PLATE, FUEL PUMP OUTER

15120-04K00

$21.53

18

PLATE,FUEL PUMP INNER

15122-17K00

$49.37
