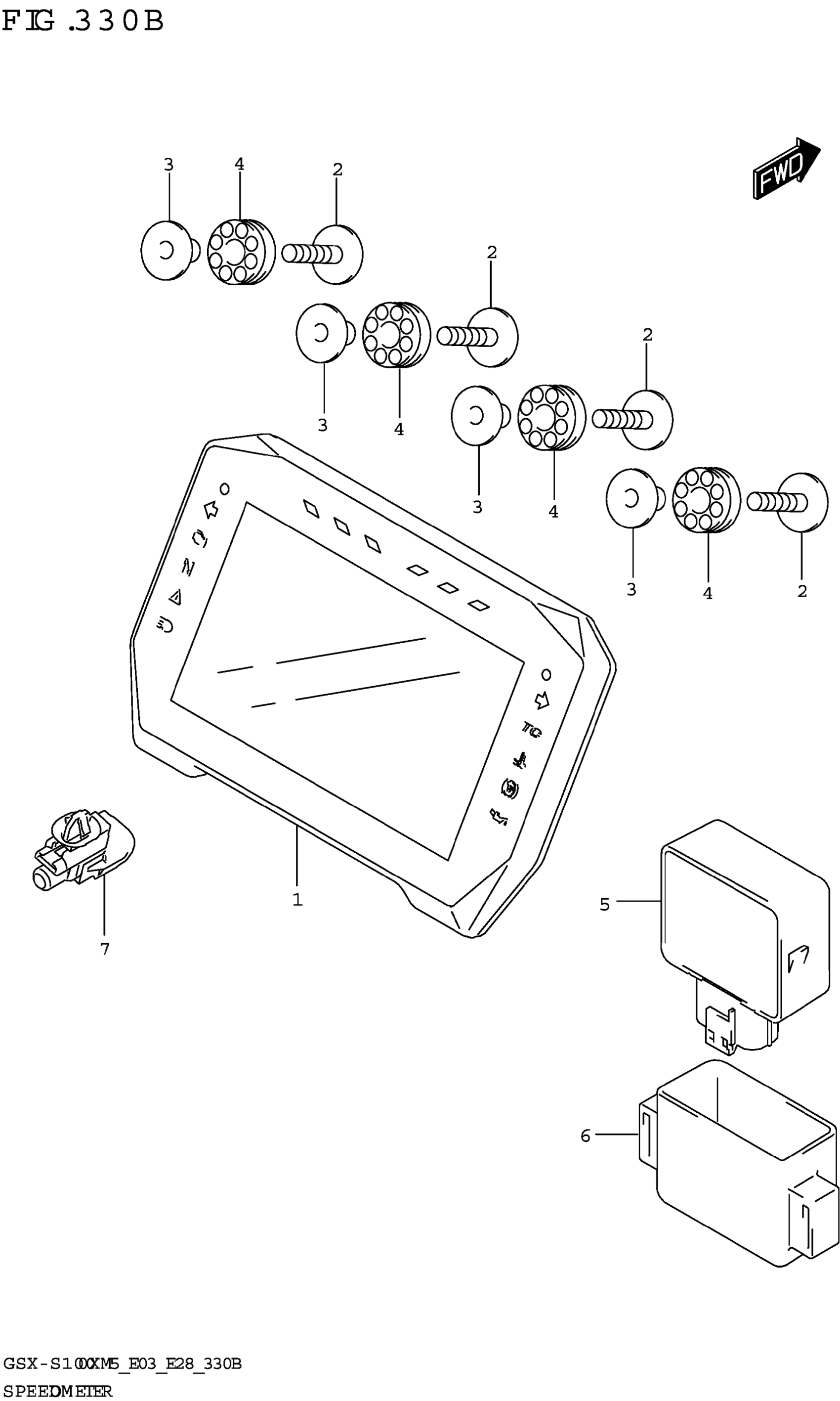

Suzuki GSX-S1000XRREM5 (2025) SPEEDOMETER (E03,E33) Diagram

#

Description

Price

1

SPEEDOMETER ASSY

34100-48KG0

$838.80

2

BOLT

09116-05030

$3.26

3

SPACER,SPEEDOMETER

34187-48K01

$3.98

4

CUSHION,SPEEDOMETER

34955-10L00

$3.52

5

CONTROL UNIT, LIN

36770-48K00

$288.32

6

PROTECTOR, LIN CONTROL UNIT

36771-48K00

$12.62

7

SENSOR,AIR TEMP

95643-58J00

$50.50
