Description

Price

1

SEAT ASSY (BLACK)

45100-48K20-B8Q

$177.38

2

CUSHION

09329-10001

$2.12

3

.CUSHION

09321-10011

$2.91

4

.CUSHION,SEAT MOUNT

45148-04K00

$6.47

5

SCREW (6X20)

09139-06193

$4.24

6

BRACKET, SEAT

45120-48K00

$15.70

7

BOLT

01550-0612A

$1.97

8

SEAT ASSY,PILLION (BLACK)

45300-48K50-B8Q

$158.28

9

NUT (6X12)

08316-1006A

$2.19

10

.CUSHION

45148-20G90

$5.55

11

.STRIKER,SEAT LOCK

45212-18K00

$9.63

12

.CUSHION, SEAT MOUNT RR

45148-20G00

$9.22

13

BRACKET,STRIKER SUPPORT

45220-04K20

$31.88

14

NUT (6X12)

08316-1006A

$2.19

15

CABLE,SEAT LOCK

45280-48K20

$18.95

16

LOCK SET,SEAT

95700-14810

$107.30

17

PLATE,SEAT LOCK ASSY

45289-11F00

$6.20

18

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.36

19

CLAMP

09403-05319

$2.03

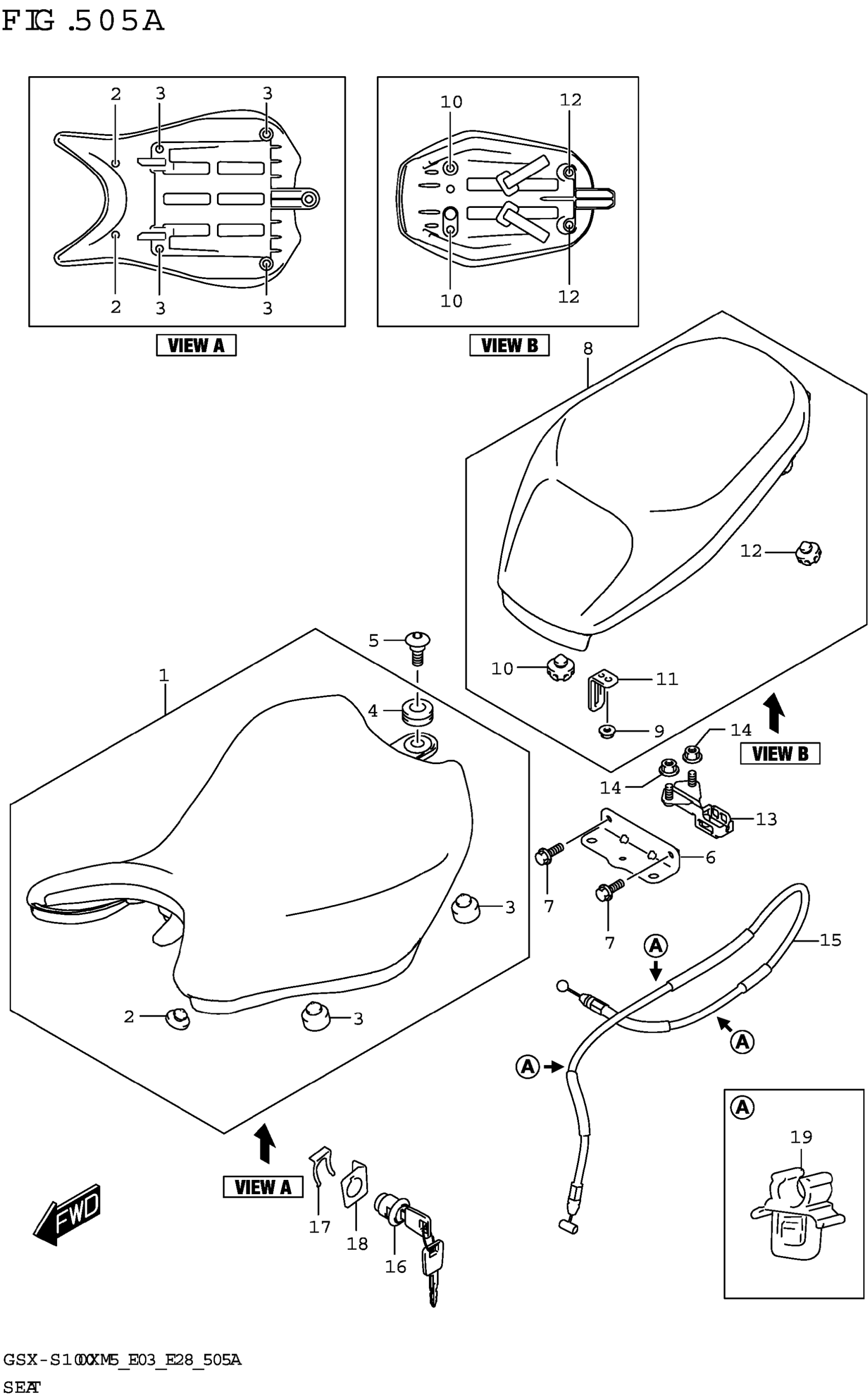

Suzuki GSX-S1000XRREM5 (2025) SEAT Diagram

SEAT ASSY (BLACK)

CUSHION

.CUSHION

.CUSHION,SEAT MOUNT

SCREW (6X20)

BRACKET, SEAT

BOLT

SEAT ASSY,PILLION (BLACK)

NUT (6X12)

.CUSHION

.STRIKER,SEAT LOCK

.CUSHION, SEAT MOUNT RR

BRACKET,STRIKER SUPPORT

NUT (6X12)

CABLE,SEAT LOCK

LOCK SET,SEAT

PLATE,SEAT LOCK ASSY

GUIDE,SEAT LOCK CABLE

CLAMP
