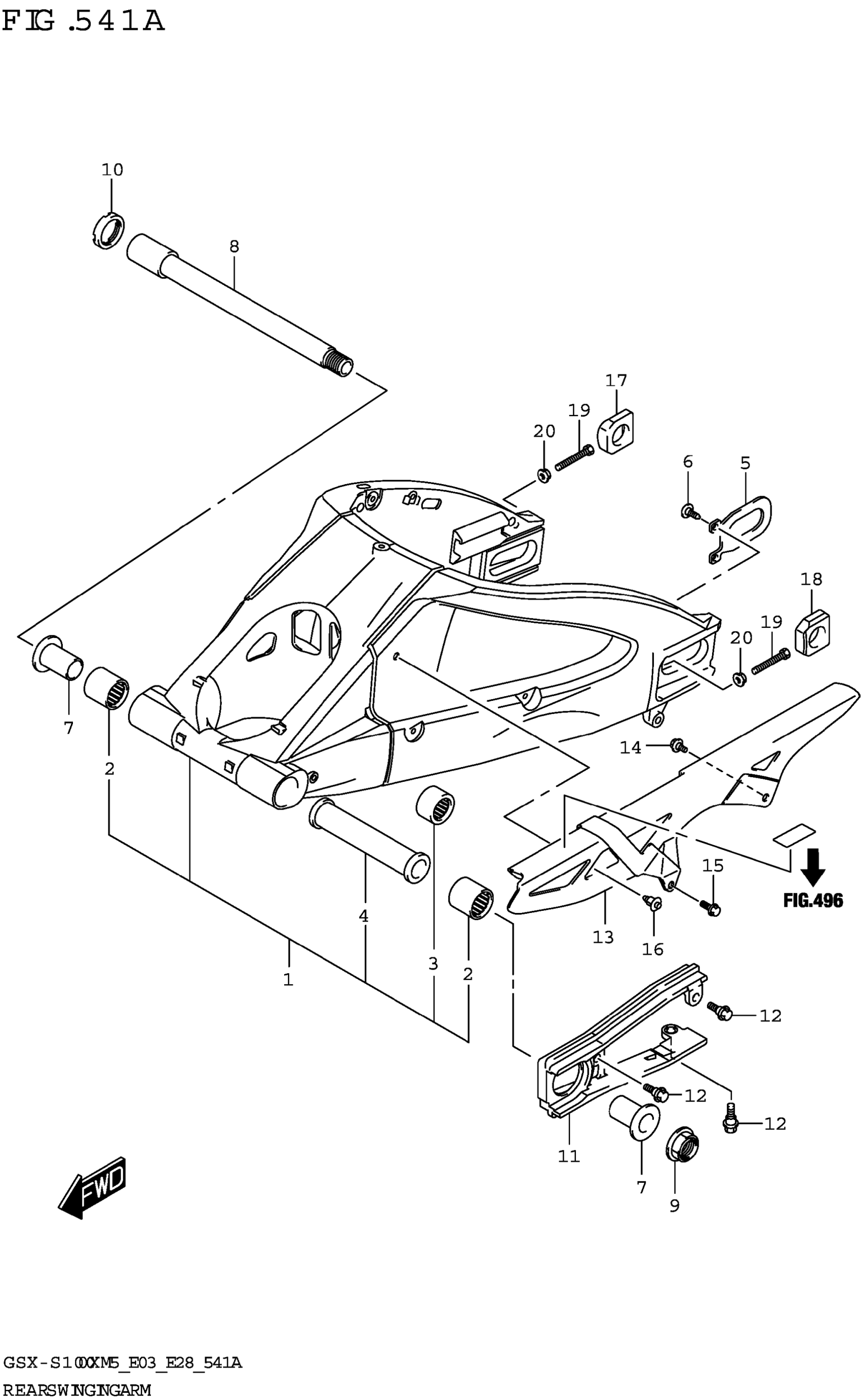

Suzuki GSX-S1000XRREM5 (2025) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY, REAR (BLACK

61000-47H21-YAP

$2,169.97

2

.BEARING (27X35X35)

09263-27015

$24.86

3

.BEARING

09263-20116

$28.11

4

.SPACER,RR SWG PVT CTR

61281-41G00

$62.83

5

PLATE,RR SWGARM BRKT

61124-41G00

$9.87

6

SCREW (6X12)

09125-06060

$1.95

7

SPACER,RR SWGARM PIVOT BEARIN

61251-41G00

$36.12

8

SHAFT,RR SWINGINGARM PIVOT

61211-01H00

$192.08

9

NUT

09159-20006

$34.67

10

NUT,RR SWGARM PIVOT BOLT

61214-42E10

$48.00

11

BUFFER,CHAIN TOUCH DEFENSE

61273-48K00

$34.83

12

SCREW (6X17.8)

09139-06226

$3.67

13

CASE, CHAIN

61310-04K00

$45.25

14

SCREW (6X16)

09139-06214

$2.62

15

BOLT (6X12)

09139-06225

$2.80

16

CLIP (7.6X25.7)

09409-08308

$1.97

17

ADJUSTER,CHAIN

61445-40F00

$43.20

18

ADJUSTER,CHAIN

61446-40F00

$43.20

19

BOLT (8X50)

09100-08287

$2.80

20

NUT

08316-1008A

$2.47
